XSU 080188 CROSSED ROLLER BEARING

Bearing No. Dimensionsmm Basic loading rates(kN) Weight
d D B da Da Ca Coa Cr Cor kg
XSU 080188 150 225 25.4 179 194 71 275 46 110 3.7

Description

As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

XSU 080188 crossed roller bearing specification

  1. Model Code: XSU series is mounting holed type high rigidity of crossed roller bearing with separator.
  2. Outer Diameter: 225 (unit: mm).
  3. Bore Diameter:   150 (unit: mm).
  4. Width: 25.4 (unit: mm).
  5. Weight: 3.7 KG
  6. Mounting Holes: (a)Inner rings/PCD 160 mm,mounting holes 16-φ6.8 through φ11 counter bore depth 6.8mm.(b)Outer rings/PCD 210 mm,mounting holes 16-φ6.8 through φ11 counter bore depth 6.8mm.
  7. Seal Symbol:Sealed on both sides.
  8. Accuracy class: Including P0,P6,P5
Bearing No. Dimensionsmm Weight
d D B da Da kg
XSU 080188 150 225 25.4 179 194 3.7
Basic loading rates(kN) Fixing screws Limiting speeds
Ca Coa Cr Cor Fr perm(kN) min-1
71 275 46 110 10.9 203

Similar products of XSU 080188 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No.
XSU080188 XSU080188 VSP XSU080188 VSP RR XSU080188 RR
XSU080188 RL0 XSU080188 RL0 VSP XSU080188 RL0 RR XSU080188 RL0 VSP RR

How to ensure quality of  crossed roller bearing

Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

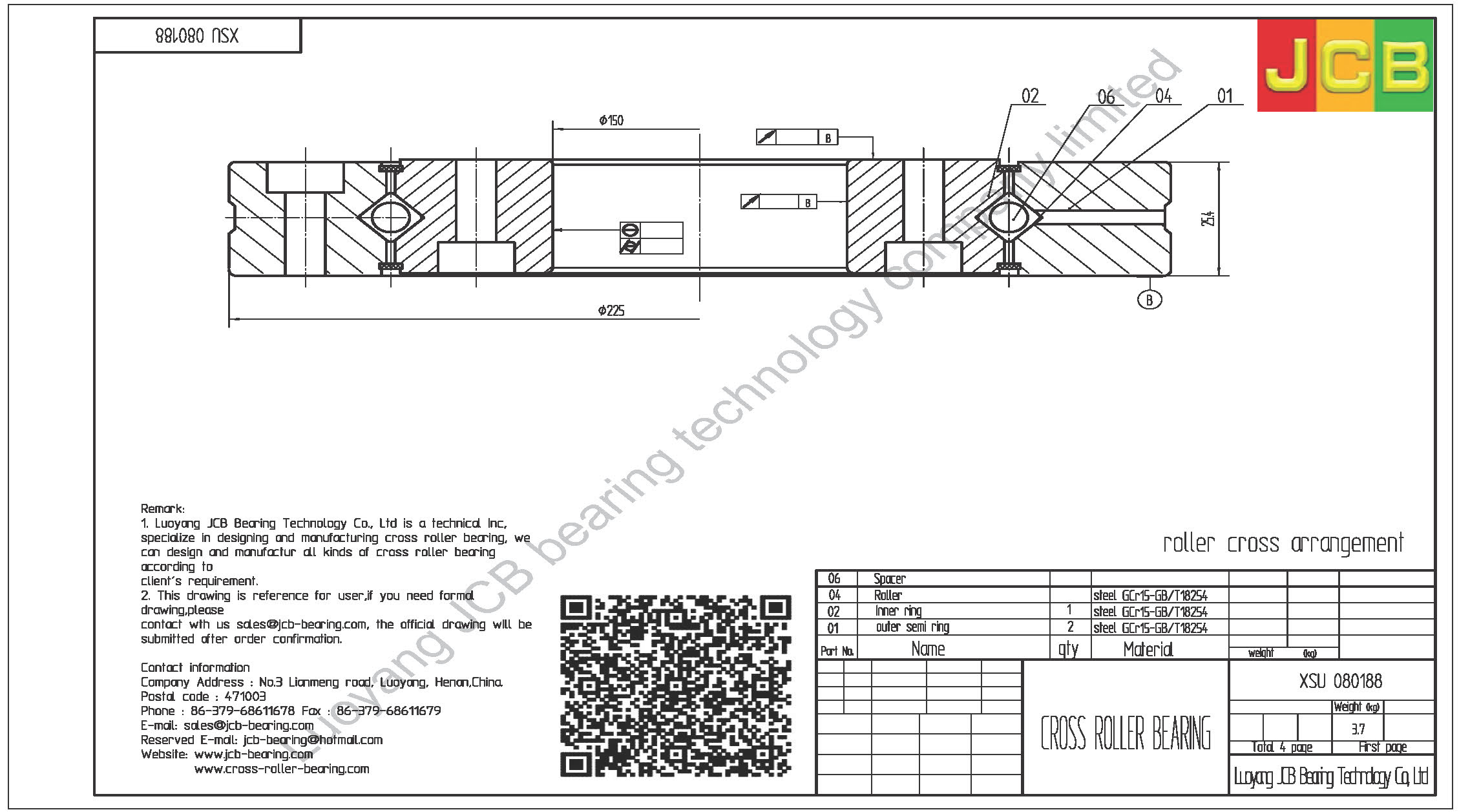

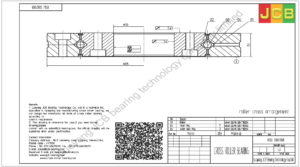

XSU 080188 INA CROSS ROLLER BEARING

Download : drawing of crossed roller bearing XSU 080188

If you need formal drawing , please contact with us
