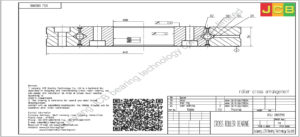

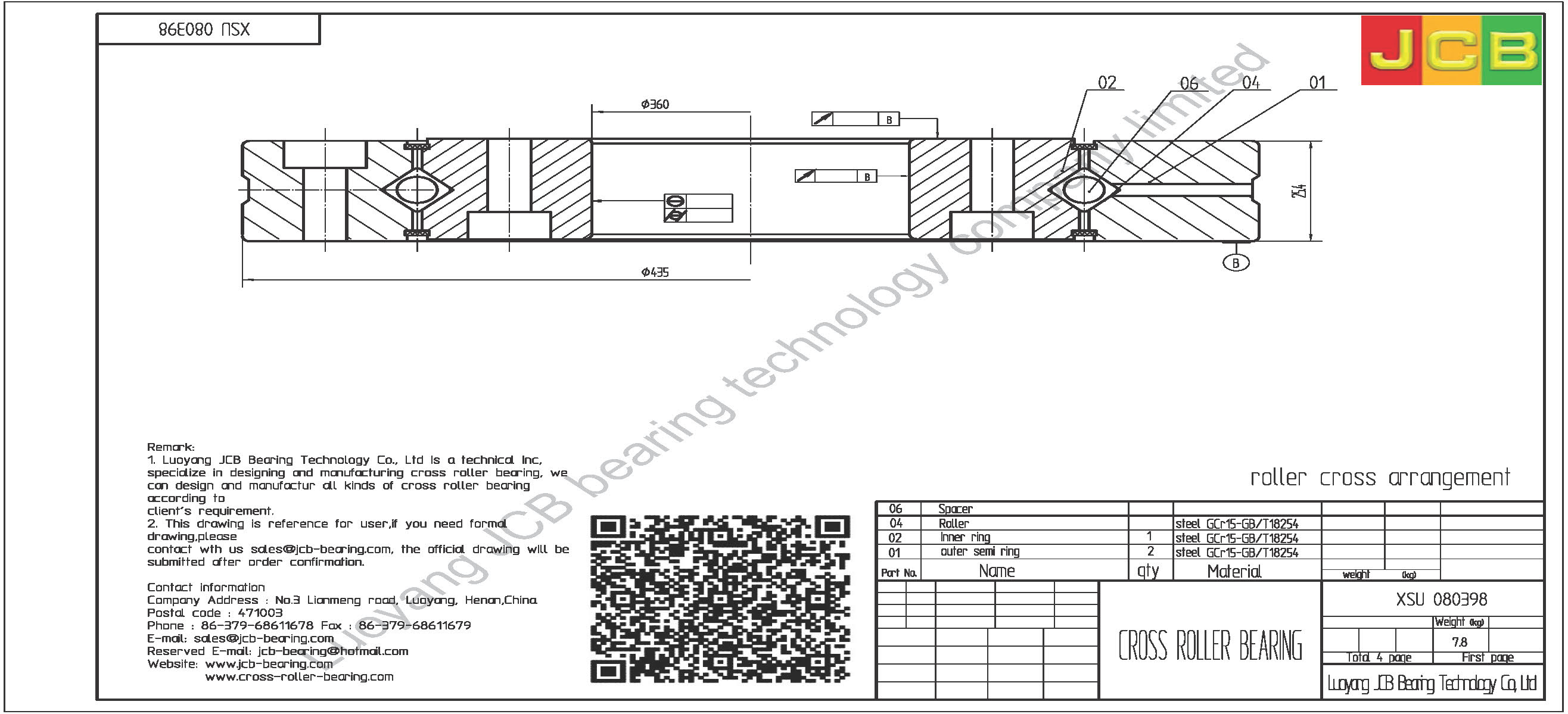

XSU 080398 CROSSED ROLLER BEARING

Bearing No.	Dimensions（mm）					Basic loading rates(kN)				Weight
Bearing No.	d	D	B	da	Da	Ca	Coa	Cr	Cor	kg
XSU 080398	360	435	25.4	389	404	106	590	68	236	7.8

Category: XSU SERIES CROSSED ROLLER BEARING

Description

Description

As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

XSU 080398 crossed roller bearing specification

Model Code: XSU series is mounting holed type high rigidity of crossed roller bearing with separator.
Outer Diameter: 435 (unit: mm).
Bore Diameter: 360 (unit: mm).
Width: 25.4 (unit: mm).
Weight: 7.8 KG
Mounting Holes: (a)Inner rings/PCD 375mm,mounting holes 36-φ6.8 through φ11 counter bore depth 6.8mm.(b)Outer rings/PCD 420 mm,mounting holes 36-φ6.8 through φ11 counter bore depth 6.8mm.
Seal Symbol:Sealed on both sides.
Accuracy class: Including P0,P6,P5

Bearing No.	Dimensions（mm）					Weight
Bearing No.	d	D	B	da	Da	kg
XSU 080398	360	435	25.4	389	404	7.8

Basic loading rates(kN)				Fixing screws	Limiting speeds
Ca	Coa	Cr	Cor	Fr perm(kN)	min-1
106	590	68	236	24.5	96

Similar products of XSU 080398 crossed roller bearing

Bearing No.	Bearing No.	Bearing No.	Bearing No.
XSU080398	XSU080398 VSP	XSU080398 VSP RR	XSU080398 RR
XSU080398 RL0	XSU080398 RL0 VSP	XSU080398 RL0 RR	XSU080398 RL0 VSP RR

How to ensure quality of crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.
