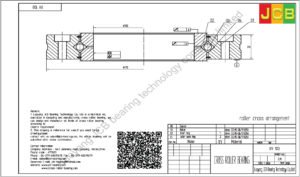

XV 100 CROSSED ROLLER BEARING

Bearing No.	Boundary dim.（mm）					Basic loading rates(kN)				Weight
Bearing No.	d	D	B	da	Da	Ca	Coa	Cr	Cor	kg
XV 100	100	170	23	116.5	117.5	54	163	34.4	65	2.31

Category: XV SERIES CROSSED ROLLER BEARING

Description

Description

As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

XV 100 crossed roller bearing specification

Model Code: XV series is mounting holed type split inner ring of crossed roller bearing with separator.
Outer Diameter: 170 (unit: mm).
Bore Diameter: 100 (unit: mm).
Width: 23 (unit: mm).
Weight: 2.31 KG
Mounting Holes: (a)Inner rings/withou mounting holes.(b)Outer rings/PCD 150 mm,mounting holes 16-φ9 through φ15 counter bore depth 8.5 mm.
Seal Symbol:Sealed on both sides.
Accuracy class: Including P0,P6,P5

Bearing No.	Boundary dim.（mm）					Weight
Bearing No.	d	D	B	da	Da	kg
XV 100	100	170	23	116.5	117.5	2.31

Basic loading rates(kN)				Fixing screws	Limiting speeds with preload	Limiting speeds with clearance
Ca	Coa	Cr	Cor	Fr perm(kN)	min-1	min-1
54	163	34.4	65	28.2	326	653

Similar products of XV 100 crossed roller bearing

Bearing No.	Bearing No.	Bearing No.	Bearing No.
XV100	XV100 VSP	XV100 VSP RR	XV100 RR
XV100 RL0	XV100 RL0 VSP	XV100 RL0 RR	XV100 RL0 VSP RR

How to ensure quality of crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.
