SX 01 1860 CROSSED ROLLER BEARING

Designation Dimensions Weight
d D B da Da Rs min S kg
SX 01 1860 300 380 38 339.2 340.8 2.1 2.5 12

Description

As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

SX 01 1860 crossed roller bearing specification

  1. Model Code: SX series is outer ring circumferentially split and held together by three retaining rings of crossed roller bearing.
  2. Outer Diameter: 380 (unit: mm).
  3. Bore Diameter:   300 (unit: mm).
  4. Width: 38 (unit: mm).
  5. Weight: 12 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol:No sealed.
  8. Accuracy class: Including P0,P6,P5, P4
Designation Dimensions Weight
d D B da Da Rs min S kg
SX 01 1860 300 380 38 339.2 340.8 2.1 2.5 12
Basic loading rates(kN) Limiting speeds with standard clearance min. Limiting speeds with preload min.
Ca Coa Cr Cor oil grease oil grease
245 1027 156 504 450 225 225 110
radial clearance axial tilting clearance Low clearance RLO max. preload VSP Running accuracy relative to raceway
min. max. min. max. radial preload min. max. radial axial
0.01 0.04 0.02 0.08 0.005 0.010 0.005 0.025 0.020 0.010

Similar products of SX 01 1860 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No.
SX011860 SX011860 VSP SX011860 VSP RR SX011860 RR
SX011860 RL0 SX011860 RL0 VSP SX011860 RL0 RR SX011860 RL0 VSP RR

How to ensure quality of  crossed roller bearing

Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

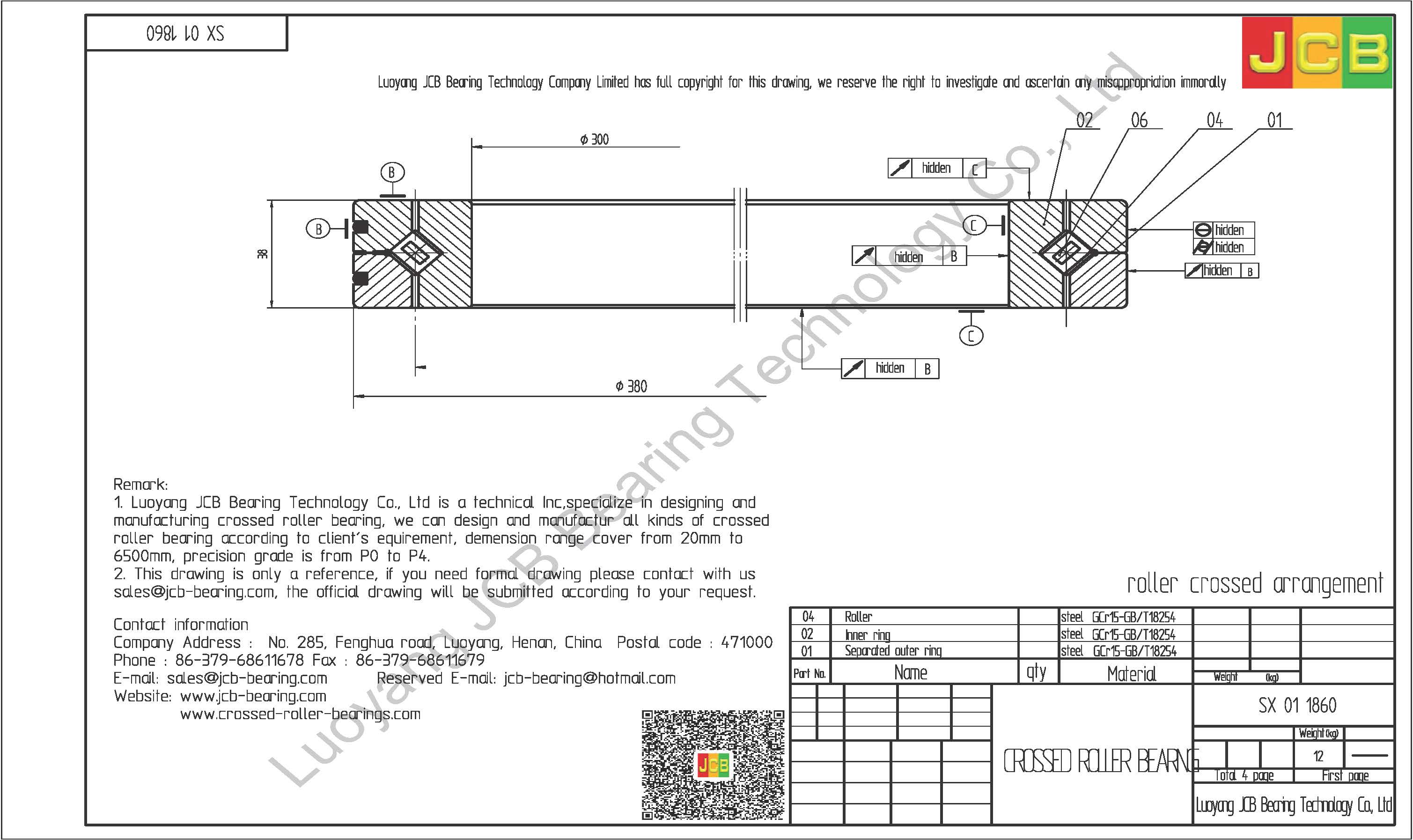

SX 01 1860 INA CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing SX 01 1860

If you need formal drawing , please contact with us
