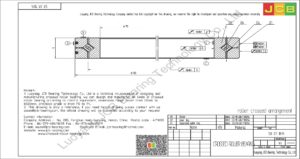

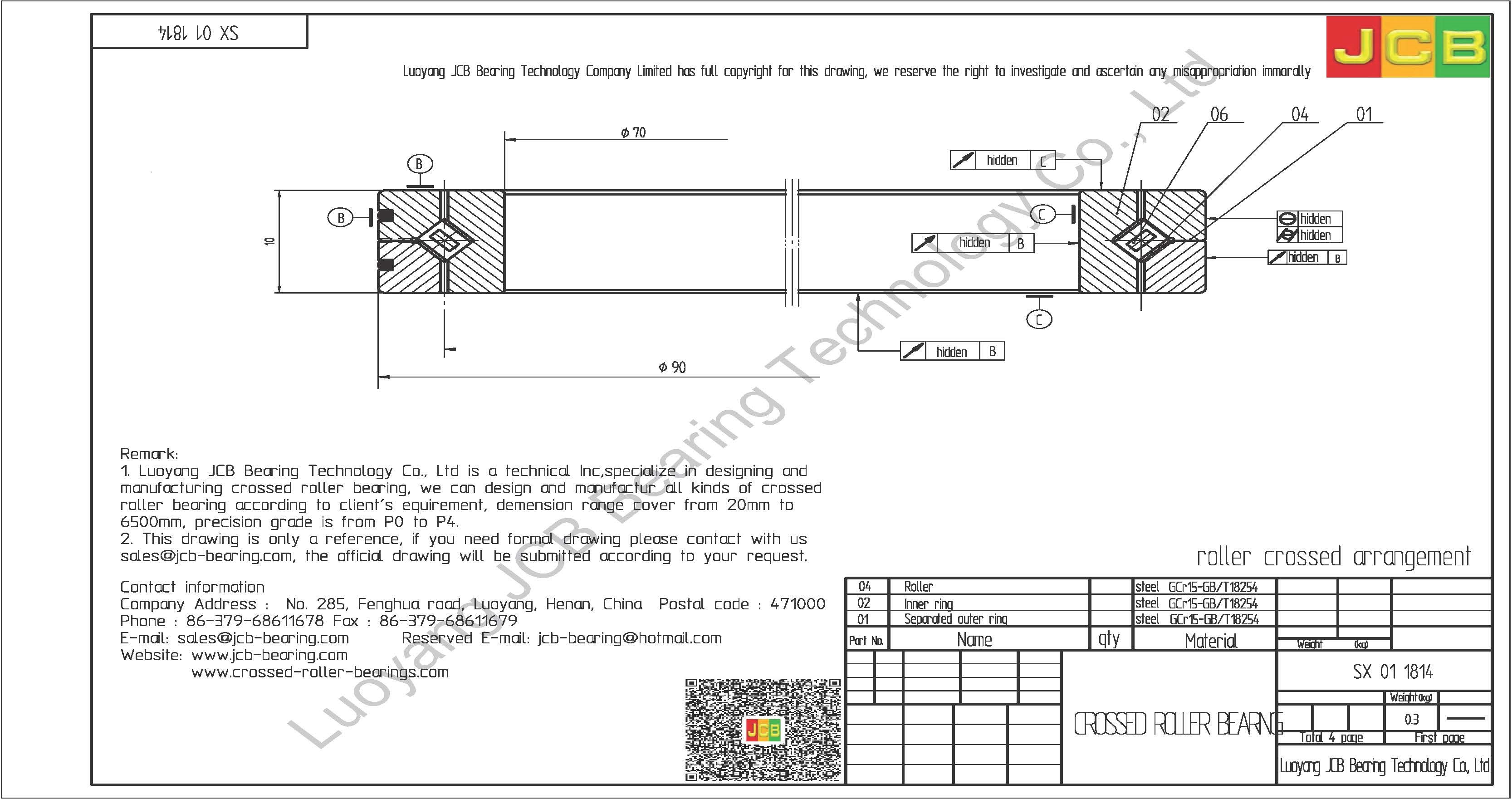

SX 01 1814 CROSSED ROLLER BEARING

Designation	Dimensions							Weight
Designation	d	D	B	da	Da	Rs min	S	kg
SX 01 1814	70	90	10	79.5	80.5	0.6	1.2	0.3

Category: SX SERIES CROSSED ROLLER BEARING

Description

Description

As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

SX 01 1814 crossed roller bearing specification

Model Code: SX series is outer ring circumferentially split and held together by three retaining rings of crossed roller bearing.
Outer Diameter: 90 (unit: mm).
Bore Diameter: 70 (unit: mm).
Width: 10 (unit: mm).
Weight: 0.3 KG
Mounting Holes: without mounting holes.
Seal Symbol:No sealed.
Accuracy class: Including P0,P6,P5, P4

Designation	Dimensions							Weight
Designation	d	D	B	da	Da	Rs min	S	kg
SX 01 1814	70	90	10	79.5	80.5	0.6	1.2	0.3

Basic loading rates(kN)				Limiting speeds with standard clearance min.		Limiting speeds with preload min.
Ca	Coa	Cr	Cor	oil	grease	oil	grease
18	60	12	30	1910	955	955	475

radial clearance		axial tilting clearance		Low clearance RLO max.		preload VSP		Running accuracy relative to raceway
min.	max.	min.	max.	radial	preload	min.	max.	radial	axial
0.003	0.015	0.006	0.03	0.003	0.006	0.003	0.015	0.010	0.010

Similar products of SX 01 1814 crossed roller bearing

Bearing No.	Bearing No.	Bearing No.	Bearing No.
SX011814	SX011814 VSP	SX011814 VSP RR	SX011814 RR
SX011814 RL0	SX011814 RL0 VSP	SX011814 RL0 RR	SX011814 RL0 VSP RR

How to ensure quality of crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.
