RE 15025 CROSSED ROLLER BEARING

Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass
d D B rmin a b C Co ds(max) Dh(min) kg
RE 15025 150 210 25 1.5 3.5 2 76.8 128 164 194 3.16

Description

As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

 RE 15025 crossed roller bearing specification

  1. Model Code: RE series is split inner ring type of crossed roller bearings with separators.
  2. Outer Diameter: 210 (unit: mm).
  3. Bore Diameter:   150 (unit: mm).
  4. Width: 25 (unit: mm).
  5. Weight: 3.16 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0,C1.
  9. Accuracy class:Including P0,P6,PE6,P5,PE5,P4,PE4,P2,PE2.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0 C1
Above Or less Min. Max. Min. Max. Min. Max.
18 30 -8 0 0 15 15 35
30 50 -8 0 0 25 25 50
50 80 -10 0 0 30 30 60
80 120 -10 0 0 40 40 70
120 140 -10 0 0 40 40 80
140 160 -10 0 0 40 40 90
160 180 -10 0 0 50 50 100
180 200 -10 0 0 50 50 110
200 225 -10 0 0 60 60 120
225 250 -10 0 0 60 60 130
250 280 -15 0 0 80 80 150
280 315 -15 0 30 100 100 170
315 355 -15 0 30 110 110 190
355 400 -15 0 30 120 120 210
400 450 -20 0 30 130 130 230
450 500 -20 0 30 130 130 250
500 560 -20 0 30 150 150 280
560 630 -20 0 40 170 170 310
630 710 -20 0 40 190 190 350
710 800 -30 0 40 210 210 390
800 900 -30 0 40 230 230 430
900 1000 -30 0 50 260 260 480
1000 1120 -30 0 60 290 290 530
1120 1250 -30 0 60 320 320 580
1250 1400 -30 0 70 350 350 630

Similar products of RE 15025 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
RE15025 CC0 RE15025 C0 RE15025 C1 RE15025 UU CC0 RE15025 UU C0 RE15025 UU C1
RE15025 CC0 P6 RE15025 C0 P6 RE15025 C1 P6 RE15025 UU CC0 P6 RE15025 UU C0 P6 RE15025 UU C1 P6
RE15025 CC0 P5 RE15025 C0 P5 RE15025 C1 P5 RE15025 UU CC0 P5 RE15025 UU C0 P5 RE15025 UU C1 P5
RE15025 CC0 P4 RE15025 C0 P4 RE15025 C1 P4 RE15025 UU CC0 P4 RE15025 UU C0 P4 RE15025 UU C1 P4
RE15025 CC0 P2 RE15025 C0 P2 RE15025 C1 P2 RE15025 UU CC0 P2 RE15025 UU C0 P2 RE15025 UU C1 P2
RE15025 CC0 PE6 RE15025 C0 PE6 RE15025 C1 PE6 RE15025 UU CC0 PE6 RE15025 UU C0 PE6 RE15025 UU C1 PE6
RE15025 CC0 PE5 RE15025 C0 PE5 RE15025 C1 PE5 RE15025 UU CC0 PE5 RE15025 UU C0 PE5 RE15025 UU C1 PE5
RE15025 CC0 PE4 RE15025 C0 PE4 RE15025 C1 PE4 RE15025 UU CC0 PE4 RE15025 UU C0 PE4 RE15025 UU C1 PE4
RE15025 CC0 PE2 RE15025 C0 PE2 RE15025 C1 PE2 RE15025 UU CC0 PE2 RE15025 UU C0 PE2 RE15025 UU C1 PE2

How to ensure quality of  crossed roller bearing

Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

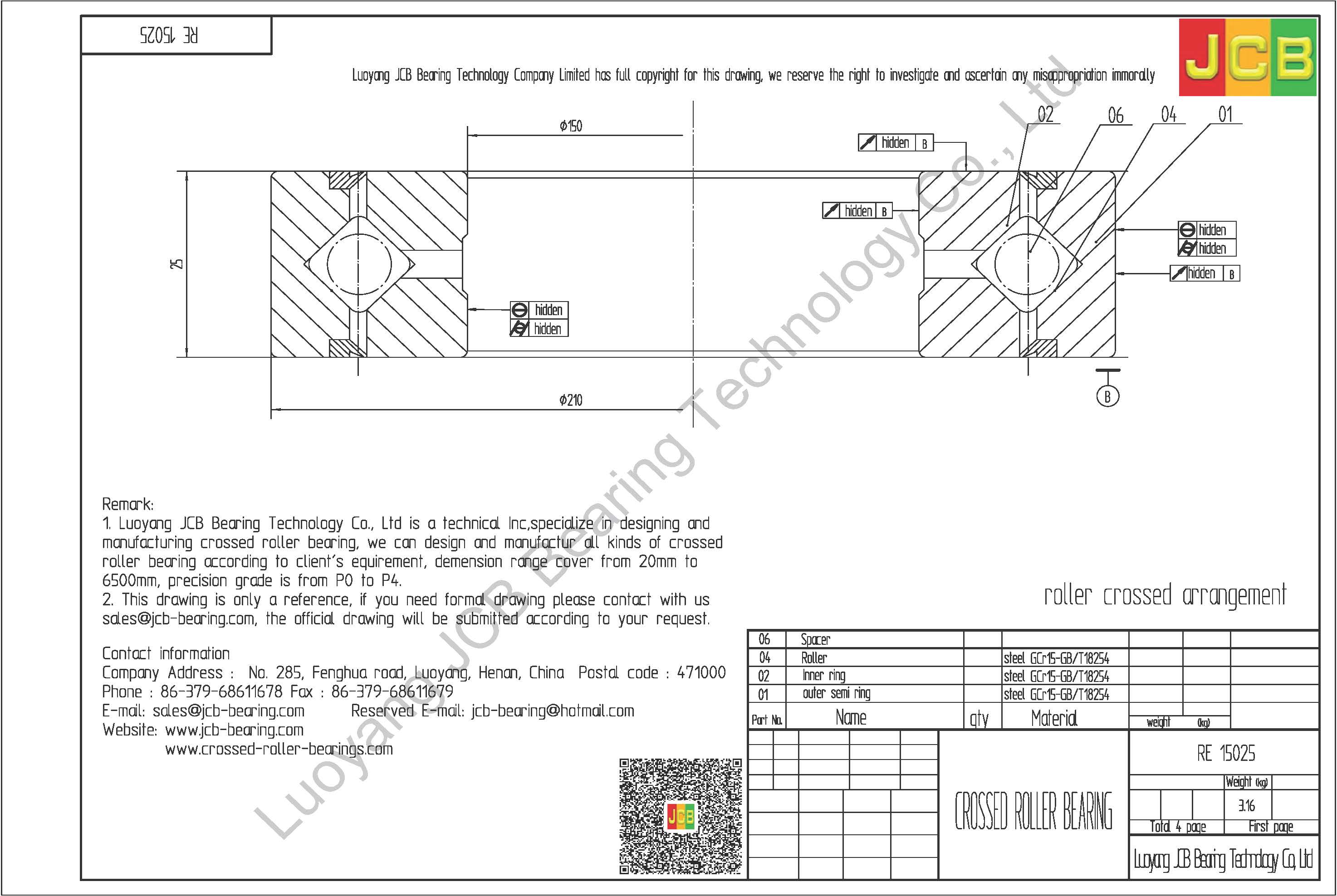

RE 15025 THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RE 15025

If you need formal drawing , please contact with us
