PSX 220 08 CROSSED ROLLER BEARING

Bearing No. Bearing dim.mm Mass Basic loading rates(kN) Limiting speeds(min-1)
d D B kg Ca Coa Cr Cor Bearing play Preload
PSX 220 08 220 236 8 0.29 10.3 81 7.3 32.5 340 170

Description

As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

PSX 220 08 crossed roller bearing specification

  1. Model Code: PSX series is split outer ring type of crossed roller bearing with cage.
  2. Outer Diameter: 236 (unit: mm).
  3. Bore Diameter:   220 (unit: mm).
  4. Width: 8 (unit: mm).
  5. Weight: 0.29 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: Sealed on both sides.
  8. Material:Stainless steel X46Cr13
  9. Accuracy class: Including P0,P6,P5

Similar products of PSX 220 08 crossed roller bearing

Bearing No.



How to ensure quality of  crossed roller bearing

Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

PSX 220 08 KMF CROSSED ROLLER BEARING

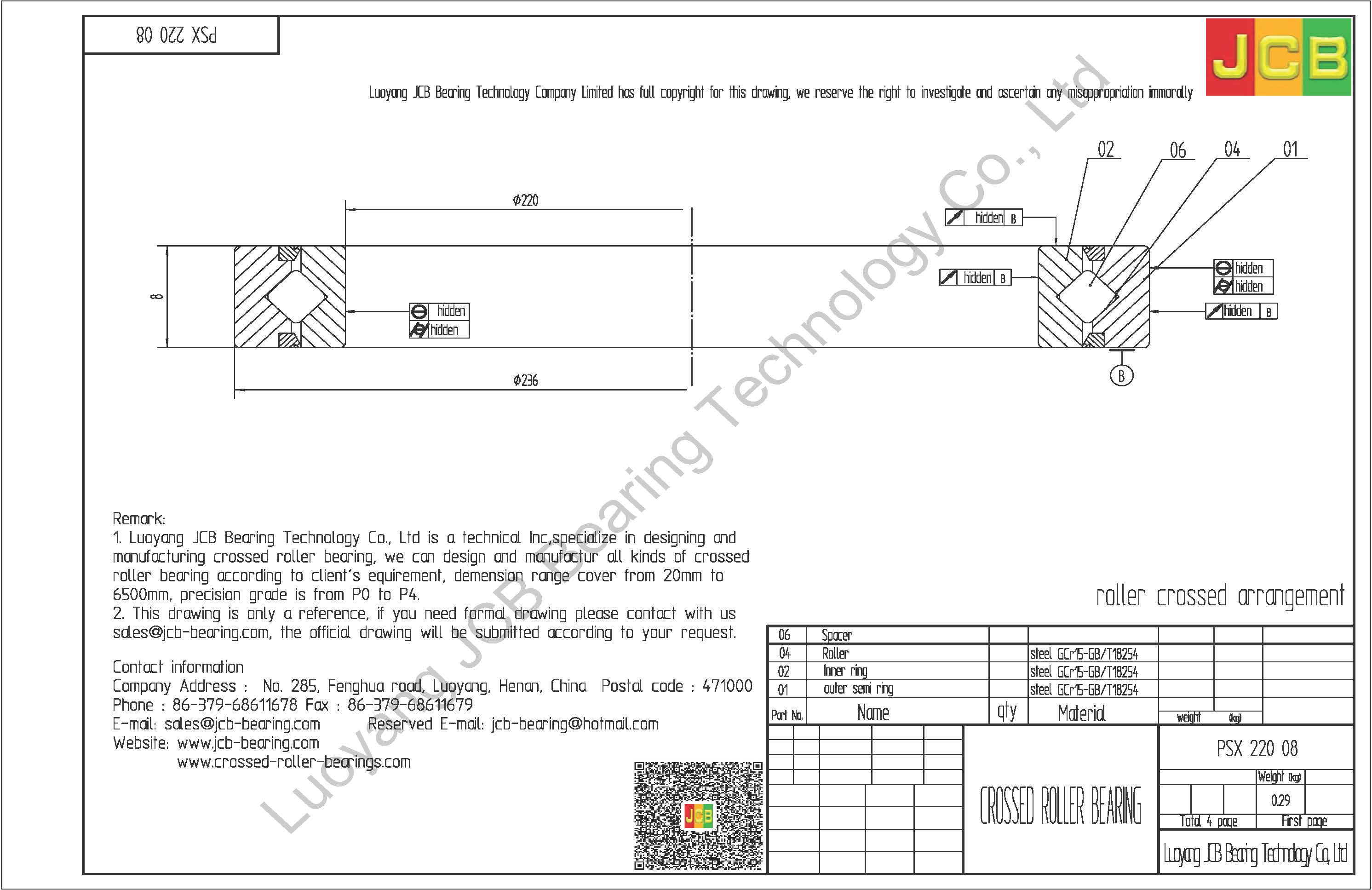

Download : drawing of crossed roller bearing PSX 220 08

If you need formal drawing , please contact with us
