CRBS 1308 CROSSED ROLLER BEARING
Bearing No. | Boundary dim.(mm) | Basic loading rates(N) | Mounting dimensions(mm) | Weight | |||||
d | D | B | rmin | C | Co | da | Da | g | |
CRBS 1308 | 130 | 146 | 8 | 0.4 | 7860 | 15300 | 134 | 141 | 199 |
Description
As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.
CRBS 1308 crossed roller bearing specification
- Model Code: CRBS series is slim type of crossed roller bearing with cage.
- Outer Diameter: 146 (unit: mm).
- Bore Diameter: 130 (unit: mm).
- Width: 8 (unit: mm).
- Weight: 199 G
- Mounting Holes: without mounting holes.
- Seal Symbol: UU signifies seals on both sides.(U signifies seal on one side.)
- Radial internal clearance: T1,C1
- Accuracy class: Including P0
Radial internal clearance
Nominal bore diameter of bearing | T1(μm) | C1(μm) | C2(μm) | |||
mm | Min. | Max. | Min. | Max. | Min. | Max. |
50 | -8 | 0 | 0 | 15 | 30 | 56 |
60 | -8 | 0 | 0 | 15 | 30 | 56 |
70 | -8 | 0 | 0 | 15 | 30 | 56 |
80 | -8 | 0 | 0 | 15 | 41 | 66 |
90 | -8 | 0 | 0 | 15 | 41 | 66 |
100 | -8 | 0 | 0 | 15 | 41 | 66 |
110 | -8 | 0 | 0 | 15 | 41 | 66 |
120 | -8 | 0 | 0 | 15 | 51 | 76 |
130 | -8 | 0 | 0 | 15 | 51 | 76 |
140 | -8 | 0 | 0 | 15 | 51 | 76 |
150 | -8 | 0 | 0 | 15 | 51 | 76 |
160 | -10 | 0 | 0 | 20 | 51 | 76 |
170 | -10 | 0 | 0 | 20 | 51 | 76 |
180 | -10 | 0 | 0 | 20 | 61 | 86 |
190 | -10 | 0 | 0 | 20 | 61 | 86 |
200 | -10 | 0 | 0 | 20 | 61 | 86 |
Similar products of CRBS 1308 A crossed roller bearing
Bearing No. | CRBS1308 | CRBS1308 T1 | CRBS1308 C1 |
How to ensure quality of crossed roller bearing
–Advanced design
From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.
–Advanced equipment
Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.
–Reliable raw materials
The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.
–Perfect management system
We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.
–Perfect testing method
We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

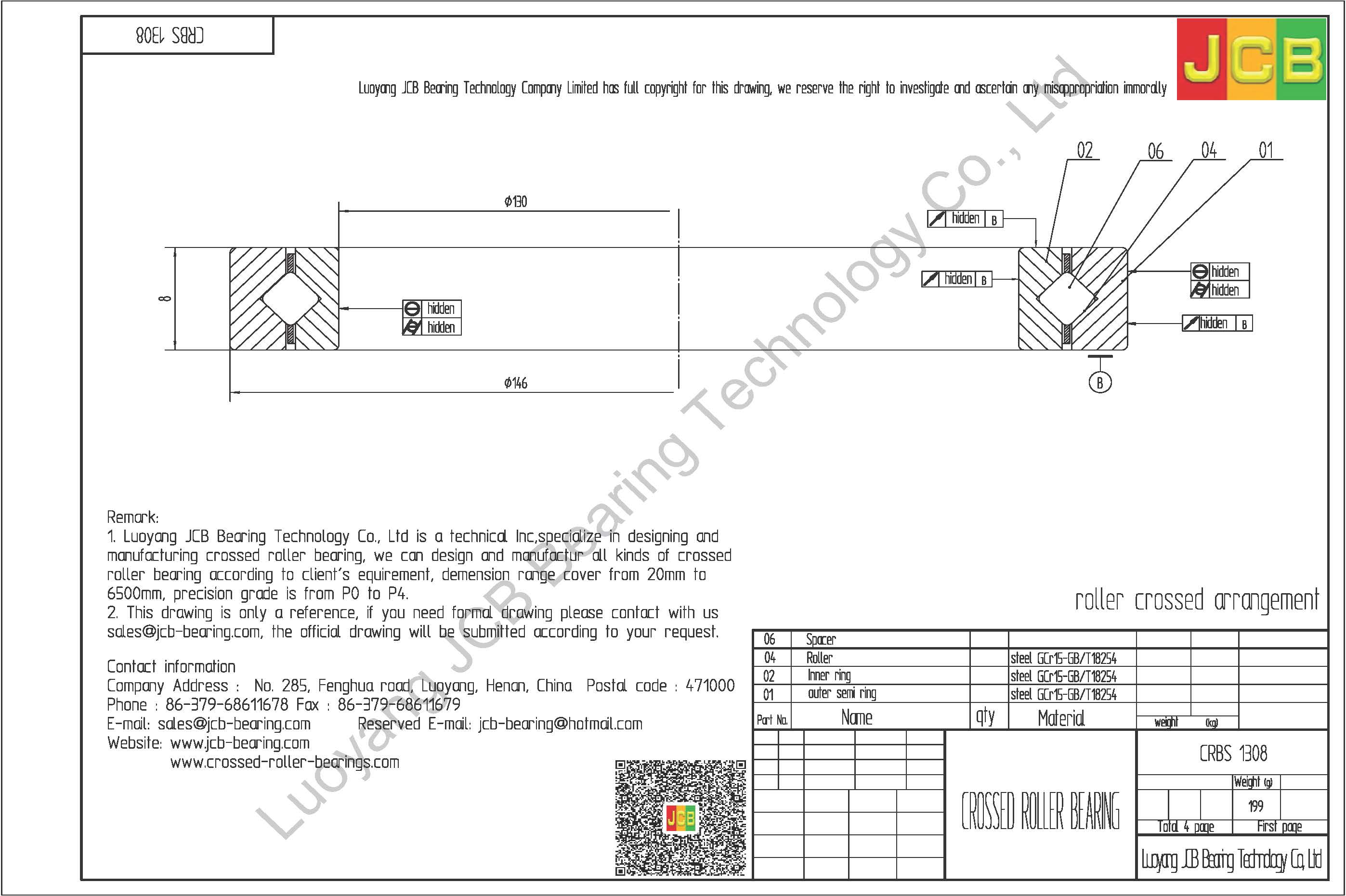

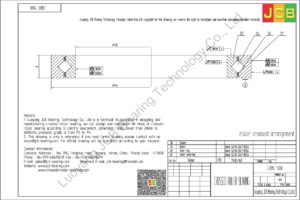

Download : drawing of crossed roller bearing CRBS 1308
If you need formal drawing , please contact with us
