CRBHV 15025 A UU CROSSED ROLLER BEARING

Bearing No. Boundary dim.mm Basic loading rates(N) Mounting dimensions(mm) Weight
d D B rmin C Co da Da kg
CRBHV 15025AUU 150 210 25 1 84300 138000 162 198 3.16

Description

As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

CRBHV 15025 A UU crossed roller bearing specification

  1. Model Code: CRBHV…A series is high rigidity type of crossed roller bearing V with separator.
  2. Outer Diameter: 210 (unit: mm).
  3. Bore Diameter:   150 (unit: mm).
  4. Width: 25 (unit: mm).
  5. Weight: 3.16 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.( UU signifies seals on both sides. U signifies seal on one side.UD signifies seal on one side  in the opposite direction to counter bored mounting holes on outer ring.)
  8. Axial internal clearance: T1,C1,C2
  9. Accuracy class: Including P6,P5, P4, P2

Radial internal clearance

Nominal bore diameter of bearing(mm) T1(μm) C1(μm) C2(μm)
over incl. Min. Max. Min. Max. Min. Max.
20 -10 0 0 10 10 20
20 25 -10 0 0 10 10 20
25 35 -10 0 0 10 10 25
35 45 -10 0 0 10 10 25
45 65 -10 0 0 15 15 30
65 80 -10 0 0 15 15 35
80 95 -15 0 0 15 15 35
95 110 -15 0 0 20 20 45
110 125 -15 0 0 20 20 50

Similar products of CRBHV 15025 A UU crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
CRBHV15025 A T1 CRBHV15025 A T1 P6 CRBHV15025 A T1 P5 CRBHV15025 A T1 P4 CRBHV15025 A T1 P2
CRBHV15025 A C1 CRBHV15025 A C1 P6 CRBHV15025 A C1 P5 CRBHV15025 A C1 P4 CRBHV15025 A C1 P2
CRBHV15025 A C2 CRBHV15025 A C2 P6 CRBHV15025 A C2 P5 CRBHV15025 A C2 P4 CRBHV15025 A C2 P2
CRBHV15025 A UU T1 CRBHV15025 A UU T1 P6 CRBHV15025 A UU T1 P5 CRBHV15025 A UU T1 P4 CRBHV15025 A UU T1 P2
CRBHV15025 A UU C1 CRBHV15025 A UU C1 P6 CRBHV15025 A UU C1 P5 CRBHV15025 A UU C1 P4 CRBHV15025 A UU C1 P2
CRBHV15025 A UU C2 CRBHV15025 A UU C2 P6 CRBHV15025 A UU C2 P5 CRBHV15025 A UU C2 P4 CRBHV15025 A UU C2 P2

How to ensure quality of  crossed roller bearing

Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

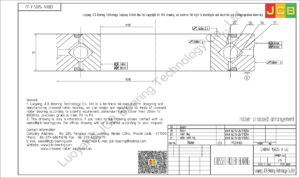

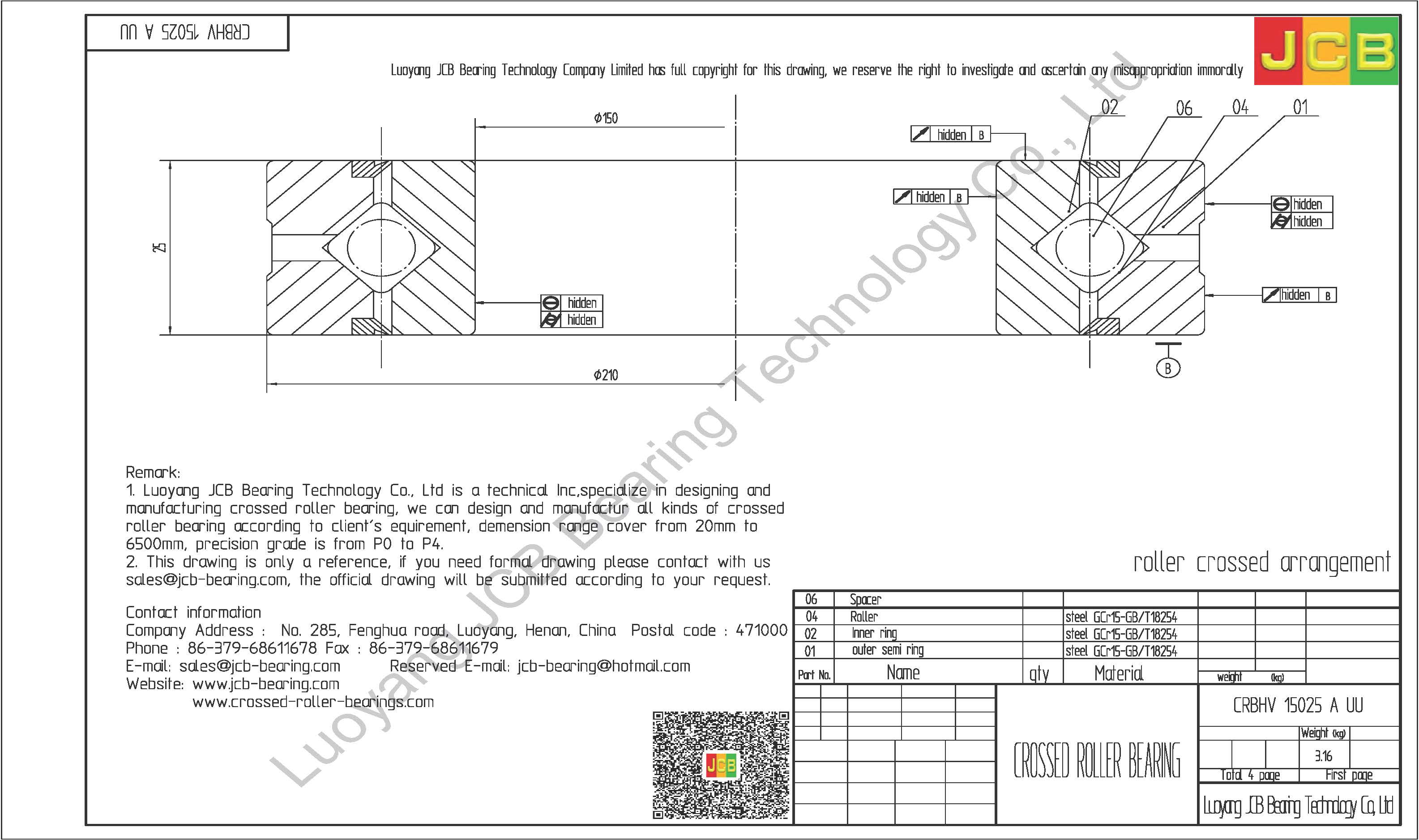

CRBHV 15025 A UU IKO CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing CRBHV 15025 A UU

If you need formal drawing , please contact with us
