CRBFV 8022 AD CROSSED ROLLER BEARING

Bearing No. Boundary dim.mm Basic loading rates(kN) Abutment and fillet dim.(mm) Weight
d D B.T C Co da Da kg
CRBFV 8022AD 80 165 22 51100 72000 107 137 2.6



Description

As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

CRBFV 8022 AD crossed roller bearing specification

  1. Model Code: CRBFV…A series is mounting holed type high rigidity of crossed roller bearing V with separator.
  2. Outer Diameter: 165 (unit: mm).
  3. Bore Diameter:   80 (unit: mm).
  4. Width: 22 (unit: mm).
  5. Weight: 2.6 KG
  6. Mounting Holes: (a)Inner rings/PCD 139mm,mounting holes 12-φ9 through φ14 counter bore depth 13.5mm. (b)Outer rings/PCD 217mm,mounting holes 12-φ9 through φ14 counter bore depth 13.5mm.
  7. Seal Symbol: No symbol signifies the open type without seals.( UU signifies seals on both sides. U signifies seal on one side.UD signifies seal on one side  in the opposite direction to counter bored mounting holes on outer ring.)
  8. Axial internal clearance: T1,C1,C2
  9. Accuracy class: Including P6,P5, P4, P2

Radial internal clearance

Nominal bore diameter of bearing(mm) T1(μm) C1(μm) C2(μm)
over incl. Min. Max. Min. Max. Min. Max.
20 -10 0 0 10 10 20
20 25 -10 0 0 10 10 20
25 35 -10 0 0 10 10 25
35 45 -10 0 0 10 10 25
45 65 -10 0 0 15 15 30
65 80 -10 0 0 15 15 35
80 95 -15 0 0 15 15 35
95 110 -15 0 0 20 20 45
110 125 -15 0 0 20 20 50

Similar products of CRBFV 8022 AD crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
CRBFV8022 AD T1 CRBFV8022 AD T1 P6 CRBFV8022 AD T1 P5 CRBFV8022 AD T1 P4 CRBFV8022 AD T1 P2
CRBFV8022 AD C1 CRBFV8022 AD C1 P6 CRBFV8022 AD C1 P5 CRBFV8022 AD C1 P4 CRBFV8022 AD C1 P2
CRBFV8022 AD C2 CRBFV8022 AD C2 P6 CRBFV8022 AD C2 P5 CRBFV8022 AD C2 P4 CRBFV8022 AD C2 P2
CRBFV8022 AD UU T1 CRBFV8022 AD UU T1 P6 CRBFV8022 AD UU T1 P5 CRBFV8022 AD UU T1 P4 CRBFV8022 AD UU T1 P2
CRBFV8022 AD UU C1 CRBFV8022 AD UU C1 P6 CRBFV8022 AD UU C1 P5 CRBFV8022 AD UU C1 P4 CRBFV8022 AD UU C1 P2
CRBFV8022 AD UU C2 CRBFV8022 AD UU C2 P6 CRBFV8022 AD UU C2 P5 CRBFV8022 AD UU C2 P4 CRBFV8022 AD UU C2 P2

How to ensure quality of  crossed roller bearing

Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

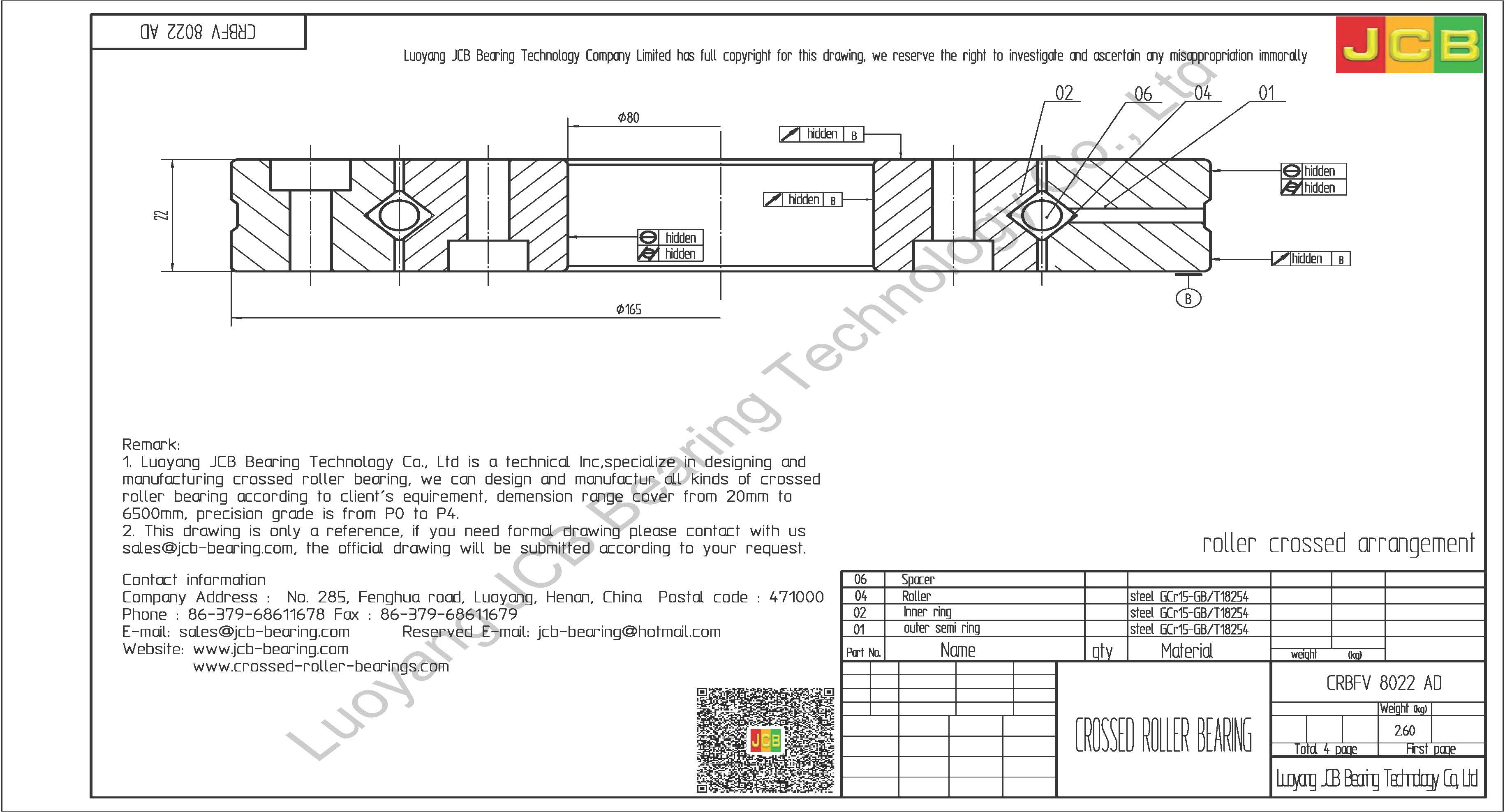

CRBFV 8022 AD IKO CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing CRBFV 8022 AD

If you need formal drawing , please contact with us
