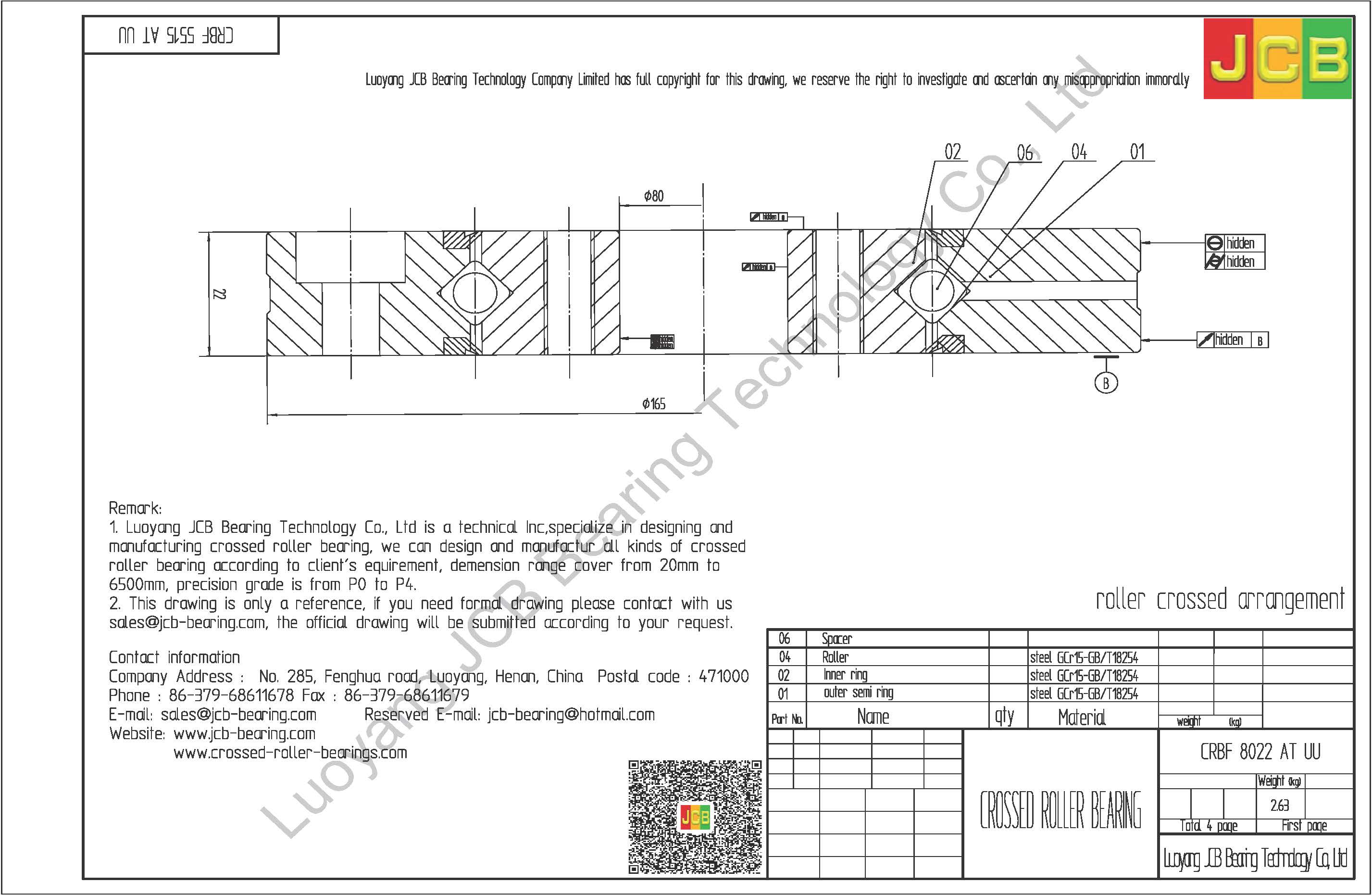

CRBF 8022 AT UU of IKO cross roller bearing
CRBF8022 AT UU CROSS ROLLER BEARING
|Bearing designation||OD||ID||Total height||Weight （KG）|
|CRBF 8022 AT UU||165||80||22||2.63|
We are manufacturer of CRBF 8022 AT UU of IKO cross roller bearing, we only supply top quality IKO cross roller bearing, product quality has been recognized by our end user.
Specification of CRBF 8022 AT UU of IKO cross roller bearing
1. Model Code: CRBF･･･AT Mounting Holed Type High Rigidity Crossed Roller Bearing.
2. Bore Diameter: 80 (unit: mm).
3. Width: 22 (unit: mm).
4. Mounting Holes:
(1) T: With female threaded mounting holes on the inner ring.
(2) No symbol: With counter-bored mounting holes on both inner ring and outer ring in the same direction.
(3) D: With counter-bored mounting holes on both inner ring and outer ring in the opposite direction.
5. Seal Symbol:
(1) No symbol: Open type
(2) UU: Sealed type
(3) U:One side sealed type
(4) UD: One side sealed in the opposite direction to counter bored mounting holes on outer ring.
6. Axial internal clearance:
(1) T1: T1 clearance
(2) C1: C1 clearance
(3) C2: C2 clearance
(4) No symbol: Normal clearance
7. Accuracy class:
(1) No symbol: Accuracy class 0
(2) P6: Accuracy class 6
(3) P5: Accuracy class 5
(4) P4: Accuracy class 4
(5) P2: Accuracy class 2
How to ensure quality of cross roller bearing
From the beginning of design stage, we make a modeling to design cross roller bearing by advanced design software, then use method of finite element analysis to verify the results.
Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.
–Reliable raw materials
The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of cross roller bearing, such as bearing ring and roller etc, we also could provide customize cross roller bearing with special material.
–Perfect management system
We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.
–Perfect testing method
We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for cross roller bearing.
