CRBF 108 AT CROSSED ROLLER BEARING
Bearing No. | Boundary dim.(mm) | Basic loading rates(N) | Abutment and fillet dimensions(mm) | Weight | ||||||
d | D | B.T | r1min | r2min | C | Co | da | Da | kg | |
CRBF 108 AT | 10 | 52 | 8 | 0.3 | 0.3 | 2910 | 2430 | 24 | 31 | 0.12 |
Description
As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.
CRBF 108 AT crossed roller bearing specification
- Model Code: CRBF…A series is mounting holed type high rigidity of crossed roller bearing with separator.
- Outer Diameter: 52 (unit: mm).
- Bore Diameter: 10 (unit: mm).
- Width: 8 (unit: mm).
- Weight: 0.12 KG
- Mounting Holes: (a)Inner rings/PCD 16mm,mounting holes 4-M3 through. (b)Outer rings/PCD 42mm,mounting holes 6-φ3.4 through φ6.5 counter bore depth 3.3mm.
- Seal Symbol: No symbol signifies the open type without seals.( UU signifies seals on both sides. U signifies seal on one side.UD signifies seal on one side in the opposite direction to counter bored mounting holes on outer ring.)
- Axial internal clearance: T1,C1,C2
- Accuracy class: Including P6,P5, P4, P2
Radial internal clearance
Nominal bore diameter of bearing(mm) | T1(μm) | C1(μm) | C2(μm) | ||||
over | incl. | Min. | Max. | Min. | Max. | Min. | Max. |
– | 30 | -10 | 0 | 0 | 10 | 10 | 20 |
30 | 40 | -10 | 0 | 0 | 10 | 10 | 20 |
40 | 50 | -10 | 0 | 0 | 10 | 10 | 25 |
50 | 65 | -10 | 0 | 0 | 10 | 10 | 25 |
65 | 50 | -10 | 0 | 0 | 15 | 15 | 30 |
80 | 100 | -10 | 0 | 0 | 15 | 15 | 35 |
100 | 120 | -15 | 0 | 0 | 15 | 15 | 35 |
120 | 140 | -15 | 0 | 0 | 20 | 20 | 45 |
140 | 160 | -15 | 0 | 0 | 20 | 20 | 50 |
160 | 200 | -15 | 0 | 0 | 20 | 20 | 50 |
200 | 215 | -20 | 0 | 0 | 25 | 25 | 60 |
250 | 315 | -20 | 0 | 0 | 25 | 25 | 60 |
315 | 400 | -25 | 0 | 0 | 30 | 30 | 70 |
400 | 500 | -30 | 0 | 0 | 40 | 40 | 85 |
500 | 630 | -30 | 0 | 0 | 50 | 50 | 100 |
630 | 710 | -30 | 0 | 0 | 60 | 60 | 120 |
710 | 800 | -40 | 0 | 0 | 70 | 70 | 140 |
Similar products of CRBF 108 AT crossed roller bearing
Bearing No. | Bearing No. | Bearing No. | Bearing No. | Bearing No. |
CRBF108 AT T1 | CRBF108 AT T1 P6 | CRBF108 AT T1 P5 | CRBF108 AT T1 P4 | CRBF108 AT T1 P2 |
CRBF108 AT C1 | CRBF108 AT C1 P6 | CRBF108 AT C1 P5 | CRBF108 AT C1 P4 | CRBF108 AT C1 P2 |
CRBF108 AT C2 | CRBF108 AT C2 P6 | CRBF108 AT C2 P5 | CRBF108 AT C2 P4 | CRBF108 AT C2 P2 |
CRBF108 AT UU T1 | CRBF108 AT UU T1 P6 | CRBF108 AT UU T1 P5 | CRBF108 AT UU T1 P4 | CRBF108 AT UU T1 P2 |
CRBF108 AT UU C1 | CRBF108 AT UU C1 P6 | CRBF108 AT UU C1 P5 | CRBF108 AT UU C1 P4 | CRBF108 AT UU C1 P2 |
CRBF108 AT UU C2 | CRBF108 AT UU C2 P6 | CRBF108 AT UU C2 P5 | CRBF108 AT UU C2 P4 | CRBF108 AT UU C2 P2 |
CRBF108 AT UD T1 | CRBF108 AT UD T1 P6 | CRBF108 AT UD T1 P5 | CRBF108 AT UD T1 P4 | CRBF108 AT UD T1 P2 |
CRBF108 AT UD C1 | CRBF108 AT UD C1 P6 | CRBF108 AT UD C1 P5 | CRBF108 AT UD C1 P4 | CRBF108 AT UD C1 P2 |
CRBF108 AT UD C2 | CRBF108 AT UD C2 P6 | CRBF108 AT UD C2 P5 | CRBF108 AT UD C2 P4 | CRBF108 AT UD C2 P2 |
How to ensure quality of crossed roller bearing
–Advanced design
From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.
–Advanced equipment
Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.
–Reliable raw materials
The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.
–Perfect management system
We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.
–Perfect testing method
We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

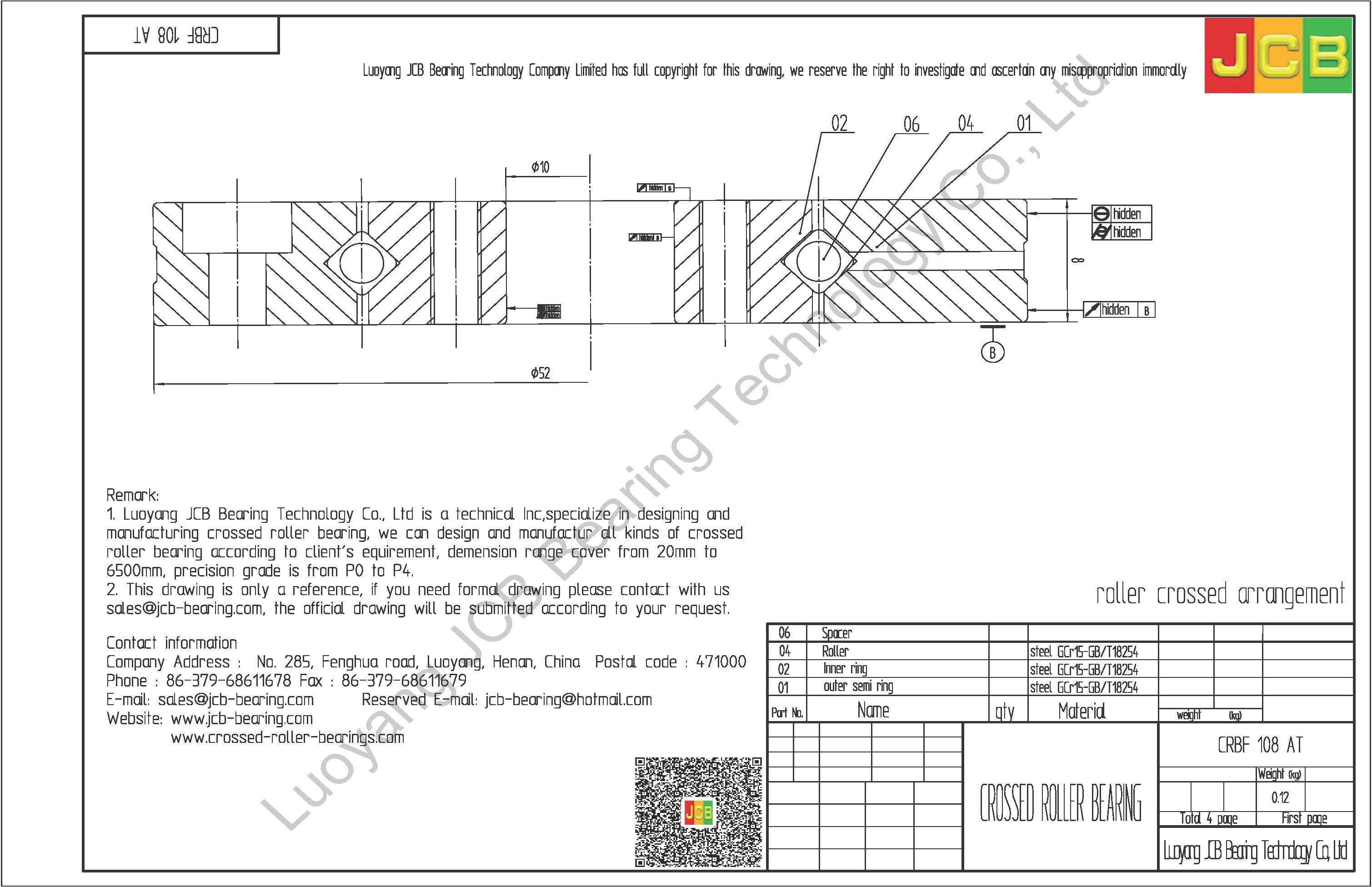

Download : drawing of crossed roller bearing CRBF 108 AT
