CRBE 11528 C CROSSED ROLLER BEARING

Bearing No.	Dimensions（mm）					Basic loading rates(kN)		Abutment and fillet dimensions(mm)		Weight
Bearing No.	d	D	B.T	rmin	doh	C	Co	da	Da	kg
CRBE 11528C	115	240	28	1.5	3	73.1	131.9	168	188	6.8

Category: CRBE SERIES CROSSED ROLLER BEARING

Description

Description

As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

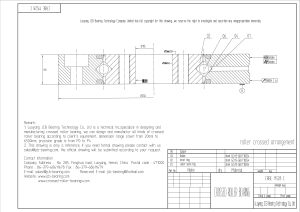

CRBE 11528 C crossed roller bearing specification

Model Code: CRBE series is high rigidity with mounting holes of crossed roller bearing.
Outer Diameter: 240 (unit: mm).
Bore Diameter: 115 (unit: mm).
Width: 28 (unit: mm).
Weight: 6.8 KG
Mounting Holes:inner rings/PCD 139,mounting holes 12-φ9 through φ14 counter bore depth 8.6 (unit: mm).Outer rings/PCD 217,mounting holes 12-φ9 through φ14 counter bore depth 8.6 (unit: mm).
Seal Symbol: WW signifies seals on both sides. NN signifies the open type without seals. Both types haveoil holes for lubrication.
Axial internal clearance: C1 signifies positive clearance with less friction force, while C8 signifies negative clearance without back lash, which will result in an increase of friction force during unloading conditions.
Accuracy class: Including P6,P5, P4,

Similar products of CRBE 11528 C crossed roller bearing

Bearing No.	Bearing No.	Bearing No.	Bearing No.	Bearing No.	Bearing No.
CRBE11528C C8 P6	CRBE11528C C1 P6	CRBE11528C WW C8 P6	CRBE11528C WW C1 P6	CRBE11528C NN C8 P6	CRBE11528C NN C1 P6
CRBE11528C C8 P5	CRBE11528C C1 P5	CRBE11528C WW C8 P5	CRBE11528C WW C1 P5	CRBE11528C NN C8 P5	CRBE11528C NN C1 P5
CRBE11528C C8 P4	CRBE11528C C1 P4	CRBE11528C WW C8 P4	CRBE11528C WW C1 P4	CRBE11528C NN C8 P4	CRBE11528C NN C1 P4
CRBE11528C C8 P2	CRBE11528C C1 P2	CRBE11528C WW C8 P2	CRBE11528C WW C1 P2	CRBE11528C NN C8 P2	CRBE11528C NN C1 P2

How to ensure quality of crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.
