RB...USP SERIES OF JCB CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product-category/thk-cross-roller-bearing/rb-usp-crossed-roller-bearing/ MANUFACTURER OF QUALITY CROSS ROLLER BEARING Thu, 08 Jun 2023 06:12:49 +0000 en-US hourly 1 https://www.cross-roller-bearing.com/wp-content/uploads/2018/05/cropped-JCB-标识4-32x32.jpg RB...USP SERIES OF JCB CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product-category/thk-cross-roller-bearing/rb-usp-crossed-roller-bearing/ 32 32 RB 60040USP CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/rb-60040usp-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 08:51:47 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=787 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RB 60040USP 600 700 40 3 6 3 264 721 627 673 29

The post RB 60040USP CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

RB 60040USP crossed roller bearing specification

  1. Model Code: RB…USP series is split outer ring type and rotation accuracy achieves the ultra precision ISO Class 2 grade of crossed roller bearings with separators.
  2. Outer Diameter: 700 (unit: mm).
  3. Bore Diameter:   600 (unit: mm).
  4. Width: 40 (unit: mm).
  5. Weight: 29.00 KG.
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0.
  9. Accuracy class:Including USP.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0
Above Or less Min. Max. Min. Max.
120 160 -10 0 0 40
160 200 -10 0 0 50
200 250 -10 0 0 60
250 280 -15 0 0 80
280 315 -15 0 0 100
315 355 -15 0 0 110
355 400 -15 0 0 120
400 500 -20 0 0 130
500 560 -20 0 0 150
560 630 -20 0 0 170
630 710 -20 0 0 190

Similar products of RB 60040USP crossed roller bearing

Bearing No. RB60040 CC0 USP RB60040 C0 USP RB60040 UU CC0 USP RB60040 UU C0 USP

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

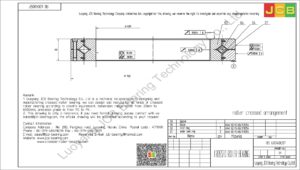

RB 60040USP THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RB 60040USP

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RB 60040USP CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RB 50040USP CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/rb-50040usp-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 08:51:21 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=786 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RB 50040USP 500 600 40 2.5 6 3 239 607 526 572 26

The post RB 50040USP CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

RB 50040USP crossed roller bearing specification

  1. Model Code: RB…USP series is split outer ring type and rotation accuracy achieves the ultra precision ISO Class 2 grade of crossed roller bearings with separators.
  2. Outer Diameter: 600 (unit: mm).
  3. Bore Diameter:   500 (unit: mm).
  4. Width: 40 (unit: mm).
  5. Weight: 26.00 KG.
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0.
  9. Accuracy class:Including USP.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0
Above Or less Min. Max. Min. Max.
120 160 -10 0 0 40
160 200 -10 0 0 50
200 250 -10 0 0 60
250 280 -15 0 0 80
280 315 -15 0 0 100
315 355 -15 0 0 110
355 400 -15 0 0 120
400 500 -20 0 0 130
500 560 -20 0 0 150
560 630 -20 0 0 170
630 710 -20 0 0 190

Similar products of RB 50040USP crossed roller bearing

Bearing No. RB50040 CC0 USP RB50040 C0 USP RB50040 UU CC0 USP RB50040 UU C0 USP

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RB 50040USP THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RB 50040USP

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RB 50040USP CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RB 40040USP CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/rb-40040usp-thk-cross-roller-bearing/ Mon, 23 Apr 2018 08:50:56 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=785 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RB 40040USP 400 510 40 2.5 6 3.5 241 531 428 479 23.5

The post RB 40040USP CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

RB 40040USP crossed roller bearing specification

  1. Model Code: RB…USP series is split outer ring type and rotation accuracy achieves the ultra precision ISO Class 2 grade of crossed roller bearings with separators.
  2. Outer Diameter: 510 (unit: mm).
  3. Bore Diameter:   400 (unit: mm).
  4. Width: 40 (unit: mm).
  5. Weight: 23.50 KG.
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0.
  9. Accuracy class:Including USP.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0
Above Or less Min. Max. Min. Max.
120 160 -10 0 0 40
160 200 -10 0 0 50
200 250 -10 0 0 60
250 280 -15 0 0 80
280 315 -15 0 0 100
315 355 -15 0 0 110
355 400 -15 0 0 120
400 500 -20 0 0 130
500 560 -20 0 0 150
560 630 -20 0 0 170
630 710 -20 0 0 190

Similar products of RB 40040USP crossed roller bearing

Bearing No. RB40040 CC0 USP RB40040 C0 USP RB40040 UU CC0 USP RB40040 UU C0 USP

Types of Crossed Roller Bearing

RU (Integrated Inner/Outer Ring Type)
RB (Separable Outer Ring Type for Inner Ring Rotation)
RE (Two-piece Inner Ring Type for Outer Ring Rotation)
RA (Separable Outer Ring Type for Inner Ring Rotation）

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RB 40040USP THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RB 40040USP

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RB 40040USP CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RB 30035USP CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/rb-30035usp-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 08:50:33 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=784 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RB 30035USP 300 395 35 2.5 5 3 183 367 322 368 13.4

The post RB 30035USP CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

RB 30035USP crossed roller bearing specification

  1. Model Code: RB…USP series is split outer ring type and rotation accuracy achieves the ultra precision ISO Class 2 grade of crossed roller bearings with separators.
  2. Outer Diameter: 395 (unit: mm).
  3. Bore Diameter:   300 (unit: mm).
  4. Width: 35 (unit: mm).
  5. Weight: 13.40 KG.
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0.
  9. Accuracy class:Including USP.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0
Above Or less Min. Max. Min. Max.
120 160 -10 0 0 40
160 200 -10 0 0 50
200 250 -10 0 0 60
250 280 -15 0 0 80
280 315 -15 0 0 100
315 355 -15 0 0 110
355 400 -15 0 0 120
400 500 -20 0 0 130
500 560 -20 0 0 150
560 630 -20 0 0 170
630 710 -20 0 0 190

Similar products of RB 30035USP crossed roller bearing

Bearing No. RB30035 CC0 USP RB30035 C0 USP RB30035 UU CC0 USP RB30035 UU C0 USP

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RB 30035USP THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RB 30035USP

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RB 30035USP CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RB 25030USP CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/rb-25030usp-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 08:50:09 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=783 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RB 25030USP 250 330 30 2.5 4.5 3 126 244 269 306 8.1

The post RB 25030USP CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

RB 25030USP crossed roller bearing specification

  1. Model Code: RB…USP series is split outer ring type and rotation accuracy achieves the ultra precision ISO Class 2 grade of crossed roller bearings with separators.
  2. Outer Diameter: 330 (unit: mm).
  3. Bore Diameter:   250 (unit: mm).
  4. Width: 30 (unit: mm).
  5. Weight: 8.10KG.
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0.
  9. Accuracy class:Including USP.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0
Above Or less Min. Max. Min. Max.
120 160 -10 0 0 40
160 200 -10 0 0 50
200 250 -10 0 0 60
250 280 -15 0 0 80
280 315 -15 0 0 100
315 355 -15 0 0 110
355 400 -15 0 0 120
400 500 -20 0 0 130
500 560 -20 0 0 150
560 630 -20 0 0 170
630 710 -20 0 0 190

Similar products of RB 25030USP crossed roller bearing

Bearing No. RB25030 CC0 USP RB25030 C0 USP RB25030 UU CC0 USP RB25030 UU C0 USP

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

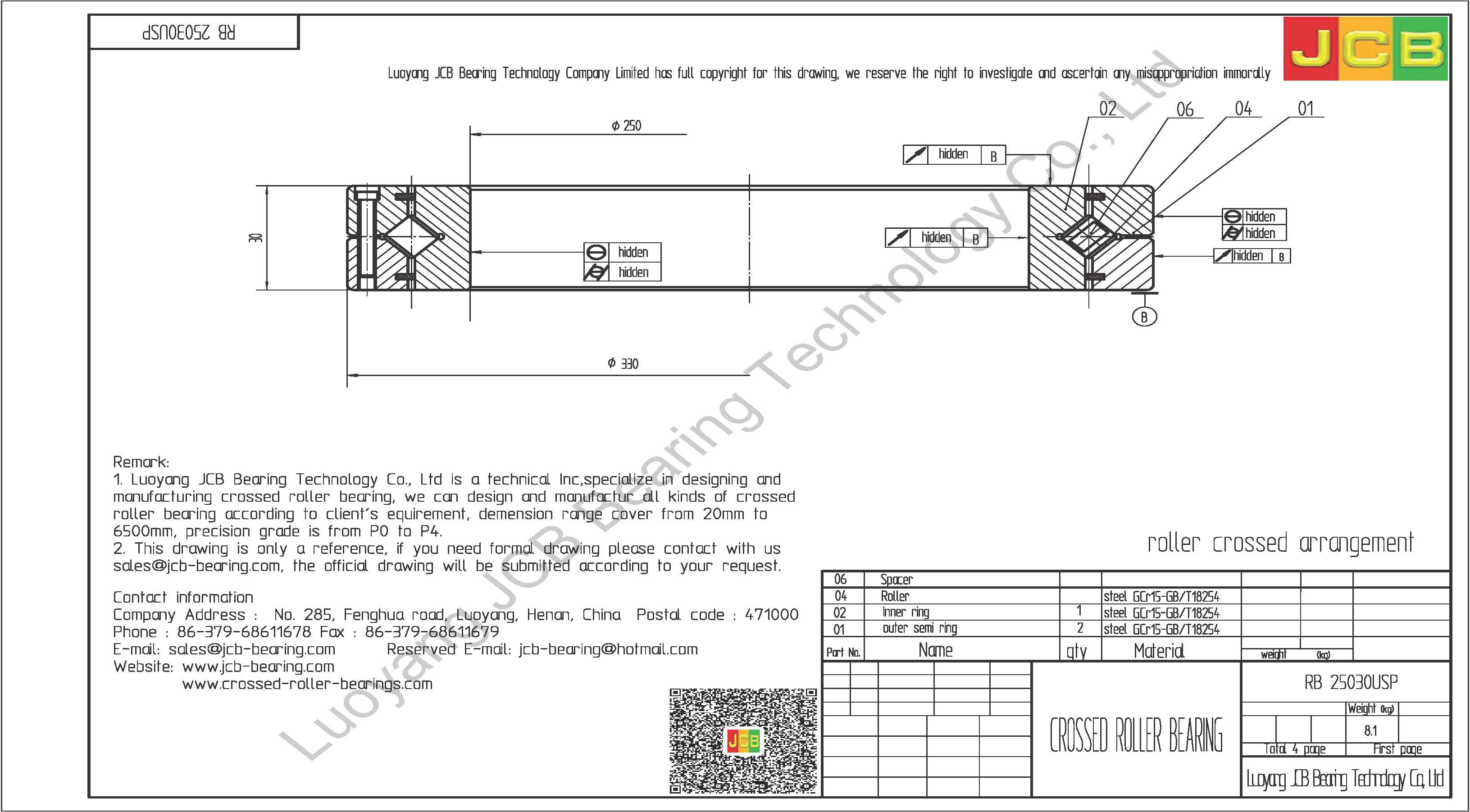

RB 25030USP THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RB 25030USP

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RB 25030USP CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RB 20030USP CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/rb-20030usp-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 08:49:40 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=782 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RB 20030USP 200 280 30 2 4.5 3 114 200 221 258 6.7

The post RB 20030USP CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

RB 20030USP crossed roller bearing specification

  1. Model Code: RB…USP series is split outer ring type and rotation accuracy achieves the ultra precision ISO Class 2 grade of crossed roller bearings with separators.
  2. Outer Diameter: 280 (unit: mm).
  3. Bore Diameter:  200 (unit: mm).
  4. Width: 30 (unit: mm).
  5. Weight: 6.70 KG.
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0.
  9. Accuracy class:Including USP.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0
Above Or less Min. Max. Min. Max.
120 160 -10 0 0 40
160 200 -10 0 0 50
200 250 -10 0 0 60
250 280 -15 0 0 80
280 315 -15 0 0 100
315 355 -15 0 0 110
355 400 -15 0 0 120
400 500 -20 0 0 130
500 560 -20 0 0 150
560 630 -20 0 0 170
630 710 -20 0 0 190

Similar products of RB 200303USP crossed roller bearing

Bearing No. RB20030 CC0 USP RB20030 C0 USP RB20030 UU CC0 USP RB20030 UU C0 USP

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

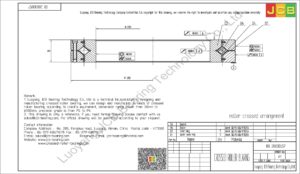

RB 20030USP THK CROSSED ROLLER BEARING

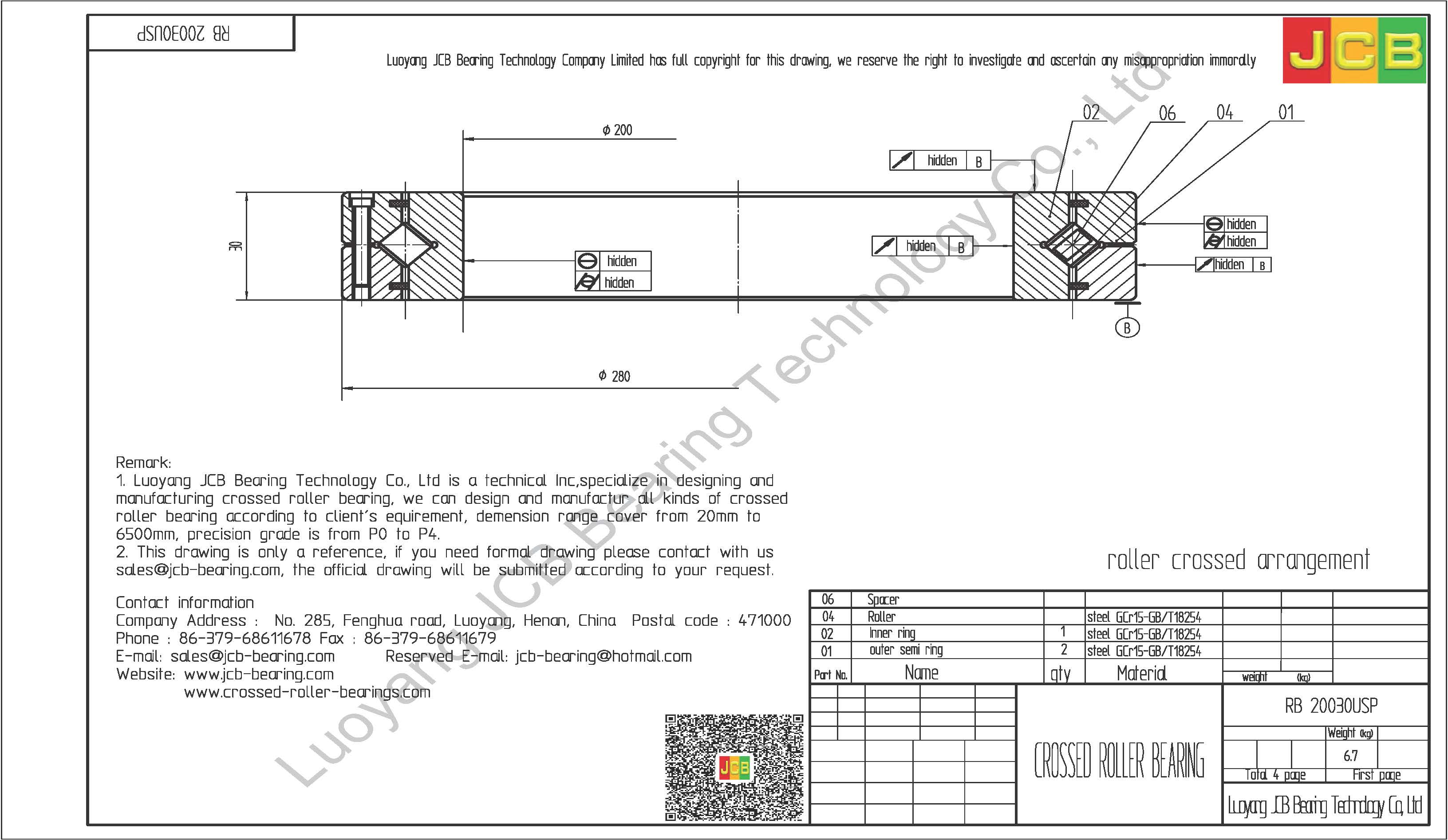

Download : drawing of crossed roller bearing RB 20030USP

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RB 20030USP CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RB 15025USP CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/rb-15025usp-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 08:49:16 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=781 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RB 15025USP 150 210 25 1.5 3.5 2 76.8 128 164 194 3.16

The post RB 15025USP CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

RB 15025USP crossed roller bearing specification

  1. Model Code: RB…USP series is split outer ring type and rotation accuracy achieves the ultra precision ISO Class 2 grade of crossed roller bearings with separators.
  2. Outer Diameter: 210 (unit: mm).
  3. Bore Diameter:   150 (unit: mm).
  4. Width: 25 (unit: mm).
  5. Weight: 3.16 KG.
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0.
  9. Accuracy class:Including USP.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0
Above Or less Min. Max. Min. Max.
120 160 -10 0 0 40
160 200 -10 0 0 50
200 250 -10 0 0 60
250 280 -15 0 0 80
280 315 -15 0 0 100
315 355 -15 0 0 110
355 400 -15 0 0 120
400 500 -20 0 0 130
500 560 -20 0 0 150
560 630 -20 0 0 170
630 710 -20 0 0 190

Similar products of RB 15025USP crossed roller bearing

Bearing No. RB15025 CC0 USP RB15025 C0 USP RB15025 UU CC0 USP RB15025 UU C0 USP

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RB 15025USP THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RB 15025USP

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RB 15025USP CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RB 12025USP CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/rb-12025usp-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 08:48:16 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=780 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RB 12025USP 120 180 25 1.5 3.5 2 66.9 100 133 164 2.62

The post RB 12025USP CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

RB 12025USP crossed roller bearing specification

  1. Model Code: RB…USP series is split outer ring type and rotation accuracy achieves the ultra precision ISO Class 2 grade of crossed roller bearings with separators.
  2. Outer Diameter: 180 (unit: mm).
  3. Bore Diameter:   120 (unit: mm).
  4. Width: 25 (unit: mm).
  5. Weight: 2.62 KG.
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0.
  9. Accuracy class:Including USP.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0
Above Or less Min. Max. Min. Max.
120 160 -10 0 0 40
160 200 -10 0 0 50
200 250 -10 0 0 60
250 280 -15 0 0 80
280 315 -15 0 0 100
315 355 -15 0 0 110
355 400 -15 0 0 120
400 500 -20 0 0 130
500 560 -20 0 0 150
560 630 -20 0 0 170
630 710 -20 0 0 190

Similar products of RB 12025USP crossed roller bearing

Bearing No. RB12025 CC0 USP RB12025 C0 USP RB12025 UU CC0 USP RB12025 UU C0 USP

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RB 12025USP THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RB 12025USP

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RB 12025USP CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RB 10020USP CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/rb-10020usp-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 08:47:46 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=779 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RB 10020USP 100 150 20 1 3.5 1.6 33.1 50.9 113 133 1.45



The post RB 10020USP CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

RB 10020USP crossed roller bearing specification

  1. Model Code: RB…USP series is split outer ring type and rotation accuracy achieves the ultra precision ISO Class 2 grade of crossed roller bearings with separators.
  2. Outer Diameter: 150 (unit: mm).
  3. Bore Diameter:   100 (unit: mm).
  4. Width: 20 (unit: mm).
  5. Weight: 1.45 KG.
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0.
  9. Accuracy class:Including USP.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0
Above Or less Min. Max. Min. Max.
120 160 -10 0 0 40
160 200 -10 0 0 50
200 250 -10 0 0 60
250 280 -15 0 0 80
280 315 -15 0 0 100
315 355 -15 0 0 110
355 400 -15 0 0 120
400 500 -20 0 0 130
500 560 -20 0 0 150
560 630 -20 0 0 170
630 710 -20 0 0 190

Similar products of RB 10020USP crossed roller bearing

Bearing No. RB10020 CC0 USP RB10020 C0 USP RB10020 UU CC0 USP RB10020 UU C0 USP

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RB 10020USP CROSSED ROLLER BEARING
RB 10020USP CROSSED ROLLER BEARING

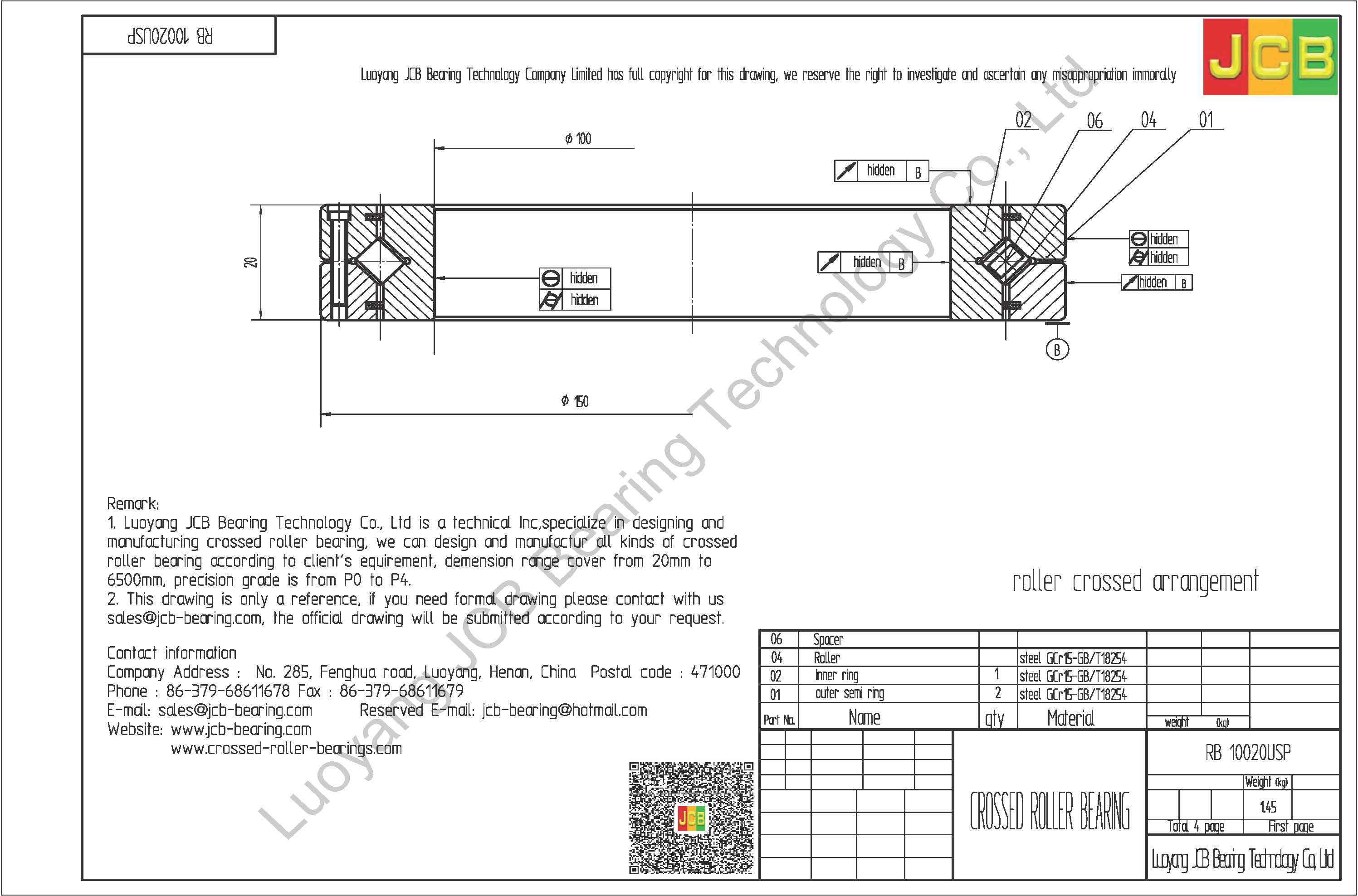

Download : drawing of crossed roller bearing RB 10020USP

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RB 10020USP CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]>
