XSU SERIES OF JCB CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product-category/ina-cross-roller-bearing/xsu/ MANUFACTURER OF QUALITY CROSS ROLLER BEARING Tue, 24 Oct 2023 07:36:43 +0000 en-US hourly 1 https://www.cross-roller-bearing.com/wp-content/uploads/2018/05/cropped-JCB-标识4-32x32.jpg XSU SERIES OF JCB CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product-category/ina-cross-roller-bearing/xsu/ 32 32 XSU 14 1094 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/xsu-14-1094-of-ina-cross-roller-bearing/ Mon, 23 Apr 2018 05:31:33 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=571 Bearing No. Dimensions（mm） Basic loading rates(kN) Weight d D B da Da Ca Coa Cr Cor kg XSU 14 1094 1024 1164 56 1093 1095 390 1360 246 670 77

The post XSU 14 1094 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

XSU 14 1094 crossed roller bearing specification

  1. Model Code: XSU series is mounting holed type high rigidity of crossed roller bearing with separator.
  2. Outer Diameter: 1164 (unit: mm).
  3. Bore Diameter:   1024 (unit: mm).
  4. Width: 56 (unit: mm).
  5. Weight: 77 KG
  6. Mounting Holes: (a)Inner rings/PCD 1048 mm,mounting holes 48-φ14 through.(b)Outer rings/PCD 1140 mm,mounting holes 48-φ14 through.
  7. Seal Symbol:Sealed on both sides.
  8. Accuracy class: Including P0,P6,P5
Bearing No. Dimensions（mm） Weight Fixing screws Limiting speeds
d D B da Da kg Fr perm(kN) min-1
XSU 14 1094 1024 1164 56 1093 1095 77 197 35
Basic loading rates(kN) Running accuracy relative to raceway
Ca Coa Cr Cor A B C D
390 1360 246 670 0.07 0.07 0.11 0.11

Similar products of XSU 14 1094 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No.
XSU141094 XSU141094 VSP XSU141094 VSP RR XSU141094 RR
XSU141094 RL0 XSU141094 RL0 VSP XSU141094 RL0 RR XSU141094 RL0 VSP RR

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

XSU 14 1094 INA CROSS ROLLER BEARING

Download : drawing of crossed roller bearing XSU 14 1094

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post XSU 14 1094 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> XSU 14 0944 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/xsu-14-0944-of-ina-cross-roller-bearing/ Mon, 23 Apr 2018 05:31:07 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=570 Bearing No. Dimensions（mm） Basic loading rates(kN) Weight d D B da Da Ca Coa Cr Cor kg XSU 14 0944 874 1014 56 943 945 360 1170 227 580 67

The post XSU 14 0944 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

XSU 14 0944 crossed roller bearing specification

  1. Model Code: XSU series is mounting holed type high rigidity of crossed roller bearing with separator.
  2. Outer Diameter: 1014 (unit: mm).
  3. Bore Diameter:   874 (unit: mm).
  4. Width: 56 (unit: mm).
  5. Weight: 67 KG
  6. Mounting Holes: (a)Inner rings/PCD 990 mm,mounting holes 44-φ14 through.(b)Outer rings/PCD 898 mm,mounting holes 44-φ14 through.
  7. Seal Symbol:Sealed on both sides.
  8. Accuracy class: Including P0,P6,P5
Bearing No. Dimensions（mm） Weight Fixing screws Limiting speeds
d D B da Da kg Fr perm(kN) min-1
XSU 14 0944 874 1014 56 943 945 67 180 40
Basic loading rates(kN) Running accuracy relative to raceway
Ca Coa Cr Cor A B C D
360 1170 227 580 0.06 0.06 0.11 0.09

Similar products of XSU 14 0944 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No.
XSU140944 XSU140944 VSP XSU140944 VSP RR XSU140944 RR
XSU140944 RL0 XSU140944 RL0 VSP XSU140944 RL0 RR XSU140944 RL0 VSP RR

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

XSU 14 0944 INA CROSS ROLLER BEARING

Download : drawing of crossed roller bearing XSU 14 0944

If you need formal drawing , please contact with us
Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post XSU 14 0944 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> XSU 14 0844 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/xsu-14-0844-of-ina-cross-roller-bearing/ Mon, 23 Apr 2018 05:30:35 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=569 Bearing No. Dimensions（mm） Basic loading rates(kN) Weight d D B da Da Ca Coa Cr Cor kg XSU 14 0844 774 914 56 843 845 340 1050 215 510 60

The post XSU 14 0844 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

XSU 14 0844 crossed roller bearing specification

  1. Model Code: XSU series is mounting holed type high rigidity of crossed roller bearing with separator.
  2. Outer Diameter: 914 (unit: mm).
  3. Bore Diameter:   843 (unit: mm).
  4. Width: 56 (unit: mm).
  5. Weight: 60 KG
  6. Mounting Holes: (a)Inner rings/PCD 798 mm,mounting holes 40-φ14 through.(b)Outer rings/PCD 890 mm,mounting holes 40-φ14 through.
  7. Seal Symbol:Sealed on both sides.
  8. Accuracy class: Including P0,P6,P5
Bearing No. Dimensions（mm） Weight Fixing screws Limiting speeds
d D B da Da kg Fr perm(kN) min-1
XSU 14 0844 774 914 56 843 845 60 164 45
Basic loading rates(kN) Running accuracy relative to raceway
Ca Coa Cr Cor A B C D
340 1050 215 510 0.06 0.06 0.09 0.08

Similar products of XSU 14 0844 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No.
XSU140844 XSU140844 VSP XSU140844 VSP RR XSU140844 RR
XSU140844 RL0 XSU140844 RL0 VSP XSU140844 RL0 RR XSU140844 RL0 VSP RR

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

XSU 14 0844 INA CROSS ROLLER BEARING

Download : drawing of crossed roller bearing XSU 14 0844

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post XSU 14 0844 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> XSU 14 0744 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/xsu-14-0744-of-ina-cross-roller-bearing/ Mon, 23 Apr 2018 05:29:40 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=568 Bearing No. Dimensions（mm） Basic loading rates(kN) Weight d D B da Da Ca Coa Cr Cor kg XSU 14 0744 674 814 56 743 745 315 930 200 455 52

The post XSU 14 0744 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

XSU 14 0744 crossed roller bearing specification

  1. Model Code: XSU series is mounting holed type high rigidity of crossed roller bearing with separator.
  2. Outer Diameter: 814 (unit: mm).
  3. Bore Diameter:   674 (unit: mm).
  4. Width: 56 (unit: mm).
  5. Weight: 52 KG
  6. Mounting Holes: (a)Inner rings/PCD 698 mm,mounting holes 40-φ14 through.(b)Outer rings/PCD 790 mm,mounting holes 40-φ14 through.
  7. Seal Symbol:Sealed on both sides.
  8. Accuracy class: Including P0,P6,P5
Bearing No. Dimensions（mm） Weight Fixing screws Limiting speeds
d D B da Da kg Fr perm(kN) min-1
XSU 14 0744 674 814 56 743 745 52 164 51
Basic loading rates(kN) Running accuracy relative to raceway
Ca Coa Cr Cor A B C D
315 930 200 455 0.05 0.05 0.09 0.08

Similar products of XSU 14 0744 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No.
XSU140744 XSU140744 VSP XSU140744 VSP RR XSU140744 RR
XSU140744 RL0 XSU140744 RL0 VSP XSU140744 RL0 RR XSU140744 RL0 VSP RR

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

XSU 14 0744 INA CROSS ROLLER BEARING

Download : drawing of crossed roller bearing XSU 14 0744

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post XSU 14 0744 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> XSU 14 0644 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/xsu-14-0644-of-ina-cross-roller-bearing/ Mon, 23 Apr 2018 05:25:21 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=567 Bearing No. Dimensions（mm） Basic loading rates(kN) Weight d D B da Da Ca Coa Cr Cor kg XSU 14 0644 574 714 56 643 645 270 680 185 395 44

The post XSU 14 0644 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

XSU 14 0644 crossed roller bearing specification

  1. Model Code: XSU series is mounting holed type high rigidity of crossed roller bearing with separator.
  2. Outer Diameter: 714 (unit: mm).
  3. Bore Diameter:   574 (unit: mm).
  4. Width: 56 (unit: mm).
  5. Weight: 44 KG
  6. Mounting Holes: (a)Inner rings/PCD 598 mm,mounting holes 36-φ14 through.(b)Outer rings/PCD 690 mm,mounting holes 36-φ14 through.
  7. Seal Symbol:Sealed on both sides.
  8. Accuracy class: Including P0,P6,P5
Bearing No. Dimensions（mm） Weight Fixing screws Limiting speeds
d D B da Da kg Fr perm(kN) min-1
XSU 14 0644 574 714 56 643 645 44 147 59
Basic loading rates(kN) Running accuracy relative to raceway
Ca Coa Cr Cor A B C D
270 680 185 395 0.05 0.05 0.08 0.07

Similar products of XSU 14 0644 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No.
XSU140644 XSU140644 VSP XSU140644 VSP RR XSU140644 RR
XSU140644 RL0 XSU140644 RL0 VSP XSU140644 RL0 RR XSU140644 RL0 VSP RR

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

XSU 14 0644 INA CROSS ROLLER BEARING

Download : drawing of crossed roller bearing XSU 14 0644

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post XSU 14 0644 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> XSU 14 0544 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/xsu-14-0544-of-ina-cross-roller-bearing/ Mon, 23 Apr 2018 05:24:25 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=566 Bearing No. Dimensions（mm） Basic loading rates(kN) Weight d D B da Da Ca Coa Cr Cor kg XSU 14 0544 474 614 56 543 545 270 680 170 330 38

The post XSU 14 0544 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

XSU 14 0544 crossed roller bearing specification

  1. Model Code: XSU series is mounting holed type high rigidity of crossed roller bearing with separator.
  2. Outer Diameter: 614 (unit: mm).
  3. Bore Diameter:   474 (unit: mm).
  4. Width: 56 (unit: mm).
  5. Weight: 38 KG
  6. Mounting Holes: (a)Inner rings/PCD 498 mm,mounting holes 32-φ14 through.(b)Outer rings/PCD 590 mm,mounting holes 32-φ14 through.
  7. Seal Symbol:Sealed on both sides.
  8. Accuracy class: Including P0,P6,P5
Bearing No. Dimensions（mm） Weight Fixing screws Limiting speeds
d D B da Da kg Fr perm(kN) min-1
XSU 14 0544 474 614 56 543 545 38 131 70
Basic loading rates(kN) Running accuracy relative to raceway
Ca Coa Cr Cor A B C D
270 680 170 330 0.04 0.04 0.07 0.06

Similar products of XSU 14 0544 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No.
XSU140544 XSU140544 VSP XSU140544 VSP RR XSU140544 RR
XSU140544 RL0 XSU140544 RL0 VSP XSU140544 RL0 RR XSU140544 RL0 VSP RR

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

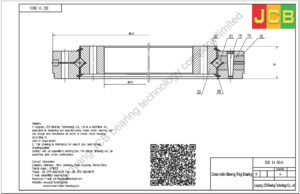

XSU 14 0544 INA CROSS ROLLER BEARING

Download : drawing of crossed roller bearing XSU 14 0544

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post XSU 14 0544 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> XSU 14 0414 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/xsu-14-0414-of-ina-cross-roller-bearing/ Mon, 23 Apr 2018 05:23:17 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=565 Bearing No. Dimensions（mm） Basic loading rates(kN) Weight d D B da Da Ca Coa Cr Cor kg XSU 14 0414 344 484 56 413 415 229 520 146 250 28

The post XSU 14 0414 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

XSU 14 0414 crossed roller bearing specification

  1. Model Code: XSU series is mounting holed type high rigidity of crossed roller bearing with separator.
  2. Outer Diameter: 484 (unit: mm).
  3. Bore Diameter:   344 (unit: mm).
  4. Width: 56 (unit: mm).
  5. Weight: 77 KG
  6. Mounting Holes: (a)Inner rings/PCD 368 mm,mounting holes 24-φ14 through.(b)Outer rings/PCD 460 mm,mounting holes 24-φ14 through.
  7. Seal Symbol:Sealed on both sides.
  8. Accuracy class: Including P0,P6,P5
Bearing No. Dimensions（mm） Weight Fixing screws Limiting speeds
d D B da Da kg Fr perm(kN) min-1
XSU 14 0414 344 484 56 413 415 28 98.3 92
Basic loading rates(kN) Running accuracy relative to raceway
Ca Coa Cr Cor A B C D
229 520 146 250 0.04 0.04 0.06 0.06

Similar products of XSU 14 0414 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No.
XSU140414 XSU140414 VSP XSU140414 VSP RR XSU140414 RR
XSU140414 RL0 XSU140414 RL0 VSP XSU140414 RL0 RR XSU140414 RL0 VSP RR

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

XSU 14 0414 INA CROSS ROLLER BEARING

Download : drawing of crossed roller bearing XSU 14 0414

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post XSU 14 0414 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> XSU 080398 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/xsu-080398-of-ina-cross-roller-bearing/ Mon, 23 Apr 2018 05:22:11 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=564 Bearing No. Dimensions（mm） Basic loading rates(kN) Weight d D B da Da Ca Coa Cr Cor kg XSU 080398 360 435 25.4 389 404 106 590 68 236 7.8

The post XSU 080398 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

XSU 080398 crossed roller bearing specification

  1. Model Code: XSU series is mounting holed type high rigidity of crossed roller bearing with separator.
  2. Outer Diameter: 435 (unit: mm).
  3. Bore Diameter:   360 (unit: mm).
  4. Width: 25.4 (unit: mm).
  5. Weight: 7.8 KG
  6. Mounting Holes: (a)Inner rings/PCD 375mm,mounting holes 36-φ6.8 through φ11 counter bore depth 6.8mm.(b)Outer rings/PCD 420 mm,mounting holes 36-φ6.8 through φ11 counter bore depth 6.8mm.
  7. Seal Symbol:Sealed on both sides.
  8. Accuracy class: Including P0,P6,P5
Bearing No. Dimensions（mm） Weight
d D B da Da kg
XSU 080398 360 435 25.4 389 404 7.8
Basic loading rates(kN) Fixing screws Limiting speeds
Ca Coa Cr Cor Fr perm(kN) min-1
106 590 68 236 24.5 96

Similar products of XSU 080398 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No.
XSU080398 XSU080398 VSP XSU080398 VSP RR XSU080398 RR
XSU080398 RL0 XSU080398 RL0 VSP XSU080398 RL0 RR XSU080398 RL0 VSP RR

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

XSU 080398 INA CROSS ROLLER BEARING

Download : drawing of crossed roller bearing XSU 080398

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post XSU 080398 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> XSU 080318 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/xsu-080318-of-ina-cross-roller-bearing/ Mon, 23 Apr 2018 05:20:39 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=563 Bearing No. Dimensions（mm） Basic loading rates(kN) Weight d D B da Da Ca Coa Cr Cor kg XSU 080318 280 355 25.4 309 324 93 465 59 185 6.3

The post XSU 080318 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

XSU 080318 crossed roller bearing specification

  1. Model Code: XSU series is mounting holed type high rigidity of crossed roller bearing with separator.
  2. Outer Diameter: 355 (unit: mm).
  3. Bore Diameter:   280 (unit: mm).
  4. Width: 25.4 (unit: mm).
  5. Weight: 6.3 KG
  6. Mounting Holes: (a)Inner rings/PCD 295 mm,mounting holes 28-φ6.8 through φ11 counter bore depth 6.8mm.(b)Outer rings/PCD 340 mm,mounting holes 28-φ6.8 through φ11 counter bore depth 6.8mm.
  7. Seal Symbol:Sealed on both sides.
  8. Accuracy class: Including P0,P6,P5
Bearing No. Dimensions（mm） Weight
d D B da Da kg
XSU 080318 280 355 25.4 309 324 6.3
Basic loading rates(kN) Fixing screws Limiting speeds
Ca Coa Cr Cor Fr perm(kN) min-1
93 465 59 185 19.1 120

Similar products of XSU 080318 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No.
XSU080318 XSU080318 VSP XSU080318 VSP RR XSU080318 RR
XSU080318 RL0 XSU080318 RL0 VSP XSU080318 RL0 RR XSU080318 RL0 VSP RR

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

XSU 080318 INA CROSS ROLLER BEARING

Download : drawing of crossed roller bearing XSU 080318

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post XSU 080318 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> XSU 080258 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/xsu-080258-of-ina-cross-roller-bearing/ Mon, 23 Apr 2018 05:19:41 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=562 Bearing No. Dimensions（mm） Basic loading rates(kN) Weight d D B da Da Ca Coa Cr Cor kg XSU 080258 220 295 25.4 249 264 84 375 54 151 5.1

The post XSU 080258 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

XSU 080258 crossed roller bearing specification

  1. Model Code: XSU series is mounting holed type high rigidity of crossed roller bearing with separator.
  2. Outer Diameter: 295 (unit: mm).
  3. Bore Diameter:   220 (unit: mm).
  4. Width: 25.4 (unit: mm).
  5. Weight: 5.1 KG
  6. Mounting Holes: (a)Inner rings/PCD 235 mm,mounting holes 24-φ6.8 through φ11 counter bore depth 6.8mm.(b)Outer rings/PCD 280 mm,mounting holes 24-φ6.8 through φ11 counter bore depth 6.8mm.
  7. Seal Symbol:Sealed on both sides.
  8. Accuracy class: Including P0,P6,P5
Bearing No. Dimensions（mm） Weight
d D B da Da kg
XSU 080258 220 295 25.4 249 264 5.1
Basic loading rates(kN) Fixing screws Limiting speeds
Ca Coa Cr Cor Fr perm(kN) min-1
84 375 54 151 16.4 148

Similar products of XSU 080258 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No.
XSU080258 XSU080258 VSP XSU080258 VSP RR XSU080258 RR
XSU080258 RL0 XSU080258 RL0 VSP XSU080258 RL0 RR XSU080258 RL0 VSP RR

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

XSU 080258 INA CROSS ROLLER BEARING

Download : drawing of crossed roller bearing XSU 080258

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post XSU 080258 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]>
