SX SERIES OF JCB CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product-category/ina-cross-roller-bearing/sx/ MANUFACTURER OF QUALITY CROSS ROLLER BEARING Wed, 07 Jun 2023 09:07:10 +0000 en-US hourly 1 https://www.cross-roller-bearing.com/wp-content/uploads/2018/05/cropped-JCB-标识4-32x32.jpg SX SERIES OF JCB CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product-category/ina-cross-roller-bearing/sx/ 32 32 SX 01 18/500 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/sx-01-18-500-of-ina-cross-roller-bearing/ Mon, 23 Apr 2018 03:56:50 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=558 Designation Dimensions Weight d D B da Da Rs min S kg SX 01 18/500 500 620 56 558.8 561.2 3 2.5 44

The post SX 01 18/500 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

SX 01 18/500 crossed roller bearing specification

  1. Model Code: SX series is outer ring circumferentially split and held together by three retaining rings of crossed roller bearing.
  2. Outer Diameter: 620 (unit: mm).
  3. Bore Diameter:   500 (unit: mm).
  4. Width: 56 (unit: mm).
  5. Weight: 44 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol:No sealed.
  8. Accuracy class: Including P0,P6,P5, P4
Designation Dimensions Weight
d D B da Da Rs min S kg
SX 01 18/500 500 620 56 558.8 561.2 3 2.5 44
Basic loading rates(kN) Limiting speeds with standard clearance min. Limiting speeds with preload min.
Ca Coa Cr Cor oil grease oil grease
560 2538 355 1244 275 135 135 65
radial clearance axial tilting clearance Low clearance RLO max. preload VSP Running accuracy relative to raceway
min. max. min. max. radial preload min. max. radial axial
0.015 0.06 0.03 0.12 0.006 0.012 0.005 0.030 0.040 0.010

Similar products of SX 01 18/500 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No.
SX0118/500 SX0118/500 VSP SX0118/500 VSP RR SX0118/500 RR
SX0118/500 RL0 SX0118/500 RL0 VSP SX0118/500 RL0 RR SX0118/500 RL0 VSP RR

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

SX 01 18-500 INA CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing SX 01 18/500

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post SX 01 18/500 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> SX 01 1880 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/sx-01-1880-of-ina-cross-roller-bearing/ Mon, 23 Apr 2018 03:56:20 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=557 Designation Dimensions Weight d D B da Da Rs min S kg SX 01 1880 400 500 46 449 451 2.1 2.5 24

The post SX 01 1880 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

SX 01 1880 crossed roller bearing specification

  1. Model Code: SX series is outer ring circumferentially split and held together by three retaining rings of crossed roller bearing.
  2. Outer Diameter: 500 (unit: mm).
  3. Bore Diameter:   400 (unit: mm).
  4. Width: 46 (unit: mm).
  5. Weight: 24 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol:No sealed.
  8. Accuracy class: Including P0,P6,P5, P4
Designation Dimensions Weight
d D B da Da Rs min S kg
SX 01 1880 400 500 46 449 451 2.1 2.5 24
Basic loading rates(kN) Limiting speeds with standard clearance min. Limiting speeds with preload min.
Ca Coa Cr Cor oil grease oil grease
385 1699 244 833 340 170 170 85
radial clearance axial tilting clearance Low clearance RLO max. preload VSP Running accuracy relative to raceway
min. max. min. max. radial preload min. max. radial axial
0.01 0.05 0.02 0.10 0.005 0.010 0.005 0.025 0.030 0.010

Similar products of SX 01 1880 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No.
SX011880 SX011880 VSP SX011880 VSP RR SX011880 RR
SX011880 RL0 SX011880 RL0 VSP SX011880 RL0 RR SX011880 RL0 VSP RR

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

SX 01 1880 INA CROSSED ROLLER BEARING

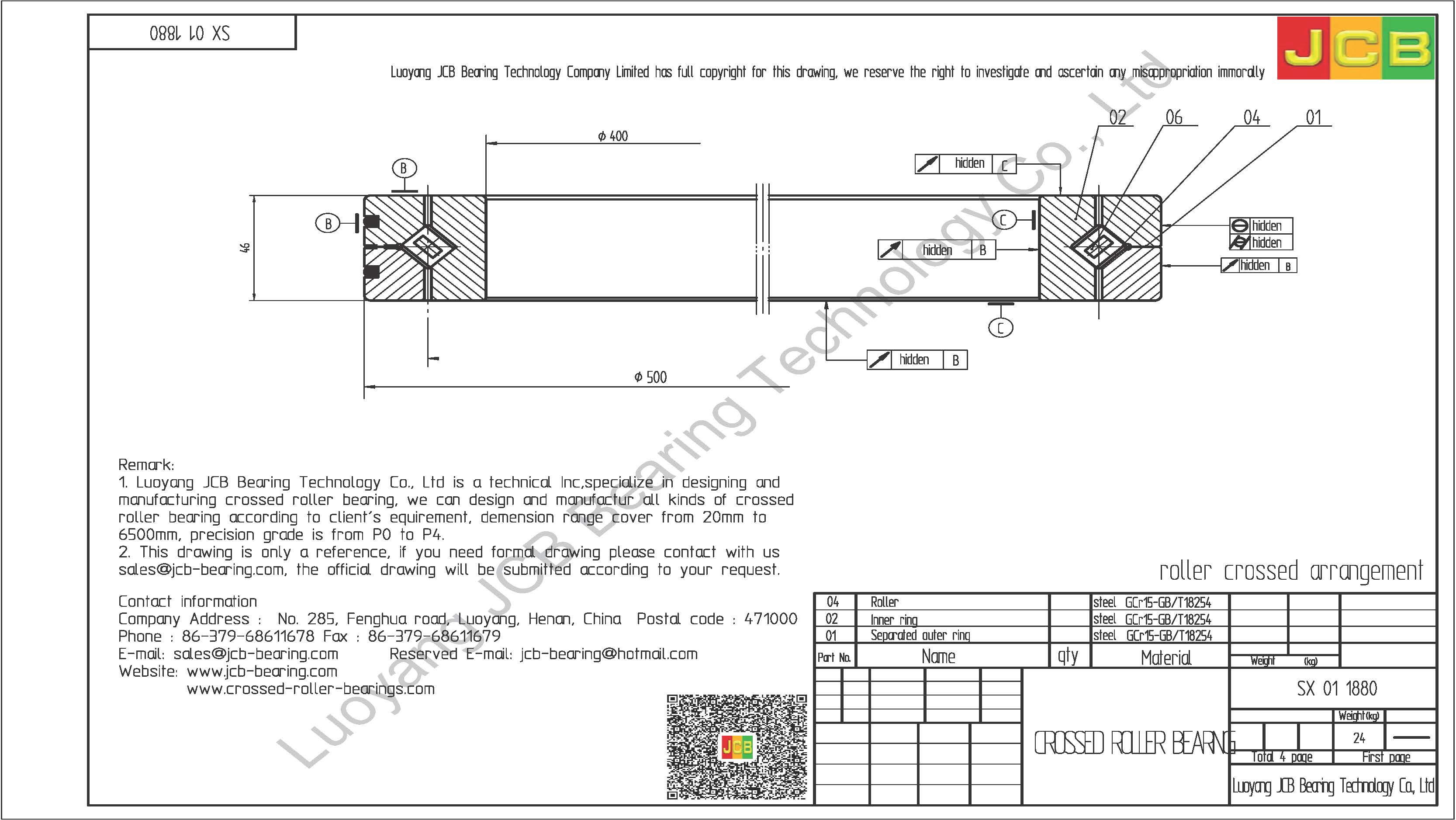

Download : drawing of crossed roller bearing SX 01 1880

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post SX 01 1880 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> SX 01 1868 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/sx-01-1868-of-ina-cross-roller-bearing/ Mon, 23 Apr 2018 03:55:30 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=556 Designation Dimensions Weight d D B da Da Rs min S kg SX 01 1868 340 420 38 379.2 380.8 2.1 2.5 13.5

The post SX 01 1868 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

SX 01 1868 crossed roller bearing specification

  1. Model Code: SX series is outer ring circumferentially split and held together by three retaining rings of crossed roller bearing.
  2. Outer Diameter: 420 (unit: mm).
  3. Bore Diameter:   340 (unit: mm).
  4. Width: 38 (unit: mm).
  5. Weight: 13.5 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol:No sealed.
  8. Accuracy class: Including P0,P6,P5, P4
Designation Dimensions Weight
d D B da Da Rs min S kg
SX 01 1868 340 420 38 379.2 380.8 2.1 2.5 13.5
Basic loading rates(kN) Limiting speeds with standard clearance min. Limiting speeds with preload min.
Ca Coa Cr Cor oil grease oil grease
265 1148 167 563 400 200 200 100
radial clearance axial tilting clearance Low clearance RLO max. preload VSP Running accuracy relative to raceway
min. max. min. max. radial preload min. max. radial axial
0.01 0.04 0.02 0.08 0.005 0.010 0.005 0.025 0.025 0.010

Similar products of SX 01 1868 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No.
SX011868 SX011868 VSP SX011868 VSP RR SX011868 RR
SX011868 RL0 SX011868 RL0 VSP SX011868 RL0 RR SX011868 RL0 VSP RR



How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

SX 01 1868 INA CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing SX 01 1868

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post SX 01 1868 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> SX 01 1860 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/sx-01-1860-of-ina-cross-roller-bearing/ Mon, 23 Apr 2018 03:53:55 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=555 Designation Dimensions Weight d D B da Da Rs min S kg SX 01 1860 300 380 38 339.2 340.8 2.1 2.5 12

The post SX 01 1860 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

SX 01 1860 crossed roller bearing specification

  1. Model Code: SX series is outer ring circumferentially split and held together by three retaining rings of crossed roller bearing.
  2. Outer Diameter: 380 (unit: mm).
  3. Bore Diameter:   300 (unit: mm).
  4. Width: 38 (unit: mm).
  5. Weight: 12 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol:No sealed.
  8. Accuracy class: Including P0,P6,P5, P4
Designation Dimensions Weight
d D B da Da Rs min S kg
SX 01 1860 300 380 38 339.2 340.8 2.1 2.5 12
Basic loading rates(kN) Limiting speeds with standard clearance min. Limiting speeds with preload min.
Ca Coa Cr Cor oil grease oil grease
245 1027 156 504 450 225 225 110
radial clearance axial tilting clearance Low clearance RLO max. preload VSP Running accuracy relative to raceway
min. max. min. max. radial preload min. max. radial axial
0.01 0.04 0.02 0.08 0.005 0.010 0.005 0.025 0.020 0.010

Similar products of SX 01 1860 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No.
SX011860 SX011860 VSP SX011860 VSP RR SX011860 RR
SX011860 RL0 SX011860 RL0 VSP SX011860 RL0 RR SX011860 RL0 VSP RR

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

SX 01 1860 INA CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing SX 01 1860

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post SX 01 1860 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> SX 01 1848 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/sx-01-1848-of-ina-cross-roller-bearing/ Mon, 23 Apr 2018 03:53:08 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=554 Designation Dimensions Weight d D B da Da Rs min S kg SX 01 1848 240 300 28 269.2 270.8 2 2.5 5.3

The post SX 01 1848 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

SX 01 1848 crossed roller bearing specification

  1. Model Code: SX series is outer ring circumferentially split and held together by three retaining rings of crossed roller bearing.
  2. Outer Diameter: 300 (unit: mm).
  3. Bore Diameter:   240 (unit: mm).
  4. Width: 28 (unit: mm).
  5. Weight: 5.3 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol:No sealed.
  8. Accuracy class: Including P0,P6,P5, P4
Designation Dimensions Weight
d D B da Da Rs min S kg
SX 01 1848 240 300 28 269.2 270.8 2 2.5 5.3
Basic loading rates(kN) Limiting speeds with standard clearance min. Limiting speeds with preload min.
Ca Coa Cr Cor oil grease oil grease
149 612 95 300 565 280 280 140
radial clearance axial tilting clearance Low clearance RLO max. preload VSP Running accuracy relative to raceway
min. max. min. max. radial preload min. max. radial axial
0.01 0.03 0.02 0.06 0.005 0.010 0.005 0.025 0.020 0.010

Similar products of SX 01 1848 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No.
SX011848 SX011848 VSP SX011848 VSP RR SX011848 RR
SX011848 RL0 SX011848 RL0 VSP SX011848 RL0 RR SX011848 RL0 VSP RR

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

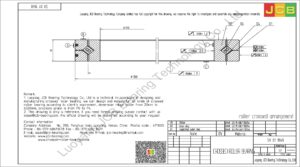

SX 01 1848 INA CROSSED ROLLER BEARING

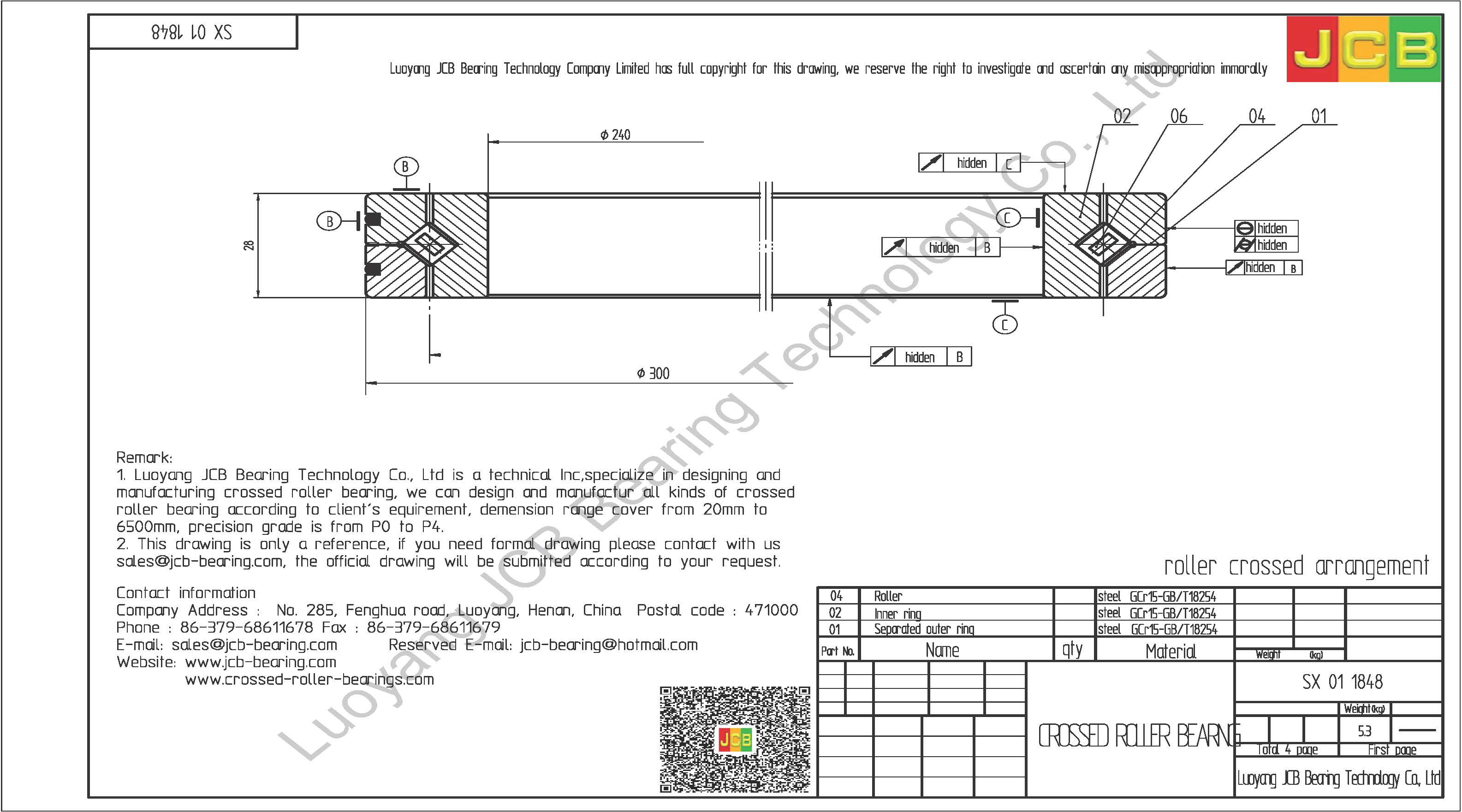

Download : drawing of crossed roller bearing SX 01 1848

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post SX 01 1848 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> SX 01 1840 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/sx-01-1840-of-ina-cross-roller-bearing/ Mon, 23 Apr 2018 03:52:33 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=553 Designation Dimensions Weight d D B da Da Rs min S kg SX 01 1840 200 250 24 224.2 225.5 1.5 2.5 3.1

The post SX 01 1840 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

SX 01 1840 crossed roller bearing specification

  1. Model Code: SX series is outer ring circumferentially split and held together by three retaining rings of crossed roller bearing.
  2. Outer Diameter: 250 (unit: mm).
  3. Bore Diameter:   200 (unit: mm).
  4. Width: 24 (unit: mm).
  5. Weight: 3.1 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol:No sealed.
  8. Accuracy class: Including P0,P6,P5, P4
Designation Dimensions Weight
d D B da Da Rs min S kg
SX 01 1840 200 250 24 224.2 225.5 1.5 2.5 3.1
Basic loading rates(kN) Limiting speeds with standard clearance min. Limiting speeds with preload min.
Ca Coa Cr Cor oil grease oil grease
106 425 68 208 680 340 340 170
radial clearance axial tilting clearance Low clearance RLO max. preload VSP Running accuracy relative to raceway
min. max. min. max. radial preload min. max. radial axial
0.005 0.025 0.01 0.05 0.005 0.010 0.005 0.025 0.015 0.010

Similar products of SX 01 1840 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No.
SX011840 SX011840 VSP SX011840 VSP RR SX011840 RR
SX011840 RL0 SX011840 RL0 VSP SX011840 RL0 RR SX011840 RL0 VSP RR

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

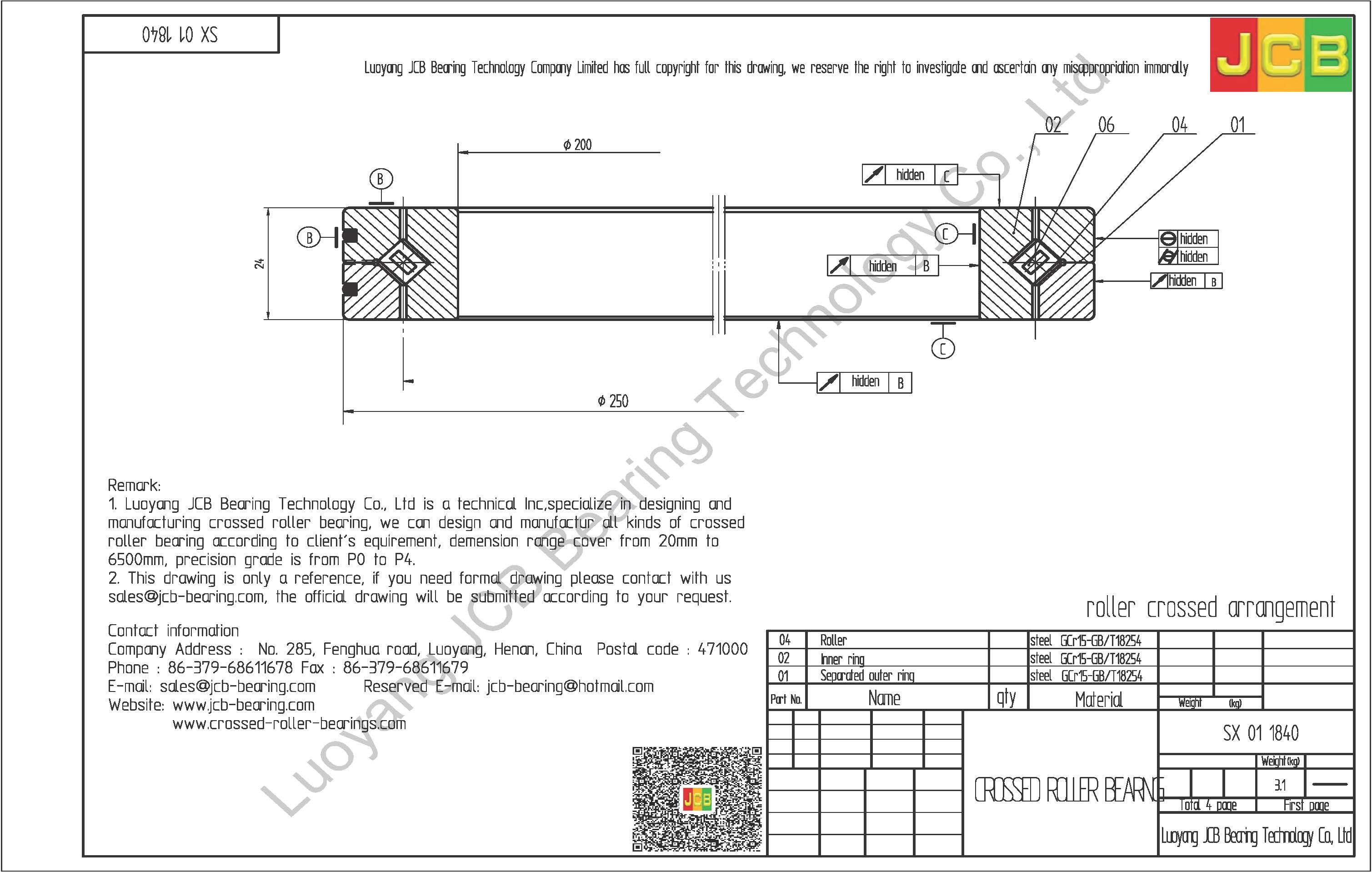

SX 01 1840 INA CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing SX 01 1840

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post SX 01 1840 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> SX 01 1836 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/sx-01-1836-of-ina-cross-roller-bearing/ Mon, 23 Apr 2018 03:51:02 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=552 Designation Dimensions Weight d D B da Da Rs min S kg SX 01 1836 180 225 22 201.2 202.8 1.1 2.5 2.3

The post SX 01 1836 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

SX 01 1836 crossed roller bearing specification

  1. Model Code: SX series is outer ring circumferentially split and held together by three retaining rings of crossed roller bearing.
  2. Outer Diameter: 225 (unit: mm).
  3. Bore Diameter:   180 (unit: mm).
  4. Width: 22 (unit: mm).
  5. Weight: 2.3 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol:No sealed.
  8. Accuracy class: Including P0,P6,P5, P4
Designation Dimensions Weight
d D B da Da Rs min S kg
SX 01 1836 180 225 22 201.2 202.8 1.1 2.5 2.3
Basic loading rates(kN) Limiting speeds with standard clearance min. Limiting speeds with preload min.
Ca Coa Cr Cor oil grease oil grease
98 381 63 187 755 375 375 185
radial clearance axial tilting clearance Low clearance RLO max. preload VSP Running accuracy relative to raceway
min. max. min. max. radial preload min. max. radial axial
0.005 0.025 0.01 0.05 0.005 0.010 0.005 0.025 0.015 0.010

Similar products of SX 01 1836 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No.
SX011836 SX011836 VSP SX011836 VSP RR SX011836 RR
SX011836 RL0 SX011836 RL0 VSP SX011836 RL0 RR SX011836 RL0 VSP RR

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

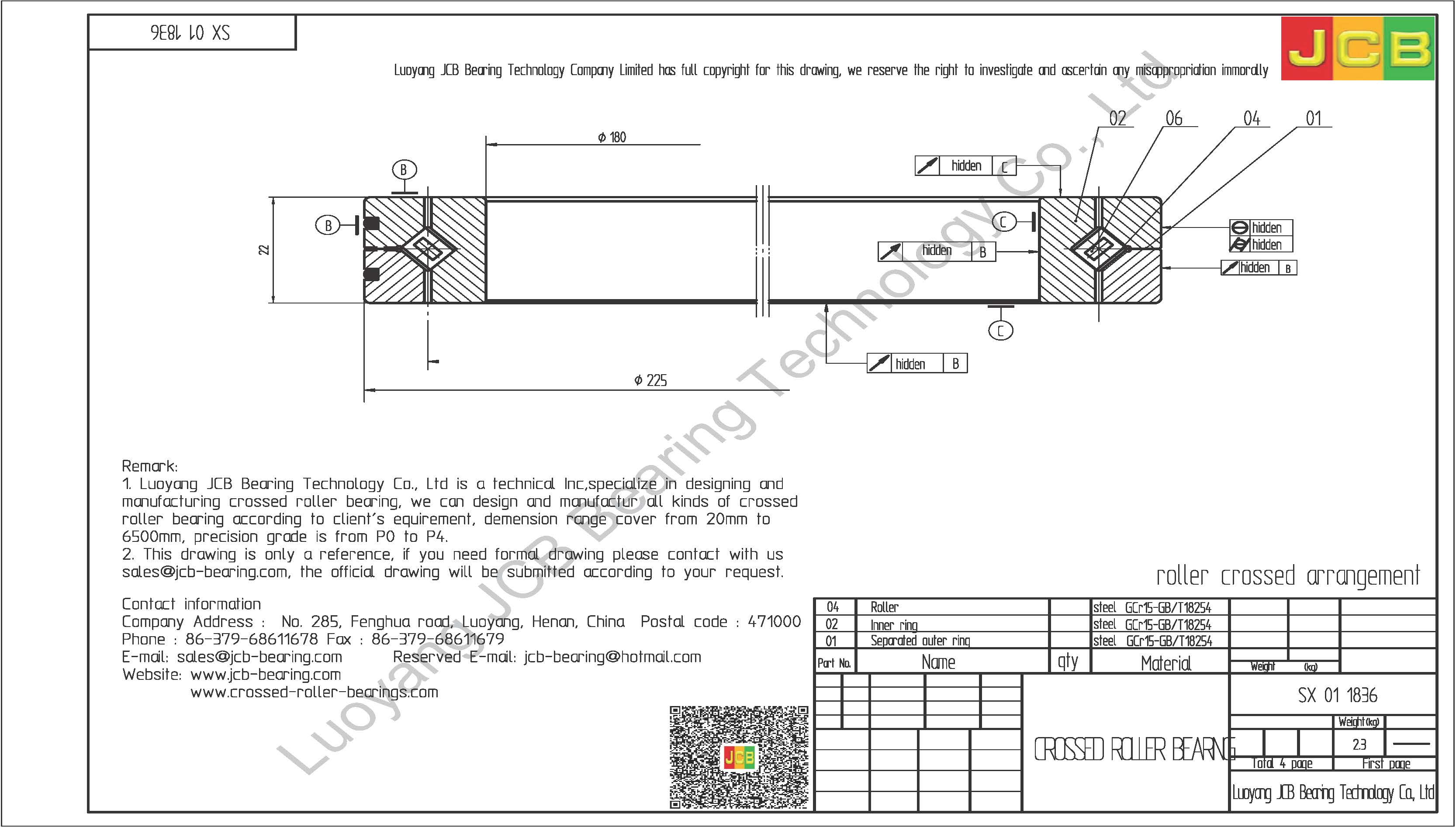

SX 01 1836 INA CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing SX 01 1836

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post SX 01 1836 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> SX 01 1832 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/sx-01-1832-of-ina-cross-roller-bearing/ Mon, 23 Apr 2018 03:50:34 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=551 Designation Dimensions Weight d D B da Da Rs min S kg SX 01 1832 160 200 20 179.2 180.8 1.1 2.5 1.7

The post SX 01 1832 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

SX 01 1832 crossed roller bearing specification

  1. Model Code: SX series is outer ring circumferentially split and held together by three retaining rings of crossed roller bearing.
  2. Outer Diameter: 200 (unit: mm).
  3. Bore Diameter:   160 (unit: mm).
  4. Width: 20 (unit: mm).
  5. Weight: 1.7 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol:No sealed.
  8. Accuracy class: Including P0,P6,P5, P4
Designation Dimensions Weight
d D B da Da Rs min S kg
SX 01 1832 160 200 20 179.2 180.8 1.1 2.5 1.7
Basic loading rates(kN) Limiting speeds with standard clearance min. Limiting speeds with preload min.
Ca Coa Cr Cor oil grease oil grease
69 272 44 133 850 425 425 210
radial clearance axial tilting clearance Low clearance RLO max. preload VSP Running accuracy relative to raceway
min. max. min. max. radial preload min. max. radial axial
0.005 0.02 0.01 0.04 0.004 0.008 0.005 0.020 0.015 0.010

Similar products of SX 01 1832 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No.
SX011832 SX011832 VSP SX011832 VSP RR SX011832 RR
SX011832 RL0 SX011832 RL0 VSP SX011832 RL0 RR SX011832 RL0 VSP RR

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

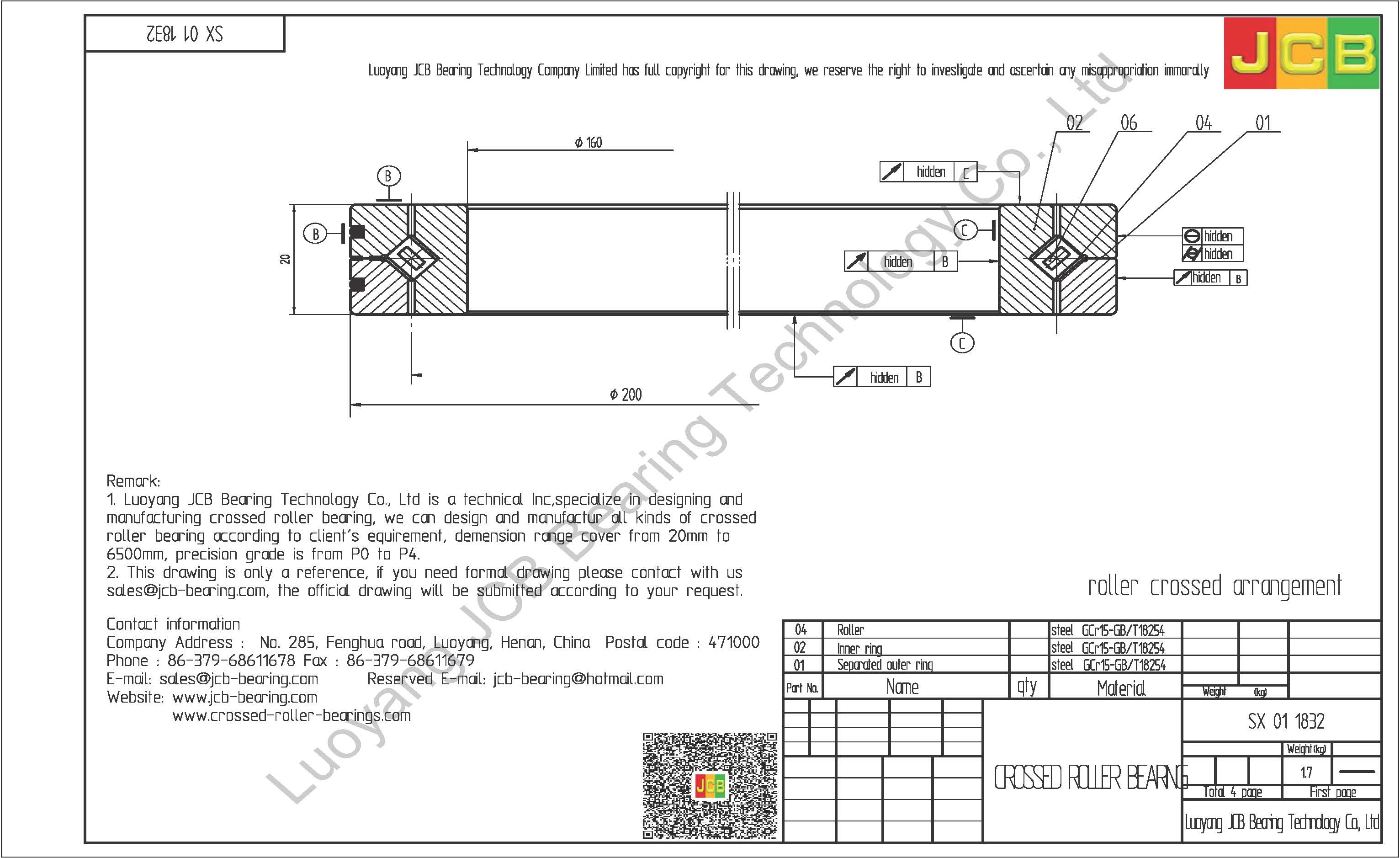

SX 01 1832 INA CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing SX 01 1832

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post SX 01 1832 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> SX 01 1828 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/sx-01-1828-of-ina-cross-roller-bearing/ Mon, 23 Apr 2018 03:49:29 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=550 Designation Dimensions Weight d D B da Da Rs min S kg SX 01 1828 140 175 18 156.3 157.7 1.1 2.5 1.1

The post SX 01 1828 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

SX 01 1828 crossed roller bearing specification

  1. Model Code: SX series is outer ring circumferentially split and held together by three retaining rings of crossed roller bearing.
  2. Outer Diameter: 175 (unit: mm).
  3. Bore Diameter:   140 (unit: mm).
  4. Width: 18 (unit: mm).
  5. Weight: 1.1 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol:No sealed.
  8. Accuracy class: Including P0,P6,P5, P4
Designation Dimensions Weight
d D B da Da Rs min S kg
SX 01 1828 140 175 18 156.3 157.7 1.1 2.5 1.1
Basic loading rates(kN) Limiting speeds with standard clearance min. Limiting speeds with preload min.
Ca Coa Cr Cor oil grease oil grease
64 237 41 116 975 485 485 240
radial clearance axial tilting clearance Low clearance RLO max. preload VSP Running accuracy relative to raceway
min. max. min. max. radial preload min. max. radial axial
0.005 0.02 0.01 0.04 0.004 0.008 0.005 0.020 0.015 0.010

Similar products of SX 01 1828 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No.
SX011828 SX011828 VSP SX011828 VSP RR SX011828 RR
SX011828 RL0 SX011828 RL0 VSP SX011828 RL0 RR SX011828 RL0 VSP RR

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

SX 01 1828 INA CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing SX 01 1828

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post SX 01 1828 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> SX 01 1824 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/sx-01-1824-of-ina-cross-roller-bearing/ Mon, 23 Apr 2018 03:48:59 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=549 Designation Dimensions Weight d D B da Da Rs min S kg SX 01 1824 120 150 16 134.4 135.6 1 2 0.8

The post SX 01 1824 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

SX 01 1824 crossed roller bearing specification

  1. Model Code: SX series is outer ring circumferentially split and held together by three retaining rings of crossed roller bearing.
  2. Outer Diameter: 150 (unit: mm).
  3. Bore Diameter:   120 (unit: mm).
  4. Width: 16 (unit: mm).
  5. Weight: 0.8 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol:No sealed.
  8. Accuracy class: Including P0,P6,P5, P4
Designation Dimensions Weight
d D B da Da Rs min S kg
SX 01 1824 120 150 16 134.4 135.6 1 2 0.8
Basic loading rates(kN) Limiting speeds with standard clearance min. Limiting speeds with preload min.
Ca Coa Cr Cor oil grease oil grease
41 153 26 75 1130 565 565 280
radial clearance axial tilting clearance Low clearance RLO max. preload VSP Running accuracy relative to raceway
min. max. min. max. radial preload min. max. radial axial
0.005 0.02 0.01 0.04 0.004 0.008 0.005 0.020 0.010 0.010

Similar products of SX 01 1824 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No.
SX011824 SX011824 VSP SX011824 VSP RR SX011824 RR
SX011824 RL0 SX011824 RL0 VSP SX011824 RL0 RR SX011824 RL0 VSP RR

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

SX 01 1824 INA CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing SX 01 1824

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post SX 01 1824 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]>
