RE SERIES OF JCB CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product-category/thk-cross-roller-bearing/re-series/ MANUFACTURER OF QUALITY CROSS ROLLER BEARING Tue, 31 Oct 2023 03:41:16 +0000 en-US hourly 1 https://www.cross-roller-bearing.com/wp-content/uploads/2018/05/cropped-JCB-标识4-32x32.jpg RE SERIES OF JCB CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product-category/thk-cross-roller-bearing/re-series/ 32 32 RE 40035 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/re-40035-crossed-roller-bearing/ Mon, 30 Jan 2023 02:02:37 +0000 https://www.cross-roller-bearing.com/?post_type=product&p=3663 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RE 40035 400 480 35 2.5 5 3 156 370 422 459 14.5

The post RE 40035 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

 RE 40035 crossed roller bearing specification

  1. Model Code: RE series is split inner ring type of crossed roller bearings with separators.
  2. Outer Diameter: 480(unit: mm).
  3. Bore Diameter:   400 (unit: mm).
  4. Width: 35 (unit: mm).
  5. Weight: 14.5 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0,C1.
  9. Accuracy class:Including P0,P6,PE6,P5,PE5,P4,PE4,P2,PE2.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0 C1
Above Or less Min. Max. Min. Max. Min. Max.
18 30 -8 0 0 15 15 35
30 50 -8 0 0 25 25 50
50 80 -10 0 0 30 30 60
80 120 -10 0 0 40 40 70
120 140 -10 0 0 40 40 80
140 160 -10 0 0 40 40 90
160 180 -10 0 0 50 50 100
180 200 -10 0 0 50 50 110
200 225 -10 0 0 60 60 120
225 250 -10 0 0 60 60 130
250 280 -15 0 0 80 80 150
280 315 -15 0 30 100 100 170
315 355 -15 0 30 110 110 190
355 400 -15 0 30 120 120 210
400 450 -20 0 30 130 130 230
450 500 -20 0 30 130 130 250
500 560 -20 0 30 150 150 280
560 630 -20 0 40 170 170 310
630 710 -20 0 40 190 190 350
710 800 -30 0 40 210 210 390
800 900 -30 0 40 230 230 430
900 1000 -30 0 50 260 260 480
1000 1120 -30 0 60 290 290 530
1120 1250 -30 0 60 320 320 580
1250 1400 -30 0 70 350 350 630

Similar products of RE 40035 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
RE40035 CC0 RE40035 C0 RE40035 C1 RE40035 UU CC0 RE40035 UU C0 RE40035 UU C1
RE40035 CC0 P6 RE40035 C0 P6 RE40035 C1 P6 RE40035 UU CC0 P6 RE40035 UU C0 P6 RE40035 UU C1 P6
RE40035 CC0 P5 RE40035 C0 P5 RE40035 C1 P5 RE40035 UU CC0 P5 RE40035 UU C0 P5 RE40035 UU C1 P5
RE40035 CC0 P4 RE40035 C0 P4 RE40035 C1 P4 RE40035 UU CC0 P4 RE40035 UU C0 P4 RE40035 UU C1 P4
RE40035 CC0 P2 RE40035 C0 P2 RE40035 C1 P2 RE40035 UU CC0 P2 RE40035 UU C0 P2 RE40035 UU C1 P2
RE40035 CC0 PE6 RE40035 C0 PE6 RE40035 C1 PE6 RE40035 UU CC0 PE6 RE40035 UU C0 PE6 RE40035 UU C1 PE6
RE40035 CC0 PE5 RE40035 C0 PE5 RE40035 C1 PE5 RE40035 UU CC0 PE5 RE40035 UU C0 PE5 RE40035 UU C1 PE5
RE40035 CC0 PE4 RE40035 C0 PE4 RE40035 C1 PE4 RE40035 UU CC0 PE4 RE40035 UU C0 PE4 RE40035 UU C1 PE4
RE40035 CC0 PE2 RE40035 C0 PE2 RE40035 C1 PE2 RE40035 UU CC0 PE2 RE40035 UU C0 PE2 RE40035 UU C1 PE2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RE 40035 THK CROSSED ROLLER BEARING;THK CROSSED ROLLER BEARING;THK CROSSED ROLLER BEARING;THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RE 40035

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RE 40035 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RE 60040 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/re-60040-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 09:16:28 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=838 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RE 60040 600 700 40 3 6 3 264 721 627 673 29

The post RE 60040 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

 RE 60040 crossed roller bearing specification

  1. Model Code: RE series is split inner ring type of crossed roller bearings with separators.
  2. Outer Diameter: 700 (unit: mm).
  3. Bore Diameter:   600 (unit: mm).
  4. Width: 40 (unit: mm).
  5. Weight: 29 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0,C1.
  9. Accuracy class:Including P0,P6,PE6,P5,PE5,P4,PE4,P2,PE2.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0 C1
Above Or less Min. Max. Min. Max. Min. Max.
18 30 -8 0 0 15 15 35
30 50 -8 0 0 25 25 50
50 80 -10 0 0 30 30 60
80 120 -10 0 0 40 40 70
120 140 -10 0 0 40 40 80
140 160 -10 0 0 40 40 90
160 180 -10 0 0 50 50 100
180 200 -10 0 0 50 50 110
200 225 -10 0 0 60 60 120
225 250 -10 0 0 60 60 130
250 280 -15 0 0 80 80 150
280 315 -15 0 30 100 100 170
315 355 -15 0 30 110 110 190
355 400 -15 0 30 120 120 210
400 450 -20 0 30 130 130 230
450 500 -20 0 30 130 130 250
500 560 -20 0 30 150 150 280
560 630 -20 0 40 170 170 310
630 710 -20 0 40 190 190 350
710 800 -30 0 40 210 210 390
800 900 -30 0 40 230 230 430
900 1000 -30 0 50 260 260 480
1000 1120 -30 0 60 290 290 530
1120 1250 -30 0 60 320 320 580
1250 1400 -30 0 70 350 350 630

Similar products of RE 60040 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
RE60040 CC0 RE60040 C0 RE60040 C1 RE60040 UU CC0 RE60040 UU C0 RE60040 UU C1
RE60040 CC0 P6 RE60040 C0 P6 RE60040 C1 P6 RE60040 UU CC0 P6 RE60040 UU C0 P6 RE60040 UU C1 P6
RE60040 CC0 P5 RE60040 C0 P5 RE60040 C1 P5 RE60040 UU CC0 P5 RE60040 UU C0 P5 RE60040 UU C1 P5
RE60040 CC0 P4 RE60040 C0 P4 RE60040 C1 P4 RE60040 UU CC0 P4 RE60040 UU C0 P4 RE60040 UU C1 P4
RE60040 CC0 P2 RE60040 C0 P2 RE60040 C1 P2 RE60040 UU CC0 P2 RE60040 UU C0 P2 RE60040 UU C1 P2
RE60040 CC0 PE6 RE60040 C0 PE6 RE60040 C1 PE6 RE60040 UU CC0 PE6 RE60040 UU C0 PE6 RE60040 UU C1 PE6
RE60040 CC0 PE5 RE60040 C0 PE5 RE60040 C1 PE5 RE60040 UU CC0 PE5 RE60040 UU C0 PE5 RE60040 UU C1 PE5
RE60040 CC0 PE4 RE60040 C0 PE4 RE60040 C1 PE4 RE60040 UU CC0 PE4 RE60040 UU C0 PE4 RE60040 UU C1 PE4
RE60040 CC0 PE2 RE60040 C0 PE2 RE60040 C1 PE2 RE60040 UU CC0 PE2 RE60040 UU C0 PE2 RE60040 UU C1 PE2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

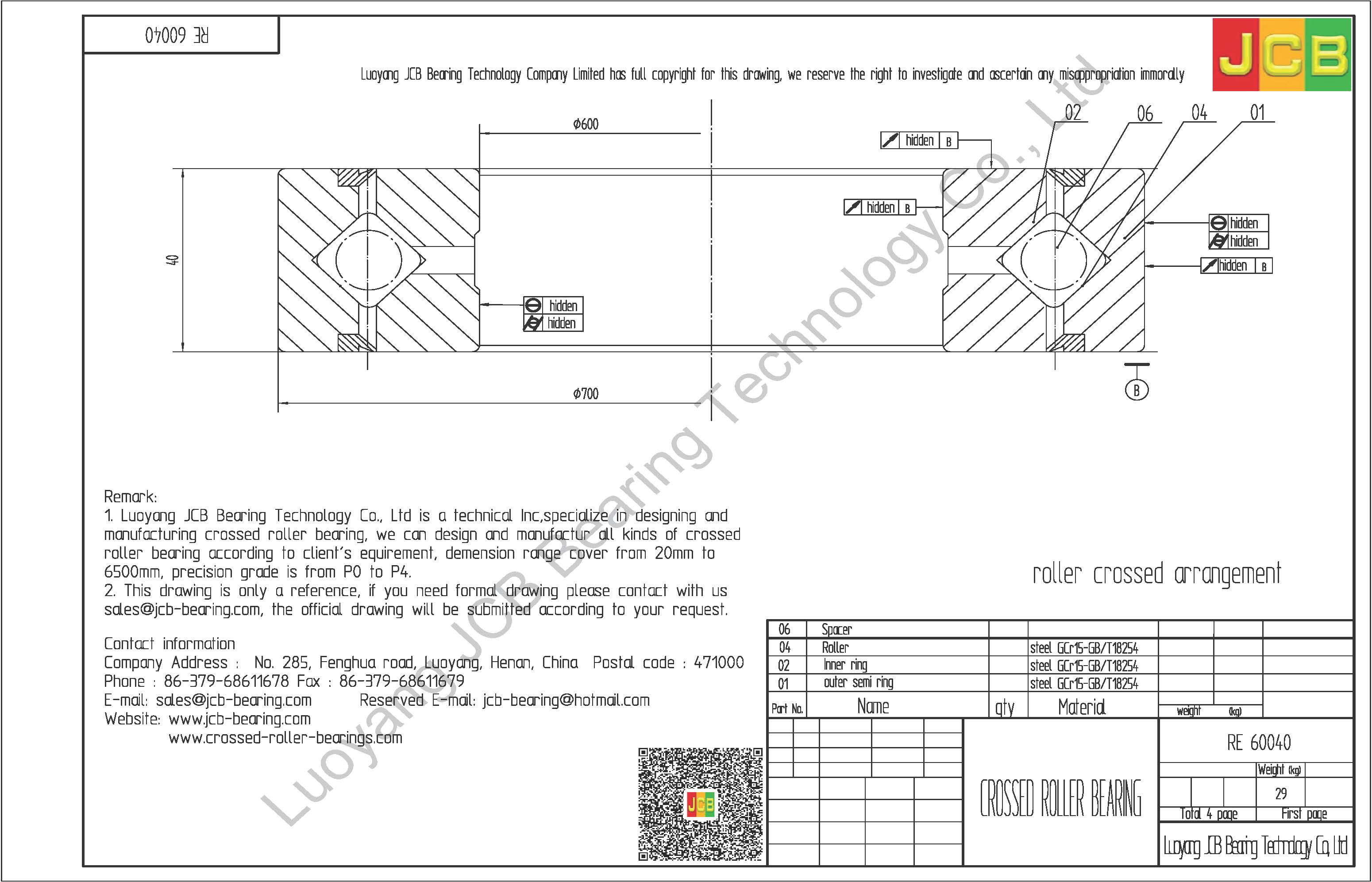

RE 60040 THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RE 60040

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RE 60040 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RE 50050 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/re-50050-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 09:15:56 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=837 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RE 50050 500 625 50 2.5 6 3.5 267 653 536 587 41.7

The post RE 50050 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

 RE 50050 crossed roller bearing specification

  1. Model Code: RE series is split inner ring type of crossed roller bearings with separators.
  2. Outer Diameter: 625 (unit: mm).
  3. Bore Diameter:   500 (unit: mm).
  4. Width: 50 (unit: mm).
  5. Weight: 41.7 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0,C1.
  9. Accuracy class:Including P0,P6,PE6,P5,PE5,P4,PE4,P2,PE2.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0 C1
Above Or less Min. Max. Min. Max. Min. Max.
18 30 -8 0 0 15 15 35
30 50 -8 0 0 25 25 50
50 80 -10 0 0 30 30 60
80 120 -10 0 0 40 40 70
120 140 -10 0 0 40 40 80
140 160 -10 0 0 40 40 90
160 180 -10 0 0 50 50 100
180 200 -10 0 0 50 50 110
200 225 -10 0 0 60 60 120
225 250 -10 0 0 60 60 130
250 280 -15 0 0 80 80 150
280 315 -15 0 30 100 100 170
315 355 -15 0 30 110 110 190
355 400 -15 0 30 120 120 210
400 450 -20 0 30 130 130 230
450 500 -20 0 30 130 130 250
500 560 -20 0 30 150 150 280
560 630 -20 0 40 170 170 310
630 710 -20 0 40 190 190 350
710 800 -30 0 40 210 210 390
800 900 -30 0 40 230 230 430
900 1000 -30 0 50 260 260 480
1000 1120 -30 0 60 290 290 530
1120 1250 -30 0 60 320 320 580
1250 1400 -30 0 70 350 350 630

Similar products of RE 50050 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
RE50050 CC0 RE50050 C0 RE50050 C1 RE50050 UU CC0 RE50050 UU C0 RE50050 UU C1
RE50050 CC0 P6 RE50050 C0 P6 RE50050 C1 P6 RE50050 UU CC0 P6 RE50050 UU C0 P6 RE50050 UU C1 P6
RE50050 CC0 P5 RE50050 C0 P5 RE50050 C1 P5 RE50050 UU CC0 P5 RE50050 UU C0 P5 RE50050 UU C1 P5
RE50050 CC0 P4 RE50050 C0 P4 RE50050 C1 P4 RE50050 UU CC0 P4 RE50050 UU C0 P4 RE50050 UU C1 P4
RE50050 CC0 P2 RE50050 C0 P2 RE50050 C1 P2 RE50050 UU CC0 P2 RE50050 UU C0 P2 RE50050 UU C1 P2
RE50050 CC0 PE6 RE50050 C0 PE6 RE50050 C1 PE6 RE50050 UU CC0 PE6 RE50050 UU C0 PE6 RE50050 UU C1 PE6
RE50050 CC0 PE5 RE50050 C0 PE5 RE50050 C1 PE5 RE50050 UU CC0 PE5 RE50050 UU C0 PE5 RE50050 UU C1 PE5
RE50050 CC0 PE4 RE50050 C0 PE4 RE50050 C1 PE4 RE50050 UU CC0 PE4 RE50050 UU C0 PE4 RE50050 UU C1 PE4
RE50050 CC0 PE2 RE50050 C0 PE2 RE50050 C1 PE2 RE50050 UU CC0 PE2 RE50050 UU C0 PE2 RE50050 UU C1 PE2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RE 50050 THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RE 50050

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RE 50050 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RE 50040 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/re-50040-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 09:15:35 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=836 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RE 50040 500 600 40 2.5 6 3 239 607 526 572 26

The post RE 50040 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

 RE 50040 crossed roller bearing specification

  1. Model Code: RE series is split inner ring type of crossed roller bearings with separators.
  2. Outer Diameter: 600 (unit: mm).
  3. Bore Diameter:   500 (unit: mm).
  4. Width: 40 (unit: mm).
  5. Weight: 26 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0,C1.
  9. Accuracy class:Including P0,P6,PE6,P5,PE5,P4,PE4,P2,PE2.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0 C1
Above Or less Min. Max. Min. Max. Min. Max.
18 30 -8 0 0 15 15 35
30 50 -8 0 0 25 25 50
50 80 -10 0 0 30 30 60
80 120 -10 0 0 40 40 70
120 140 -10 0 0 40 40 80
140 160 -10 0 0 40 40 90
160 180 -10 0 0 50 50 100
180 200 -10 0 0 50 50 110
200 225 -10 0 0 60 60 120
225 250 -10 0 0 60 60 130
250 280 -15 0 0 80 80 150
280 315 -15 0 30 100 100 170
315 355 -15 0 30 110 110 190
355 400 -15 0 30 120 120 210
400 450 -20 0 30 130 130 230
450 500 -20 0 30 130 130 250
500 560 -20 0 30 150 150 280
560 630 -20 0 40 170 170 310
630 710 -20 0 40 190 190 350
710 800 -30 0 40 210 210 390
800 900 -30 0 40 230 230 430
900 1000 -30 0 50 260 260 480
1000 1120 -30 0 60 290 290 530
1120 1250 -30 0 60 320 320 580
1250 1400 -30 0 70 350 350 630

Similar products of RE 50040 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
RE50040 CC0 RE50040 C0 RE50040 C1 RE50040 UU CC0 RE50040 UU C0 RE50040 UU C1
RE50040 CC0 P6 RE50040 C0 P6 RE50040 C1 P6 RE50040 UU CC0 P6 RE50040 UU C0 P6 RE50040 UU C1 P6
RE50040 CC0 P5 RE50040 C0 P5 RE50040 C1 P5 RE50040 UU CC0 P5 RE50040 UU C0 P5 RE50040 UU C1 P5
RE50040 CC0 P4 RE50040 C0 P4 RE50040 C1 P4 RE50040 UU CC0 P4 RE50040 UU C0 P4 RE50040 UU C1 P4
RE50040 CC0 P2 RE50040 C0 P2 RE50040 C1 P2 RE50040 UU CC0 P2 RE50040 UU C0 P2 RE50040 UU C1 P2
RE50040 CC0 PE6 RE50040 C0 PE6 RE50040 C1 PE6 RE50040 UU CC0 PE6 RE50040 UU C0 PE6 RE50040 UU C1 PE6
RE50040 CC0 PE5 RE50040 C0 PE5 RE50040 C1 PE5 RE50040 UU CC0 PE5 RE50040 UU C0 PE5 RE50040 UU C1 PE5
RE50040 CC0 PE4 RE50040 C0 PE4 RE50040 C1 PE4 RE50040 UU CC0 PE4 RE50040 UU C0 PE4 RE50040 UU C1 PE4
RE50040 CC0 PE2 RE50040 C0 PE2 RE50040 C1 PE2 RE50040 UU CC0 PE2 RE50040 UU C0 PE2 RE50040 UU C1 PE2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RE 50040 THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RE 50040

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com



The post RE 50040 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RE 50025 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/re-50025-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 09:15:11 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=835 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RE 50025 500 550 25 1 3.5 1.6 65.5 201 514 534 7.3

The post RE 50025 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

 RE 50025 crossed roller bearing specification

  1. Model Code: RE series is split inner ring type of crossed roller bearings with separators.
  2. Outer Diameter: 550 (unit: mm).
  3. Bore Diameter:   500 (unit: mm).
  4. Width: 25 (unit: mm).
  5. Weight: 7.3 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0,C1.
  9. Accuracy class:Including P0,P6,PE6,P5,PE5,P4,PE4,P2,PE2.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0 C1
Above Or less Min. Max. Min. Max. Min. Max.
18 30 -8 0 0 15 15 35
30 50 -8 0 0 25 25 50
50 80 -10 0 0 30 30 60
80 120 -10 0 0 40 40 70
120 140 -10 0 0 40 40 80
140 160 -10 0 0 40 40 90
160 180 -10 0 0 50 50 100
180 200 -10 0 0 50 50 110
200 225 -10 0 0 60 60 120
225 250 -10 0 0 60 60 130
250 280 -15 0 0 80 80 150
280 315 -15 0 30 100 100 170
315 355 -15 0 30 110 110 190
355 400 -15 0 30 120 120 210
400 450 -20 0 30 130 130 230
450 500 -20 0 30 130 130 250
500 560 -20 0 30 150 150 280
560 630 -20 0 40 170 170 310
630 710 -20 0 40 190 190 350
710 800 -30 0 40 210 210 390
800 900 -30 0 40 230 230 430
900 1000 -30 0 50 260 260 480
1000 1120 -30 0 60 290 290 530
1120 1250 -30 0 60 320 320 580
1250 1400 -30 0 70 350 350 630

Similar products of RE 50025 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
RE50025 CC0 RE50025 C0 RE50025 C1 RE50025 UU CC0 RE50025 UU C0 RE50025 UU C1
RE50025 CC0 P6 RE50025 C0 P6 RE50025 C1 P6 RE50025 UU CC0 P6 RE50025 UU C0 P6 RE50025 UU C1 P6
RE50025 CC0 P5 RE50025 C0 P5 RE50025 C1 P5 RE50025 UU CC0 P5 RE50025 UU C0 P5 RE50025 UU C1 P5
RE50025 CC0 P4 RE50025 C0 P4 RE50025 C1 P4 RE50025 UU CC0 P4 RE50025 UU C0 P4 RE50025 UU C1 P4
RE50025 CC0 P2 RE50025 C0 P2 RE50025 C1 P2 RE50025 UU CC0 P2 RE50025 UU C0 P2 RE50025 UU C1 P2
RE50025 CC0 PE6 RE50025 C0 PE6 RE50025 C1 PE6 RE50025 UU CC0 PE6 RE50025 UU C0 PE6 RE50025 UU C1 PE6
RE50025 CC0 PE5 RE50025 C0 PE5 RE50025 C1 PE5 RE50025 UU CC0 PE5 RE50025 UU C0 PE5 RE50025 UU C1 PE5
RE50025 CC0 PE4 RE50025 C0 PE4 RE50025 C1 PE4 RE50025 UU CC0 PE4 RE50025 UU C0 PE4 RE50025 UU C1 PE4
RE50025 CC0 PE2 RE50025 C0 PE2 RE50025 C1 PE2 RE50025 UU CC0 PE2 RE50025 UU C0 PE2 RE50025 UU C1 PE2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RE 50025 THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RE 50025

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RE 50025 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RE 45025 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/re-45025-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 09:14:46 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=834 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RE 45025 450 500 25 1 3.5 1.6 61.7 182 464 484 6.6

The post RE 45025 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

 RE 45025 crossed roller bearing specification

  1. Model Code: RE series is split inner ring type of crossed roller bearings with separators.
  2. Outer Diameter: 500 (unit: mm).
  3. Bore Diameter:   450 (unit: mm).
  4. Width: 25 (unit: mm).
  5. Weight: 6.6 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0,C1.
  9. Accuracy class:Including P0,P6,PE6,P5,PE5,P4,PE4,P2,PE2.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0 C1
Above Or less Min. Max. Min. Max. Min. Max.
18 30 -8 0 0 15 15 35
30 50 -8 0 0 25 25 50
50 80 -10 0 0 30 30 60
80 120 -10 0 0 40 40 70
120 140 -10 0 0 40 40 80
140 160 -10 0 0 40 40 90
160 180 -10 0 0 50 50 100
180 200 -10 0 0 50 50 110
200 225 -10 0 0 60 60 120
225 250 -10 0 0 60 60 130
250 280 -15 0 0 80 80 150
280 315 -15 0 30 100 100 170
315 355 -15 0 30 110 110 190
355 400 -15 0 30 120 120 210
400 450 -20 0 30 130 130 230
450 500 -20 0 30 130 130 250
500 560 -20 0 30 150 150 280
560 630 -20 0 40 170 170 310
630 710 -20 0 40 190 190 350
710 800 -30 0 40 210 210 390
800 900 -30 0 40 230 230 430
900 1000 -30 0 50 260 260 480
1000 1120 -30 0 60 290 290 530
1120 1250 -30 0 60 320 320 580
1250 1400 -30 0 70 350 350 630

Similar products of RE 45025 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
RE45025 CC0 RE45025 C0 RE45025 C1 RE45025 UU CC0 RE45025 UU C0 RE45025 UU C1
RE45025 CC0 P6 RE45025 C0 P6 RE45025 C1 P6 RE45025 UU CC0 P6 RE45025 UU C0 P6 RE45025 UU C1 P6
RE45025 CC0 P5 RE45025 C0 P5 RE45025 C1 P5 RE45025 UU CC0 P5 RE45025 UU C0 P5 RE45025 UU C1 P5
RE45025 CC0 P4 RE45025 C0 P4 RE45025 C1 P4 RE45025 UU CC0 P4 RE45025 UU C0 P4 RE45025 UU C1 P4
RE45025 CC0 P2 RE45025 C0 P2 RE45025 C1 P2 RE45025 UU CC0 P2 RE45025 UU C0 P2 RE45025 UU C1 P2
RE45025 CC0 PE6 RE45025 C0 PE6 RE45025 C1 PE6 RE45025 UU CC0 PE6 RE45025 UU C0 PE6 RE45025 UU C1 PE6
RE45025 CC0 PE5 RE45025 C0 PE5 RE45025 C1 PE5 RE45025 UU CC0 PE5 RE45025 UU C0 PE5 RE45025 UU C1 PE5
RE45025 CC0 PE4 RE45025 C0 PE4 RE45025 C1 PE4 RE45025 UU CC0 PE4 RE45025 UU C0 PE4 RE45025 UU C1 PE4
RE45025 CC0 PE2 RE45025 C0 PE2 RE45025 C1 PE2 RE45025 UU CC0 PE2 RE45025 UU C0 PE2 RE45025 UU C1 PE2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RE 45025 THK CROSSED ROLLER BEARING
RE 45025 THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RE 45025

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RE 45025 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RE 40040 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/re-40040-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 09:14:23 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=833 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RE 40040 400 510 40 2.5 6 3.5 241 531 428 479 23.5

The post RE 40040 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

 RE 40040 crossed roller bearing specification

  1. Model Code: RE series is split inner ring type of crossed roller bearings with separators.
  2. Outer Diameter: 510 (unit: mm).
  3. Bore Diameter:   400 (unit: mm).
  4. Width: 40 (unit: mm).
  5. Weight: 23.5 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0,C1.
  9. Accuracy class:Including P0,P6,PE6,P5,PE5,P4,PE4,P2,PE2.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0 C1
Above Or less Min. Max. Min. Max. Min. Max.
18 30 -8 0 0 15 15 35
30 50 -8 0 0 25 25 50
50 80 -10 0 0 30 30 60
80 120 -10 0 0 40 40 70
120 140 -10 0 0 40 40 80
140 160 -10 0 0 40 40 90
160 180 -10 0 0 50 50 100
180 200 -10 0 0 50 50 110
200 225 -10 0 0 60 60 120
225 250 -10 0 0 60 60 130
250 280 -15 0 0 80 80 150
280 315 -15 0 30 100 100 170
315 355 -15 0 30 110 110 190
355 400 -15 0 30 120 120 210
400 450 -20 0 30 130 130 230
450 500 -20 0 30 130 130 250
500 560 -20 0 30 150 150 280
560 630 -20 0 40 170 170 310
630 710 -20 0 40 190 190 350
710 800 -30 0 40 210 210 390
800 900 -30 0 40 230 230 430
900 1000 -30 0 50 260 260 480
1000 1120 -30 0 60 290 290 530
1120 1250 -30 0 60 320 320 580
1250 1400 -30 0 70 350 350 630

Similar products of RE 40040 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
RE40040 CC0 RE40040 C0 RE40040 C1 RE40040 UU CC0 RE40040 UU C0 RE40040 UU C1
RE40040 CC0 P6 RE40040 C0 P6 RE40040 C1 P6 RE40040 UU CC0 P6 RE40040 UU C0 P6 RE40040 UU C1 P6
RE40040 CC0 P5 RE40040 C0 P5 RE40040 C1 P5 RE40040 UU CC0 P5 RE40040 UU C0 P5 RE40040 UU C1 P5
RE40040 CC0 P4 RE40040 C0 P4 RE40040 C1 P4 RE40040 UU CC0 P4 RE40040 UU C0 P4 RE40040 UU C1 P4
RE40040 CC0 P2 RE40040 C0 P2 RE40040 C1 P2 RE40040 UU CC0 P2 RE40040 UU C0 P2 RE40040 UU C1 P2
RE40040 CC0 PE6 RE40040 C0 PE6 RE40040 C1 PE6 RE40040 UU CC0 PE6 RE40040 UU C0 PE6 RE40040 UU C1 PE6
RE40040 CC0 PE5 RE40040 C0 PE5 RE40040 C1 PE5 RE40040 UU CC0 PE5 RE40040 UU C0 PE5 RE40040 UU C1 PE5
RE40040 CC0 PE4 RE40040 C0 PE4 RE40040 C1 PE4 RE40040 UU CC0 PE4 RE40040 UU C0 PE4 RE40040 UU C1 PE4
RE40040 CC0 PE2 RE40040 C0 PE2 RE40040 C1 PE2 RE40040 UU CC0 PE2 RE40040 UU C0 PE2 RE40040 UU C1 PE2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RE 40040 THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RE 40040

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RE 40040 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RE 35020 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/re-35020-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 09:13:16 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=832 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RE 35020 350 400 20 2.5 3.5 1.6 54.1 143 363 383 3.9

The post RE 35020 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

 RE 35020 crossed roller bearing specification

  1. Model Code: RE series is split inner ring type of crossed roller bearings with separators.
  2. Outer Diameter: 400(unit: mm).
  3. Bore Diameter:   350 (unit: mm).
  4. Width: 20 (unit: mm).
  5. Weight: 3.9 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0,C1.
  9. Accuracy class:Including P0,P6,PE6,P5,PE5,P4,PE4,P2,PE2.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0 C1
Above Or less Min. Max. Min. Max. Min. Max.
18 30 -8 0 0 15 15 35
30 50 -8 0 0 25 25 50
50 80 -10 0 0 30 30 60
80 120 -10 0 0 40 40 70
120 140 -10 0 0 40 40 80
140 160 -10 0 0 40 40 90
160 180 -10 0 0 50 50 100
180 200 -10 0 0 50 50 110
200 225 -10 0 0 60 60 120
225 250 -10 0 0 60 60 130
250 280 -15 0 0 80 80 150
280 315 -15 0 30 100 100 170
315 355 -15 0 30 110 110 190
355 400 -15 0 30 120 120 210
400 450 -20 0 30 130 130 230
450 500 -20 0 30 130 130 250
500 560 -20 0 30 150 150 280
560 630 -20 0 40 170 170 310
630 710 -20 0 40 190 190 350
710 800 -30 0 40 210 210 390
800 900 -30 0 40 230 230 430
900 1000 -30 0 50 260 260 480
1000 1120 -30 0 60 290 290 530
1120 1250 -30 0 60 320 320 580
1250 1400 -30 0 70 350 350 630

Similar products of RE 35020 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
RE35020 CC0 RE35020 C0 RE35020 C1 RE35020 UU CC0 RE35020 UU C0 RE35020 UU C1
RE35020 CC0 P6 RE35020 C0 P6 RE35020 C1 P6 RE35020 UU CC0 P6 RE35020 UU C0 P6 RE35020 UU C1 P6
RE35020 CC0 P5 RE35020 C0 P5 RE35020 C1 P5 RE35020 UU CC0 P5 RE35020 UU C0 P5 RE35020 UU C1 P5
RE35020 CC0 P4 RE35020 C0 P4 RE35020 C1 P4 RE35020 UU CC0 P4 RE35020 UU C0 P4 RE35020 UU C1 P4
RE35020 CC0 P2 RE35020 C0 P2 RE35020 C1 P2 RE35020 UU CC0 P2 RE35020 UU C0 P2 RE35020 UU C1 P2
RE35020 CC0 PE6 RE35020 C0 PE6 RE35020 C1 PE6 RE35020 UU CC0 PE6 RE35020 UU C0 PE6 RE35020 UU C1 PE6
RE35020 CC0 PE5 RE35020 C0 PE5 RE35020 C1 PE5 RE35020 UU CC0 PE5 RE35020 UU C0 PE5 RE35020 UU C1 PE5
RE35020 CC0 PE4 RE35020 C0 PE4 RE35020 C1 PE4 RE35020 UU CC0 PE4 RE35020 UU C0 PE4 RE35020 UU C1 PE4
RE35020 CC0 PE2 RE35020 C0 PE2 RE35020 C1 PE2 RE35020 UU CC0 PE2 RE35020 UU C0 PE2 RE35020 UU C1 PE2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RE 35020 THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RE 35020

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RE 35020 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RE 30040 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/re-30040-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 09:12:50 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=831 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RE 30040 300 405 40 2.5 6 3.5 212 409 326 377 17.2

The post RE 30040 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

 RE 30040 crossed roller bearing specification

  1. Model Code: RE series is split inner ring type of crossed roller bearings with separators.
  2. Outer Diameter: 405 (unit: mm).
  3. Bore Diameter:   300 (unit: mm).
  4. Width: 40 (unit: mm).
  5. Weight: 17.2 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0,C1.
  9. Accuracy class:Including P0,P6,PE6,P5,PE5,P4,PE4,P2,PE2.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0 C1
Above Or less Min. Max. Min. Max. Min. Max.
18 30 -8 0 0 15 15 35
30 50 -8 0 0 25 25 50
50 80 -10 0 0 30 30 60
80 120 -10 0 0 40 40 70
120 140 -10 0 0 40 40 80
140 160 -10 0 0 40 40 90
160 180 -10 0 0 50 50 100
180 200 -10 0 0 50 50 110
200 225 -10 0 0 60 60 120
225 250 -10 0 0 60 60 130
250 280 -15 0 0 80 80 150
280 315 -15 0 30 100 100 170
315 355 -15 0 30 110 110 190
355 400 -15 0 30 120 120 210
400 450 -20 0 30 130 130 230
450 500 -20 0 30 130 130 250
500 560 -20 0 30 150 150 280
560 630 -20 0 40 170 170 310
630 710 -20 0 40 190 190 350
710 800 -30 0 40 210 210 390
800 900 -30 0 40 230 230 430
900 1000 -30 0 50 260 260 480
1000 1120 -30 0 60 290 290 530
1120 1250 -30 0 60 320 320 580
1250 1400 -30 0 70 350 350 630

Similar products of RE 30040 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
RE30040 CC0 RE30040 C0 RE30040 C1 RE30040 UU CC0 RE30040 UU C0 RE30040 UU C1
RE30040 CC0 P6 RE30040 C0 P6 RE30040 C1 P6 RE30040 UU CC0 P6 RE30040 UU C0 P6 RE30040 UU C1 P6
RE30040 CC0 P5 RE30040 C0 P5 RE30040 C1 P5 RE30040 UU CC0 P5 RE30040 UU C0 P5 RE30040 UU C1 P5
RE30040 CC0 P4 RE30040 C0 P4 RE30040 C1 P4 RE30040 UU CC0 P4 RE30040 UU C0 P4 RE30040 UU C1 P4
RE30040 CC0 P2 RE30040 C0 P2 RE30040 C1 P2 RE30040 UU CC0 P2 RE30040 UU C0 P2 RE30040 UU C1 P2
RE30040 CC0 PE6 RE30040 C0 PE6 RE30040 C1 PE6 RE30040 UU CC0 PE6 RE30040 UU C0 PE6 RE30040 UU C1 PE6
RE30040 CC0 PE5 RE30040 C0 PE5 RE30040 C1 PE5 RE30040 UU CC0 PE5 RE30040 UU C0 PE5 RE30040 UU C1 PE5
RE30040 CC0 PE4 RE30040 C0 PE4 RE30040 C1 PE4 RE30040 UU CC0 PE4 RE30040 UU C0 PE4 RE30040 UU C1 PE4
RE30040 CC0 PE2 RE30040 C0 PE2 RE30040 C1 PE2 RE30040 UU CC0 PE2 RE30040 UU C0 PE2 RE30040 UU C1 PE2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RE 30040 THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RE 30040

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RE 30040 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RE 30035 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/re-30035-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 09:10:35 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=827 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RE 30035 300 395 35 2.5 5 3 183 367 322 368 13.4

The post RE 30035 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

 RE 30035 crossed roller bearing specification

  1. Model Code: RE series is split inner ring type of crossed roller bearings with separators.
  2. Outer Diameter: 395 (unit: mm).
  3. Bore Diameter:   300 (unit: mm).
  4. Width: 35 (unit: mm).
  5. Weight: 13.4 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0,C1.
  9. Accuracy class:Including P0,P6,PE6,P5,PE5,P4,PE4,P2,PE2.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0 C1
Above Or less Min. Max. Min. Max. Min. Max.
18 30 -8 0 0 15 15 35
30 50 -8 0 0 25 25 50
50 80 -10 0 0 30 30 60
80 120 -10 0 0 40 40 70
120 140 -10 0 0 40 40 80
140 160 -10 0 0 40 40 90
160 180 -10 0 0 50 50 100
180 200 -10 0 0 50 50 110
200 225 -10 0 0 60 60 120
225 250 -10 0 0 60 60 130
250 280 -15 0 0 80 80 150
280 315 -15 0 30 100 100 170
315 355 -15 0 30 110 110 190
355 400 -15 0 30 120 120 210
400 450 -20 0 30 130 130 230
450 500 -20 0 30 130 130 250
500 560 -20 0 30 150 150 280
560 630 -20 0 40 170 170 310
630 710 -20 0 40 190 190 350
710 800 -30 0 40 210 210 390
800 900 -30 0 40 230 230 430
900 1000 -30 0 50 260 260 480
1000 1120 -30 0 60 290 290 530
1120 1250 -30 0 60 320 320 580
1250 1400 -30 0 70 350 350 630

Similar products of RE 30035 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
RE30035 CC0 RE30035 C0 RE30035 C1 RE30035 UU CC0 RE30035 UU C0 RE30035 UU C1
RE30035 CC0 P6 RE30035 C0 P6 RE30035 C1 P6 RE30035 UU CC0 P6 RE30035 UU C0 P6 RE30035 UU C1 P6
RE30035 CC0 P5 RE30035 C0 P5 RE30035 C1 P5 RE30035 UU CC0 P5 RE30035 UU C0 P5 RE30035 UU C1 P5
RE30035 CC0 P4 RE30035 C0 P4 RE30035 C1 P4 RE30035 UU CC0 P4 RE30035 UU C0 P4 RE30035 UU C1 P4
RE30035 CC0 P2 RE30035 C0 P2 RE30035 C1 P2 RE30035 UU CC0 P2 RE30035 UU C0 P2 RE30035 UU C1 P2
RE30035 CC0 PE6 RE30035 C0 PE6 RE30035 C1 PE6 RE30035 UU CC0 PE6 RE30035 UU C0 PE6 RE30035 UU C1 PE6
RE30035 CC0 PE5 RE30035 C0 PE5 RE30035 C1 PE5 RE30035 UU CC0 PE5 RE30035 UU C0 PE5 RE30035 UU C1 PE5
RE30035 CC0 PE4 RE30035 C0 PE4 RE30035 C1 PE4 RE30035 UU CC0 PE4 RE30035 UU C0 PE4 RE30035 UU C1 PE4
RE30035 CC0 PE2 RE30035 C0 PE2 RE30035 C1 PE2 RE30035 UU CC0 PE2 RE30035 UU C0 PE2 RE30035 UU C1 PE2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RE 30035 THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RE 30035

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RE 30035 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]>
