]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

RB 1250110 crossed roller bearing specification

  1. Model Code: RB series is split outer ring type of crossed roller bearings with separators.
  2. Outer Diameter: 1500 (unit: mm).
  3. Bore Diameter:  1250 (unit: mm).
  4. Width: 110 (unit: mm).
  5. Weight: 440.00 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0,C1.
  9. Accuracy class:Including P0,P6,PE6,P5,PE5,P4,PE4,P2,PE2.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0 C1
Above Or less Min. Max. Min. Max. Min. Max.
18 30 -8 0 0 15 15 35
30 50 -8 0 0 25 25 50
50 80 -10 0 0 30 30 60
80 120 -10 0 0 40 40 70
120 140 -10 0 0 40 40 80
140 160 -10 0 0 40 40 90
160 180 -10 0 0 50 50 100
180 200 -10 0 0 50 50 110
200 225 -10 0 0 60 60 120
225 250 -10 0 0 60 60 130
250 280 -15 0 0 80 80 150
280 315 -15 0 30 100 100 170
315 355 -15 0 30 110 110 190
355 400 -15 0 30 120 120 210
400 450 -20 0 30 130 130 230
450 500 -20 0 30 130 130 250
500 560 -20 0 30 150 150 280
560 630 -20 0 40 170 170 310
630 710 -20 0 40 190 190 350
710 800 -30 0 40 210 210 390
800 900 -30 0 40 230 230 430
900 1000 -30 0 50 260 260 480
1000 1120 -30 0 60 290 290 530
1120 1250 -30 0 60 320 320 580
1250 1400 -30 0 70 350 350 630

Similar products of RB 1250110 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
RB1250110 CC0 RB1250110 C0 RB1250110 C1 RB1250110 UU CC0 RB1250110 UU C0 RB1250110 UU C1
RB1250110 CC0 P6 RB1250110 C0 P6 RB1250110 C1 P6 RB1250110 UU CC0 P6 RB1250110 UU C0 P6 RB1250110 UU C1 P6
RB1250110 CC0 P5 RB1250110 C0 P5 RB1250110 C1 P5 RB1250110 UU CC0 P5 RB1250110 UU C0 P5 RB1250110 UU C1 P5
RB1250110 CC0 P4 RB1250110 C0 P4 RB1250110 C1 P4 RB1250110 UU CC0 P4 RB1250110 UU C0 P4 RB1250110 UU C1 P4
RB1250110 CC0 P2 RB1250110 C0 P2 RB1250110 C1 P2 RB1250110 UU CC0 P2 RB1250110 UU C0 P2 RB1250110 UU C1 P2
RB1250110 CC0 PE6 RB1250110 C0 PE6 RB1250110 C1 PE6 RB1250110 UU CC0 PE6 RB1250110 UU C0 PE6 RB1250110 UU C1 PE6
RB1250110 CC0 PE5 RB1250110 C0 PE5 RB1250110 C1 PE5 RB1250110 UU CC0 PE5 RB1250110 UU C0 PE5 RB1250110 UU C1 PE5
RB1250110 CC0 PE4 RB1250110 C0 PE4 RB1250110 C1 PE4 RB1250110 UU CC0 PE4 RB1250110 UU C0 PE4 RB1250110 UU C1 PE4
RB1250110 CC0 PE2 RB1250110 C0 PE2 RB1250110 C1 PE2 RB1250110 UU CC0 PE2 RB1250110 UU C0 PE2 RB1250110 UU C1 PE2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RB 1250110 THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RB 1250110

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RB 1250110 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RB 1000110 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/rb-1000110-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 08:46:36 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=777 Model No. Main dim.(mm) Greasing hole Basic loading rates(kN) Shoulder height Weight d D B rmin a b C Co ds(max) Dh(min) kg RB 1000110 1000 1250 110 5 6 6 1220 3220 1057 1171 360

The post RB 1000110 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

RB 1000110 crossed roller bearing specification

  1. Model Code: RB series is split outer ring type of crossed roller bearings with separators.
  2. Outer Diameter: 1250 (unit: mm).
  3. Bore Diameter:  1000 (unit: mm).
  4. Width: 110 (unit: mm).
  5. Weight: 360 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0,C1.
  9. Accuracy class:Including P0,P6,PE6,P5,PE5,P4,PE4,P2,PE2.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0 C1
Above Or less Min. Max. Min. Max. Min. Max.
18 30 -8 0 0 15 15 35
30 50 -8 0 0 25 25 50
50 80 -10 0 0 30 30 60
80 120 -10 0 0 40 40 70
120 140 -10 0 0 40 40 80
140 160 -10 0 0 40 40 90
160 180 -10 0 0 50 50 100
180 200 -10 0 0 50 50 110
200 225 -10 0 0 60 60 120
225 250 -10 0 0 60 60 130
250 280 -15 0 0 80 80 150
280 315 -15 0 30 100 100 170
315 355 -15 0 30 110 110 190
355 400 -15 0 30 120 120 210
400 450 -20 0 30 130 130 230
450 500 -20 0 30 130 130 250
500 560 -20 0 30 150 150 280
560 630 -20 0 40 170 170 310
630 710 -20 0 40 190 190 350
710 800 -30 0 40 210 210 390
800 900 -30 0 40 230 230 430
900 1000 -30 0 50 260 260 480
1000 1120 -30 0 60 290 290 530
1120 1250 -30 0 60 320 320 580
1250 1400 -30 0 70 350 350 630

Similar products of RB 1000110 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
RB1000110 CC0 RB1000110 C0 RB1000110 C1 RB1000110 UU CC0 RB1000110 UU C0 RB1000110 UU C1
RB1000110 CC0 P6 RB1000110 C0 P6 RB1000110 C1 P6 RB1000110 UU CC0 P6 RB1000110 UU C0 P6 RB1000110 UU C1 P6
RB1000110 CC0 P5 RB1000110 C0 P5 RB1000110 C1 P5 RB1000110 UU CC0 P5 RB1000110 UU C0 P5 RB1000110 UU C1 P5
RB1000110 CC0 P4 RB1000110 C0 P4 RB1000110 C1 P4 RB1000110 UU CC0 P4 RB1000110 UU C0 P4 RB1000110 UU C1 P4
RB1000110 CC0 P2 RB1000110 C0 P2 RB1000110 C1 P2 RB1000110 UU CC0 P2 RB1000110 UU C0 P2 RB1000110 UU C1 P2
RB1000110 CC0 PE6 RB1000110 C0 PE6 RB1000110 C1 PE6 RB1000110 UU CC0 PE6 RB1000110 UU C0 PE6 RB1000110 UU C1 PE6
RB1000110 CC0 PE5 RB1000110 C0 PE5 RB1000110 C1 PE5 RB1000110 UU CC0 PE5 RB1000110 UU C0 PE5 RB1000110 UU C1 PE5
RB1000110 CC0 PE4 RB1000110 C0 PE4 RB1000110 C1 PE4 RB1000110 UU CC0 PE4 RB1000110 UU C0 PE4 RB1000110 UU C1 PE4
RB1000110 CC0 PE2 RB1000110 C0 PE2 RB1000110 C1 PE2 RB1000110 UU CC0 PE2 RB1000110 UU C0 PE2 RB1000110 UU C1 PE2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

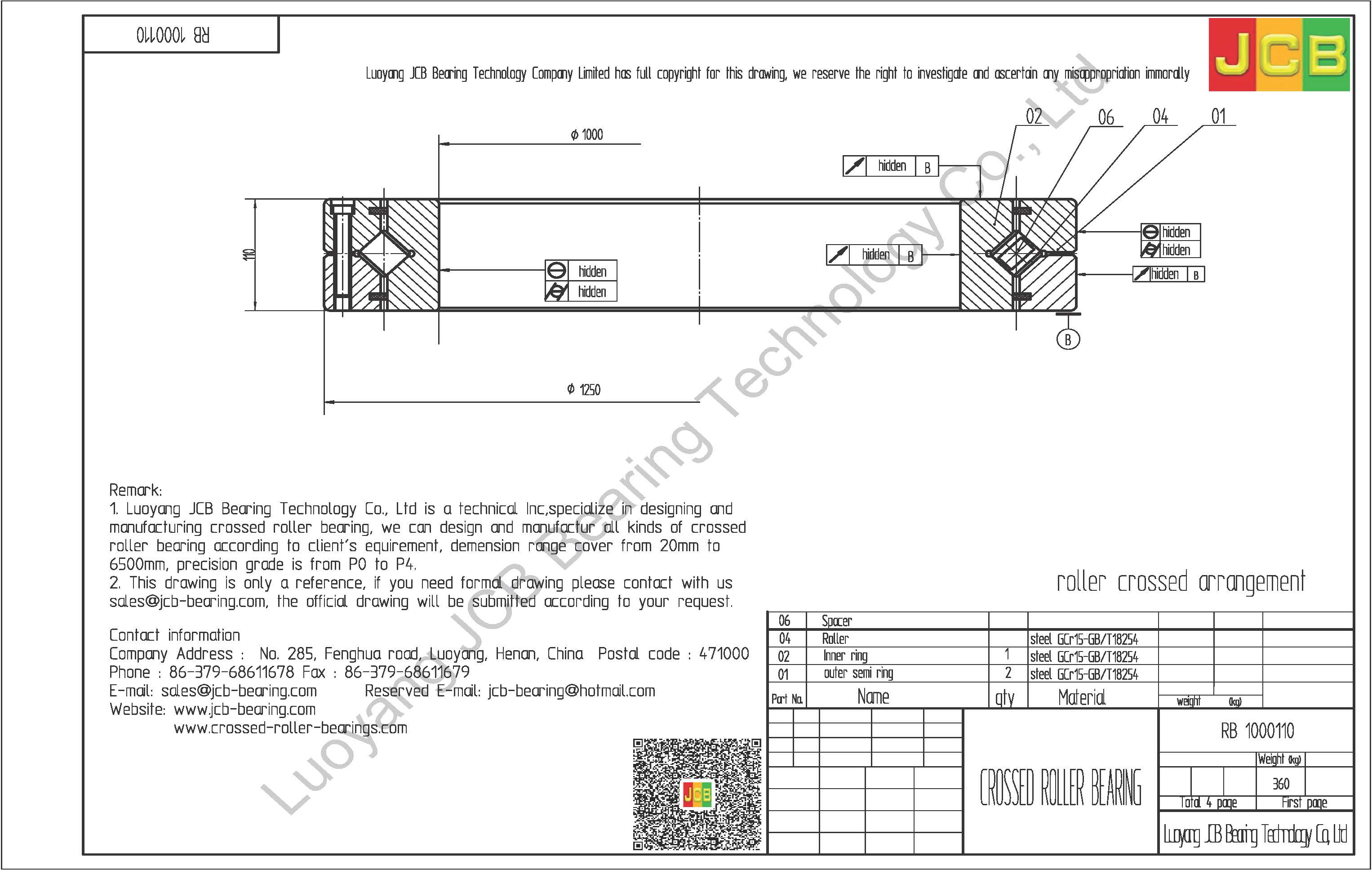

RB 1000110 THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RB 1000110

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RB 1000110 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RB 90070 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/rb-90070-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 08:46:10 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=776 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RB 90070 900 1050 70 4 6 4 494 149 937 1001 120

The post RB 90070 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

RB 90070 crossed roller bearing specification

  1. Model Code: RB series is split outer ring type of crossed roller bearings with separators.
  2. Outer Diameter: 1050 (unit: mm).
  3. Bore Diameter:  900 (unit: mm).
  4. Width: 70 (unit: mm).
  5. Weight: 120.00 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0,C1.
  9. Accuracy class:Including P0,P6,PE6,P5,PE5,P4,PE4,P2,PE2.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0 C1
Above Or less Min. Max. Min. Max. Min. Max.
18 30 -8 0 0 15 15 35
30 50 -8 0 0 25 25 50
50 80 -10 0 0 30 30 60
80 120 -10 0 0 40 40 70
120 140 -10 0 0 40 40 80
140 160 -10 0 0 40 40 90
160 180 -10 0 0 50 50 100
180 200 -10 0 0 50 50 110
200 225 -10 0 0 60 60 120
225 250 -10 0 0 60 60 130
250 280 -15 0 0 80 80 150
280 315 -15 0 30 100 100 170
315 355 -15 0 30 110 110 190
355 400 -15 0 30 120 120 210
400 450 -20 0 30 130 130 230
450 500 -20 0 30 130 130 250
500 560 -20 0 30 150 150 280
560 630 -20 0 40 170 170 310
630 710 -20 0 40 190 190 350
710 800 -30 0 40 210 210 390
800 900 -30 0 40 230 230 430
900 1000 -30 0 50 260 260 480
1000 1120 -30 0 60 290 290 530
1120 1250 -30 0 60 320 320 580
1250 1400 -30 0 70 350 350 630

Similar products of RB 90070 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
RB90070 CC0 RB90070 C0 RB90070 C1 RB90070 UU CC0 RB90070 UU C0 RB90070 UU C1
RB90070 CC0 P6 RB90070 C0 P6 RB90070 C1 P6 RB90070 UU CC0 P6 RB90070 UU C0 P6 RB90070 UU C1 P6
RB90070 CC0 P5 RB90070 C0 P5 RB90070 C1 P5 RB90070 UU CC0 P5 RB90070 UU C0 P5 RB90070 UU C1 P5
RB90070 CC0 P4 RB90070 C0 P4 RB90070 C1 P4 RB90070 UU CC0 P4 RB90070 UU C0 P4 RB90070 UU C1 P4
RB90070 CC0 P2 RB90070 C0 P2 RB90070 C1 P2 RB90070 UU CC0 P2 RB90070 UU C0 P2 RB90070 UU C1 P2
RB90070 CC0 PE6 RB90070 C0 PE6 RB90070 C1 PE6 RB90070 UU CC0 PE6 RB90070 UU C0 PE6 RB90070 UU C1 PE6
RB90070 CC0 PE5 RB90070 C0 PE5 RB90070 C1 PE5 RB90070 UU CC0 PE5 RB90070 UU C0 PE5 RB90070 UU C1 PE5
RB90070 CC0 PE4 RB90070 C0 PE4 RB90070 C1 PE4 RB90070 UU CC0 PE4 RB90070 UU C0 PE4 RB90070 UU C1 PE4
RB90070 CC0 PE2 RB90070 C0 PE2 RB90070 C1 PE2 RB90070 UU CC0 PE2 RB90070 UU C0 PE2 RB90070 UU C1 PE2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RB 90070 THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RB 90070

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RB 90070 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RB 80070 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/rb-80070-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 08:45:42 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=775 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RB 80070 800 950 70 4 6 4 468 1330 836 900 105

The post RB 80070 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

RB 80070 crossed roller bearing specification

  1. Model Code: RB series is split outer ring type of crossed roller bearings with separators.
  2. Outer Diameter: 950 (unit: mm).
  3. Bore Diameter:  800 (unit: mm).
  4. Width: 70 (unit: mm).
  5. Weight: 105.00 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0,C1.
  9. Accuracy class:Including P0,P6,PE6,P5,PE5,P4,PE4,P2,PE2.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0 C1
Above Or less Min. Max. Min. Max. Min. Max.
18 30 -8 0 0 15 15 35
30 50 -8 0 0 25 25 50
50 80 -10 0 0 30 30 60
80 120 -10 0 0 40 40 70
120 140 -10 0 0 40 40 80
140 160 -10 0 0 40 40 90
160 180 -10 0 0 50 50 100
180 200 -10 0 0 50 50 110
200 225 -10 0 0 60 60 120
225 250 -10 0 0 60 60 130
250 280 -15 0 0 80 80 150
280 315 -15 0 30 100 100 170
315 355 -15 0 30 110 110 190
355 400 -15 0 30 120 120 210
400 450 -20 0 30 130 130 230
450 500 -20 0 30 130 130 250
500 560 -20 0 30 150 150 280
560 630 -20 0 40 170 170 310
630 710 -20 0 40 190 190 350
710 800 -30 0 40 210 210 390
800 900 -30 0 40 230 230 430
900 1000 -30 0 50 260 260 480
1000 1120 -30 0 60 290 290 530
1120 1250 -30 0 60 320 320 580
1250 1400 -30 0 70 350 350 630

Similar products of RB 80070 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
RB80070 CC0 RB80070 C0 RB80070 C1 RB80070 UU CC0 RB80070 UU C0 RB80070 UU C1
RB80070 CC0 P6 RB80070 C0 P6 RB80070 C1 P6 RB80070 UU CC0 P6 RB80070 UU C0 P6 RB80070 UU C1 P6
RB80070 CC0 P5 RB80070 C0 P5 RB80070 C1 P5 RB80070 UU CC0 P5 RB80070 UU C0 P5 RB80070 UU C1 P5
RB80070 CC0 P4 RB80070 C0 P4 RB80070 C1 P4 RB80070 UU CC0 P4 RB80070 UU C0 P4 RB80070 UU C1 P4
RB80070 CC0 P2 RB80070 C0 P2 RB80070 C1 P2 RB80070 UU CC0 P2 RB80070 UU C0 P2 RB80070 UU C1 P2
RB80070 CC0 PE6 RB80070 C0 PE6 RB80070 C1 PE6 RB80070 UU CC0 PE6 RB80070 UU C0 PE6 RB80070 UU C1 PE6
RB80070 CC0 PE5 RB80070 C0 PE5 RB80070 C1 PE5 RB80070 UU CC0 PE5 RB80070 UU C0 PE5 RB80070 UU C1 PE5
RB80070 CC0 PE4 RB80070 C0 PE4 RB80070 C1 PE4 RB80070 UU CC0 PE4 RB80070 UU C0 PE4 RB80070 UU C1 PE4
RB80070 CC0 PE2 RB80070 C0 PE2 RB80070 C1 PE2 RB80070 UU CC0 PE2 RB80070 UU C0 PE2 RB80070 UU C1 PE2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RB 80070 THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RB 80070

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RB 80070 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RB 70045 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/rb-70045-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 08:45:14 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=774 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RB 70045 700 815 45 3 6 3 281 836 731 777 46

The post RB 70045 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

RB 70045 crossed roller bearing specification

  1. Model Code: RB series is split outer ring type of crossed roller bearings with separators.
  2. Outer Diameter: 815 (unit: mm).
  3. Bore Diameter:  700 (unit: mm).
  4. Width: 45 (unit: mm).
  5. Weight: 46.00 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0,C1.
  9. Accuracy class:Including P0,P6,PE6,P5,PE5,P4,PE4,P2,PE2.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0 C1
Above Or less Min. Max. Min. Max. Min. Max.
18 30 -8 0 0 15 15 35
30 50 -8 0 0 25 25 50
50 80 -10 0 0 30 30 60
80 120 -10 0 0 40 40 70
120 140 -10 0 0 40 40 80
140 160 -10 0 0 40 40 90
160 180 -10 0 0 50 50 100
180 200 -10 0 0 50 50 110
200 225 -10 0 0 60 60 120
225 250 -10 0 0 60 60 130
250 280 -15 0 0 80 80 150
280 315 -15 0 30 100 100 170
315 355 -15 0 30 110 110 190
355 400 -15 0 30 120 120 210
400 450 -20 0 30 130 130 230
450 500 -20 0 30 130 130 250
500 560 -20 0 30 150 150 280
560 630 -20 0 40 170 170 310
630 710 -20 0 40 190 190 350
710 800 -30 0 40 210 210 390
800 900 -30 0 40 230 230 430
900 1000 -30 0 50 260 260 480
1000 1120 -30 0 60 290 290 530
1120 1250 -30 0 60 320 320 580
1250 1400 -30 0 70 350 350 630

Similar products of RB 70045 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
RB70045 CC0 RB70045 C0 RB70045 C1 RB70045 UU CC0 RB70045 UU C0 RB70045 UU C1
RB70045 CC0 P6 RB70045 C0 P6 RB70045 C1 P6 RB70045 UU CC0 P6 RB70045 UU C0 P6 RB70045 UU C1 P6
RB70045 CC0 P5 RB70045 C0 P5 RB70045 C1 P5 RB70045 UU CC0 P5 RB70045 UU C0 P5 RB70045 UU C1 P5
RB70045 CC0 P4 RB70045 C0 P4 RB70045 C1 P4 RB70045 UU CC0 P4 RB70045 UU C0 P4 RB70045 UU C1 P4
RB70045 CC0 P2 RB70045 C0 P2 RB70045 C1 P2 RB70045 UU CC0 P2 RB70045 UU C0 P2 RB70045 UU C1 P2
RB70045 CC0 PE6 RB70045 C0 PE6 RB70045 C1 PE6 RB70045 UU CC0 PE6 RB70045 UU C0 PE6 RB70045 UU C1 PE6
RB70045 CC0 PE5 RB70045 C0 PE5 RB70045 C1 PE5 RB70045 UU CC0 PE5 RB70045 UU C0 PE5 RB70045 UU C1 PE5
RB70045 CC0 PE4 RB70045 C0 PE4 RB70045 C1 PE4 RB70045 UU CC0 PE4 RB70045 UU C0 PE4 RB70045 UU C1 PE4
RB70045 CC0 PE2 RB70045 C0 PE2 RB70045 C1 PE2 RB70045 UU CC0 PE2 RB70045 UU C0 PE2 RB70045 UU C1 PE2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RB 70045 THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RB 70045

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RB 70045 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RB 60040 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/rb-60040-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 08:44:51 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=773 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RB 60040 600 700 40 3 6 3 264 721 627 673 29

The post RB 60040 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

RB 60040 crossed roller bearing specification

  1. Model Code: RB series is split outer ring type of crossed roller bearings with separators.
  2. Outer Diameter: 700 (unit: mm).
  3. Bore Diameter:  600 (unit: mm).
  4. Width: 40 (unit: mm).
  5. Weight: 29.00 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0,C1.
  9. Accuracy class:Including P0,P6,PE6,P5,PE5,P4,PE4,P2,PE2.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0 C1
Above Or less Min. Max. Min. Max. Min. Max.
18 30 -8 0 0 15 15 35
30 50 -8 0 0 25 25 50
50 80 -10 0 0 30 30 60
80 120 -10 0 0 40 40 70
120 140 -10 0 0 40 40 80
140 160 -10 0 0 40 40 90
160 180 -10 0 0 50 50 100
180 200 -10 0 0 50 50 110
200 225 -10 0 0 60 60 120
225 250 -10 0 0 60 60 130
250 280 -15 0 0 80 80 150
280 315 -15 0 30 100 100 170
315 355 -15 0 30 110 110 190
355 400 -15 0 30 120 120 210
400 450 -20 0 30 130 130 230
450 500 -20 0 30 130 130 250
500 560 -20 0 30 150 150 280
560 630 -20 0 40 170 170 310
630 710 -20 0 40 190 190 350
710 800 -30 0 40 210 210 390
800 900 -30 0 40 230 230 430
900 1000 -30 0 50 260 260 480
1000 1120 -30 0 60 290 290 530
1120 1250 -30 0 60 320 320 580
1250 1400 -30 0 70 350 350 630

Similar products of RB 60040 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
RB60040 CC0 RB60040 C0 RB60040 C1 RB60040 UU CC0 RB60040 UU C0 RB60040 UU C1
RB60040 CC0 P6 RB60040 C0 P6 RB60040 C1 P6 RB60040 UU CC0 P6 RB60040 UU C0 P6 RB60040 UU C1 P6
RB60040 CC0 P5 RB60040 C0 P5 RB60040 C1 P5 RB60040 UU CC0 P5 RB60040 UU C0 P5 RB60040 UU C1 P5
RB60040 CC0 P4 RB60040 C0 P4 RB60040 C1 P4 RB60040 UU CC0 P4 RB60040 UU C0 P4 RB60040 UU C1 P4
RB60040 CC0 P2 RB60040 C0 P2 RB60040 C1 P2 RB60040 UU CC0 P2 RB60040 UU C0 P2 RB60040 UU C1 P2
RB60040 CC0 PE6 RB60040 C0 PE6 RB60040 C1 PE6 RB60040 UU CC0 PE6 RB60040 UU C0 PE6 RB60040 UU C1 PE6
RB60040 CC0 PE5 RB60040 C0 PE5 RB60040 C1 PE5 RB60040 UU CC0 PE5 RB60040 UU C0 PE5 RB60040 UU C1 PE5
RB60040 CC0 PE4 RB60040 C0 PE4 RB60040 C1 PE4 RB60040 UU CC0 PE4 RB60040 UU C0 PE4 RB60040 UU C1 PE4
RB60040 CC0 PE2 RB60040 C0 PE2 RB60040 C1 PE2 RB60040 UU CC0 PE2 RB60040 UU C0 PE2 RB60040 UU C1 PE2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RB 60040 THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RB 60040

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RB 60040 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RB 50050 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/rb-50050-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 08:44:26 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=772 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RB 50050 500 625 50 2.5 6 3.5 267 653 536 587 41.7

The post RB 50050 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

RB 50050 crossed roller bearing specification

  1. Model Code: RB series is split outer ring type of crossed roller bearings with separators.
  2. Outer Diameter: 625 (unit: mm).
  3. Bore Diameter:  500 (unit: mm).
  4. Width: 50 (unit: mm).
  5. Weight: 41.70 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0,C1.
  9. Accuracy class:Including P0,P6,PE6,P5,PE5,P4,PE4,P2,PE2.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0 C1
Above Or less Min. Max. Min. Max. Min. Max.
18 30 -8 0 0 15 15 35
30 50 -8 0 0 25 25 50
50 80 -10 0 0 30 30 60
80 120 -10 0 0 40 40 70
120 140 -10 0 0 40 40 80
140 160 -10 0 0 40 40 90
160 180 -10 0 0 50 50 100
180 200 -10 0 0 50 50 110
200 225 -10 0 0 60 60 120
225 250 -10 0 0 60 60 130
250 280 -15 0 0 80 80 150
280 315 -15 0 30 100 100 170
315 355 -15 0 30 110 110 190
355 400 -15 0 30 120 120 210
400 450 -20 0 30 130 130 230
450 500 -20 0 30 130 130 250
500 560 -20 0 30 150 150 280
560 630 -20 0 40 170 170 310
630 710 -20 0 40 190 190 350
710 800 -30 0 40 210 210 390
800 900 -30 0 40 230 230 430
900 1000 -30 0 50 260 260 480
1000 1120 -30 0 60 290 290 530
1120 1250 -30 0 60 320 320 580
1250 1400 -30 0 70 350 350 630

Similar products of RB 50050 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
RB50050 CC0 RB50050 C0 RB50050 C1 RB50050 UU CC0 RB50050 UU C0 RB50050 UU C1
RB50050 CC0 P6 RB50050 C0 P6 RB50050 C1 P6 RB50050 UU CC0 P6 RB50050 UU C0 P6 RB50050 UU C1 P6
RB50050 CC0 P5 RB50050 C0 P5 RB50050 C1 P5 RB50050 UU CC0 P5 RB50050 UU C0 P5 RB50050 UU C1 P5
RB50050 CC0 P4 RB50050 C0 P4 RB50050 C1 P4 RB50050 UU CC0 P4 RB50050 UU C0 P4 RB50050 UU C1 P4
RB50050 CC0 P2 RB50050 C0 P2 RB50050 C1 P2 RB50050 UU CC0 P2 RB50050 UU C0 P2 RB50050 UU C1 P2
RB50050 CC0 PE6 RB50050 C0 PE6 RB50050 C1 PE6 RB50050 UU CC0 PE6 RB50050 UU C0 PE6 RB50050 UU C1 PE6
RB50050 CC0 PE5 RB50050 C0 PE5 RB50050 C1 PE5 RB50050 UU CC0 PE5 RB50050 UU C0 PE5 RB50050 UU C1 PE5
RB50050 CC0 PE4 RB50050 C0 PE4 RB50050 C1 PE4 RB50050 UU CC0 PE4 RB50050 UU C0 PE4 RB50050 UU C1 PE4
RB50050 CC0 PE2 RB50050 C0 PE2 RB50050 C1 PE2 RB50050 UU CC0 PE2 RB50050 UU C0 PE2 RB50050 UU C1 PE2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RB 50050 THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RB 50050

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RB 50050 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RB 50040 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/rb-50040-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 08:44:00 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=771 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RB 50040 500 600 40 2.5 6 3 239 607 536 572 26

The post RB 50040 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

RB 50040 crossed roller bearing specification

  1. Model Code: RB series is split outer ring type of crossed roller bearings with separators.
  2. Outer Diameter: 600 (unit: mm).
  3. Bore Diameter:  500 (unit: mm).
  4. Width: 40 (unit: mm).
  5. Weight: 26.00 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0,C1.
  9. Accuracy class:Including P0,P6,PE6,P5,PE5,P4,PE4,P2,PE2.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0 C1
Above Or less Min. Max. Min. Max. Min. Max.
18 30 -8 0 0 15 15 35
30 50 -8 0 0 25 25 50
50 80 -10 0 0 30 30 60
80 120 -10 0 0 40 40 70
120 140 -10 0 0 40 40 80
140 160 -10 0 0 40 40 90
160 180 -10 0 0 50 50 100
180 200 -10 0 0 50 50 110
200 225 -10 0 0 60 60 120
225 250 -10 0 0 60 60 130
250 280 -15 0 0 80 80 150
280 315 -15 0 30 100 100 170
315 355 -15 0 30 110 110 190
355 400 -15 0 30 120 120 210
400 450 -20 0 30 130 130 230
450 500 -20 0 30 130 130 250
500 560 -20 0 30 150 150 280
560 630 -20 0 40 170 170 310
630 710 -20 0 40 190 190 350
710 800 -30 0 40 210 210 390
800 900 -30 0 40 230 230 430
900 1000 -30 0 50 260 260 480
1000 1120 -30 0 60 290 290 530
1120 1250 -30 0 60 320 320 580
1250 1400 -30 0 70 350 350 630

Similar products of RB 50040 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
RB50040 CC0 RB50040 C0 RB50040 C1 RB50040 UU CC0 RB50040 UU C0 RB50040 UU C1
RB50040 CC0 P6 RB50040 C0 P6 RB50040 C1 P6 RB50040 UU CC0 P6 RB50040 UU C0 P6 RB50040 UU C1 P6
RB50040 CC0 P5 RB50040 C0 P5 RB50040 C1 P5 RB50040 UU CC0 P5 RB50040 UU C0 P5 RB50040 UU C1 P5
RB50040 CC0 P4 RB50040 C0 P4 RB50040 C1 P4 RB50040 UU CC0 P4 RB50040 UU C0 P4 RB50040 UU C1 P4
RB50040 CC0 P2 RB50040 C0 P2 RB50040 C1 P2 RB50040 UU CC0 P2 RB50040 UU C0 P2 RB50040 UU C1 P2
RB50040 CC0 PE6 RB50040 C0 PE6 RB50040 C1 PE6 RB50040 UU CC0 PE6 RB50040 UU C0 PE6 RB50040 UU C1 PE6
RB50040 CC0 PE5 RB50040 C0 PE5 RB50040 C1 PE5 RB50040 UU CC0 PE5 RB50040 UU C0 PE5 RB50040 UU C1 PE5
RB50040 CC0 PE4 RB50040 C0 PE4 RB50040 C1 PE4 RB50040 UU CC0 PE4 RB50040 UU C0 PE4 RB50040 UU C1 PE4
RB50040 CC0 PE2 RB50040 C0 PE2 RB50040 C1 PE2 RB50040 UU CC0 PE2 RB50040 UU C0 PE2 RB50040 UU C1 PE2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RB 50040 THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RB 50040

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RB 50040 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RB 50025 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/rb-50025-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 08:43:35 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=770 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RB 50025 500 550 25 1 6 1.6 65.5 201 514 534 7.3

The post RB 50025 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

RB 50025 crossed roller bearing specification

  1. Model Code: RB series is split outer ring type of crossed roller bearings with separators.
  2. Outer Diameter: 550 (unit: mm).
  3. Bore Diameter:  500 (unit: mm).
  4. Width: 25 (unit: mm).
  5. Weight: 7.30 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0,C1.
  9. Accuracy class:Including P0,P6,PE6,P5,PE5,P4,PE4,P2,PE2.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0 C1
Above Or less Min. Max. Min. Max. Min. Max.
18 30 -8 0 0 15 15 35
30 50 -8 0 0 25 25 50
50 80 -10 0 0 30 30 60
80 120 -10 0 0 40 40 70
120 140 -10 0 0 40 40 80
140 160 -10 0 0 40 40 90
160 180 -10 0 0 50 50 100
180 200 -10 0 0 50 50 110
200 225 -10 0 0 60 60 120
225 250 -10 0 0 60 60 130
250 280 -15 0 0 80 80 150
280 315 -15 0 30 100 100 170
315 355 -15 0 30 110 110 190
355 400 -15 0 30 120 120 210
400 450 -20 0 30 130 130 230
450 500 -20 0 30 130 130 250
500 560 -20 0 30 150 150 280
560 630 -20 0 40 170 170 310
630 710 -20 0 40 190 190 350
710 800 -30 0 40 210 210 390
800 900 -30 0 40 230 230 430
900 1000 -30 0 50 260 260 480
1000 1120 -30 0 60 290 290 530
1120 1250 -30 0 60 320 320 580
1250 1400 -30 0 70 350 350 630

Similar products of RB 50025 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
RB50025 CC0 RB50025 C0 RB50025 C1 RB50025 UU CC0 RB50025 UU C0 RB50025 UU C1
RB50025 CC0 P6 RB50025 C0 P6 RB50025 C1 P6 RB50025 UU CC0 P6 RB50025 UU C0 P6 RB50025 UU C1 P6
RB50025 CC0 P5 RB50025 C0 P5 RB50025 C1 P5 RB50025 UU CC0 P5 RB50025 UU C0 P5 RB50025 UU C1 P5
RB50025 CC0 P4 RB50025 C0 P4 RB50025 C1 P4 RB50025 UU CC0 P4 RB50025 UU C0 P4 RB50025 UU C1 P4
RB50025 CC0 P2 RB50025 C0 P2 RB50025 C1 P2 RB50025 UU CC0 P2 RB50025 UU C0 P2 RB50025 UU C1 P2
RB50025 CC0 PE6 RB50025 C0 PE6 RB50025 C1 PE6 RB50025 UU CC0 PE6 RB50025 UU C0 PE6 RB50025 UU C1 PE6
RB50025 CC0 PE5 RB50025 C0 PE5 RB50025 C1 PE5 RB50025 UU CC0 PE5 RB50025 UU C0 PE5 RB50025 UU C1 PE5
RB50025 CC0 PE4 RB50025 C0 PE4 RB50025 C1 PE4 RB50025 UU CC0 PE4 RB50025 UU C0 PE4 RB50025 UU C1 PE4
RB50025 CC0 PE2 RB50025 C0 PE2 RB50025 C1 PE2 RB50025 UU CC0 PE2 RB50025 UU C0 PE2 RB50025 UU C1 PE2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RB 50025 THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RB 50025

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RB 50025 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> RB 45025 CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/rb-45025-of-thk-cross-roller-bearing/ Mon, 23 Apr 2018 08:43:10 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=769 Model No. Main dimensions(mm) Greasing hole Basic loading rates(kN) Shoulder height Mass d D B rmin a b C Co ds(max) Dh(min) kg RB 45025 450 500 25 1 3.5 1.6 61.7 182 464 484 6.6

The post RB 45025 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

RB 45025 crossed roller bearing specification

  1. Model Code: RB series is split outer ring type of crossed roller bearings with separators.
  2. Outer Diameter: 500 (unit: mm).
  3. Bore Diameter:  450 (unit: mm).
  4. Width: 25 (unit: mm).
  5. Weight: 6.60 KG
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides. )
  8. Radial internal clearance:CC0,C0,C1.
  9. Accuracy class:Including P0,P6,PE6,P5,PE5,P4,PE4,P2,PE2.

Radial internal clearance

Pitch circle diameter of the roller(dp)(mm) CC0 C0 C1
Above Or less Min. Max. Min. Max. Min. Max.
18 30 -8 0 0 15 15 35
30 50 -8 0 0 25 25 50
50 80 -10 0 0 30 30 60
80 120 -10 0 0 40 40 70
120 140 -10 0 0 40 40 80
140 160 -10 0 0 40 40 90
160 180 -10 0 0 50 50 100
180 200 -10 0 0 50 50 110
200 225 -10 0 0 60 60 120
225 250 -10 0 0 60 60 130
250 280 -15 0 0 80 80 150
280 315 -15 0 30 100 100 170
315 355 -15 0 30 110 110 190
355 400 -15 0 30 120 120 210
400 450 -20 0 30 130 130 230
450 500 -20 0 30 130 130 250
500 560 -20 0 30 150 150 280
560 630 -20 0 40 170 170 310
630 710 -20 0 40 190 190 350
710 800 -30 0 40 210 210 390
800 900 -30 0 40 230 230 430
900 1000 -30 0 50 260 260 480
1000 1120 -30 0 60 290 290 530
1120 1250 -30 0 60 320 320 580
1250 1400 -30 0 70 350 350 630

Similar products of RB 45025 crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
RB45025 CC0 RB45025 C0 RB45025 C1 RB45025 UU CC0 RB45025 UU C0 RB45025 UU C1
RB45025 CC0 P6 RB45025 C0 P6 RB45025 C1 P6 RB45025 UU CC0 P6 RB45025 UU C0 P6 RB45025 UU C1 P6
RB45025 CC0 P5 RB45025 C0 P5 RB45025 C1 P5 RB45025 UU CC0 P5 RB45025 UU C0 P5 RB45025 UU C1 P5
RB45025 CC0 P4 RB45025 C0 P4 RB45025 C1 P4 RB45025 UU CC0 P4 RB45025 UU C0 P4 RB45025 UU C1 P4
RB45025 CC0 P2 RB45025 C0 P2 RB45025 C1 P2 RB45025 UU CC0 P2 RB45025 UU C0 P2 RB45025 UU C1 P2
RB45025 CC0 PE6 RB45025 C0 PE6 RB45025 C1 PE6 RB45025 UU CC0 PE6 RB45025 UU C0 PE6 RB45025 UU C1 PE6
RB45025 CC0 PE5 RB45025 C0 PE5 RB45025 C1 PE5 RB45025 UU CC0 PE5 RB45025 UU C0 PE5 RB45025 UU C1 PE5
RB45025 CC0 PE4 RB45025 C0 PE4 RB45025 C1 PE4 RB45025 UU CC0 PE4 RB45025 UU C0 PE4 RB45025 UU C1 PE4
RB45025 CC0 PE2 RB45025 C0 PE2 RB45025 C1 PE2 RB45025 UU CC0 PE2 RB45025 UU C0 PE2 RB45025 UU C1 PE2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

RB 45025 THK CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing RB 45025

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post RB 45025 CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]>
