CRBS SERIES OF JCB CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product-category/iko-cross-roller-bearing/crbs/ MANUFACTURER OF QUALITY CROSS ROLLER BEARING Wed, 07 Jun 2023 03:26:36 +0000 en-US hourly 1 https://www.cross-roller-bearing.com/wp-content/uploads/2018/05/cropped-JCB-标识4-32x32.jpg CRBS SERIES OF JCB CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product-category/iko-cross-roller-bearing/crbs/ 32 32 CRBS 20013 V UU CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/crbs-20013-v-uu-of-iko-cross-roller-bearing/ Mon, 23 Apr 2018 03:44:29 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=541 Bearing No. Boundary dim.（mm） Basic loading rates(N) Mounting dimensions(mm) Weight d D B rmin C Co da Da g CRBS 20013 VUU 200 226 13 0.6 30000 72200 206 219 780

The post CRBS 20013 V UU CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

CRBS 20013 V UU crossed roller bearing specification

  1. Model Code: CRBS…V series is  slim type of crossed roller bearing with full complement.
  2. Outer Diameter: 226 (unit: mm).
  3. Bore Diameter:   200 (unit: mm).
  4. Width: 13 (unit: mm).
  5. Weight: 780 G
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides.U signifies seal on one side.)
  8. Radial internal clearance: T1,C1
  9. Accuracy class: Including P0

Radial internal clearance

Nominal bore diameter of bearing T1(μm) C1(μm) C2(μm)
mm Min. Max. Min. Max. Min. Max.
50 -8 0 0 15 30 56
60 -8 0 0 15 30 56
70 -8 0 0 15 30 56
80 -8 0 0 15 41 66
90 -8 0 0 15 41 66
100 -8 0 0 15 41 66
110 -8 0 0 15 41 66
120 -8 0 0 15 51 76
130 -8 0 0 15 51 76
140 -8 0 0 15 51 76
150 -8 0 0 15 51 76
160 -10 0 0 20 51 76
170 -10 0 0 20 51 76
180 -10 0 0 20 61 86
190 -10 0 0 20 61 86
200 -10 0 0 20 61 86

Similar products of CRBS 20013 V UU crossed roller bearing

Bearing No. Bearing No. Bearing No.
CRBS20013 V CRBS20013 V UU CRBS20013 V U
CRBS20013 V T1 CRBS20013 V UU T1 CRBS20013 V U T1
CRBS20013 V C1 CRBS20013 V UU C1 CRBS20013 V U C1



How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

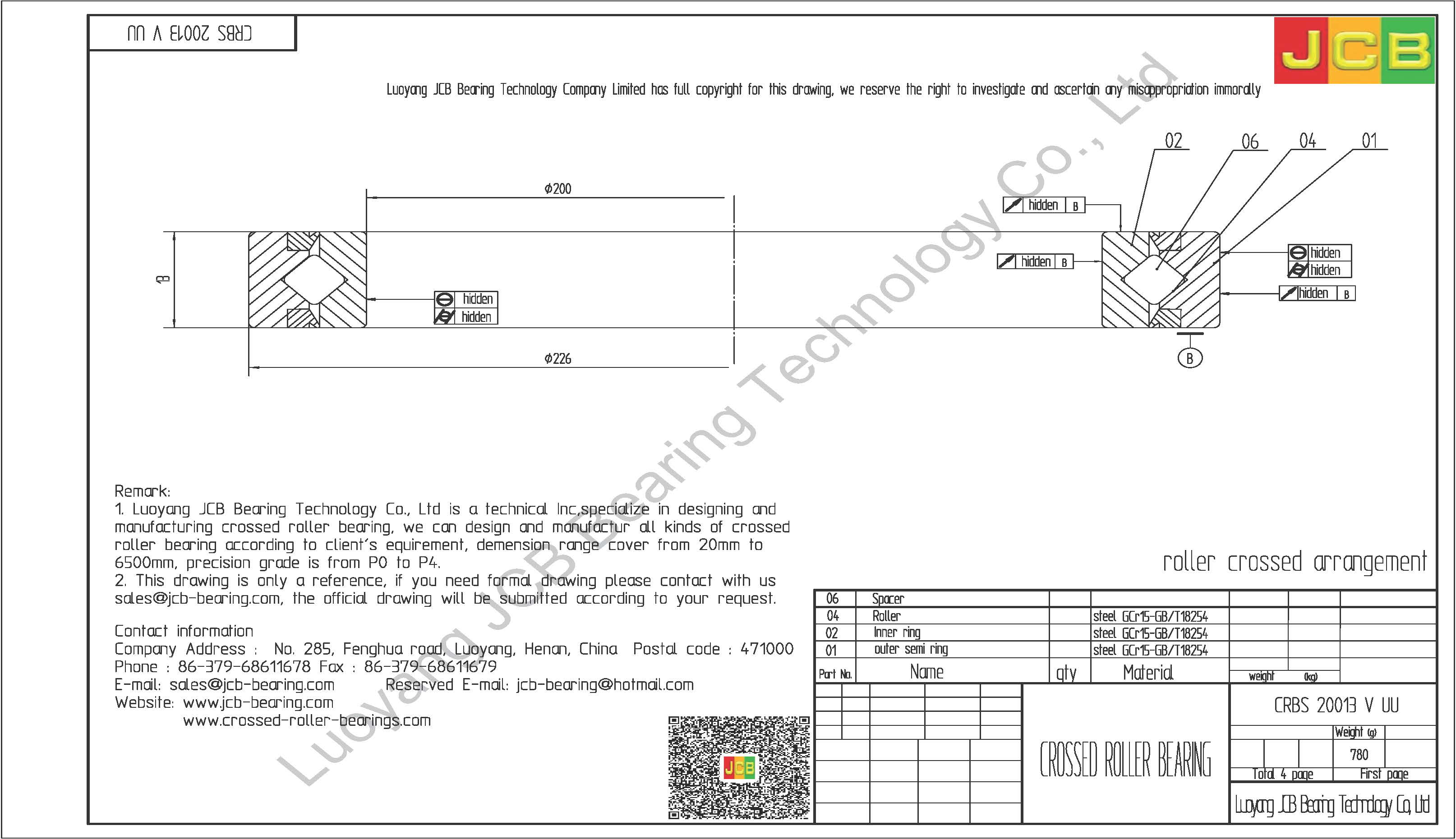

CRBS 20013 V UU IKO CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing CRBS 20013 V UU

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post CRBS 20013 V UU CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> CRBS 19013 V UU CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/crbs-19013-v-uu-of-iko-cross-roller-bearing/ Mon, 23 Apr 2018 03:40:58 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=540 Bearing No. Boundary dim.（mm） Basic loading rates(N) Mounting dimensions(mm) Weight d D B rmin C Co da Da g CRBS 19013 VUU 190 216 13 0.6 29300 68600 196 209 740

The post CRBS 19013 V UU CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

CRBS 19013 V UU crossed roller bearing specification

  1. Model Code: CRBS…V series is slim type of crossed roller bearing with full complement.
  2. Outer Diameter: 216 (unit: mm).
  3. Bore Diameter:   190 (unit: mm).
  4. Width: 13 (unit: mm).
  5. Weight: 740 G
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides.U signifies seal on one side.)
  8. Radial internal clearance: T1,C1
  9. Accuracy class: Including P0

Radial internal clearance

Nominal bore diameter of bearing T1(μm) C1(μm) C2(μm)
mm Min. Max. Min. Max. Min. Max.
50 -8 0 0 15 30 56
60 -8 0 0 15 30 56
70 -8 0 0 15 30 56
80 -8 0 0 15 41 66
90 -8 0 0 15 41 66
100 -8 0 0 15 41 66
110 -8 0 0 15 41 66
120 -8 0 0 15 51 76
130 -8 0 0 15 51 76
140 -8 0 0 15 51 76
150 -8 0 0 15 51 76
160 -10 0 0 20 51 76
170 -10 0 0 20 51 76
180 -10 0 0 20 61 86
190 -10 0 0 20 61 86
200 -10 0 0 20 61 86

Similar products of CRBS 19013 V UU crossed roller bearing

Bearing No. Bearing No. Bearing No.
CRBS19013 V CRBS19013 V UU CRBS19013 V U
CRBS19013 V T1 CRBS19013 V UU T1 CRBS19013 V U T1
CRBS19013 V C1 CRBS19013 V UU C1 CRBS19013 V U C1



How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

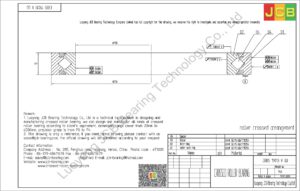

CRBS 19013 V UU IKO CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing CRBS 19013 V UU

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post CRBS 19013 V UU CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> CRBS 18013 V UU CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/crbs-18013-v-uu-of-iko-cross-roller-bearing/ Mon, 23 Apr 2018 03:40:35 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=539 Bearing No. Boundary dim.（mm） Basic loading rates(N) Mounting dimensions(mm) Weight d D B rmin C Co da Da g CRBS 18013 VUU 180 206 13 0.6 28600 65200 186 199 710

The post CRBS 18013 V UU CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

CRBS 18013 V UU crossed roller bearing specification

  1. Model Code: CRBS…V series is slim type of crossed roller bearing with full complement.
  2. Outer Diameter: 206 (unit: mm).
  3. Bore Diameter:   180 (unit: mm).
  4. Width: 13 (unit: mm).
  5. Weight: 710 G
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides.U signifies seal on one side.)
  8. Radial internal clearance: T1,C1
  9. Accuracy class: Including P0

Radial internal clearance

Nominal bore diameter of bearing T1(μm) C1(μm) C2(μm)
mm Min. Max. Min. Max. Min. Max.
50 -8 0 0 15 30 56
60 -8 0 0 15 30 56
70 -8 0 0 15 30 56
80 -8 0 0 15 41 66
90 -8 0 0 15 41 66
100 -8 0 0 15 41 66
110 -8 0 0 15 41 66
120 -8 0 0 15 51 76
130 -8 0 0 15 51 76
140 -8 0 0 15 51 76
150 -8 0 0 15 51 76
160 -10 0 0 20 51 76
170 -10 0 0 20 51 76
180 -10 0 0 20 61 86
190 -10 0 0 20 61 86
200 -10 0 0 20 61 86

Similar products of CRBS 18013 V UU crossed roller bearing

Bearing No. Bearing No. Bearing No.
CRBS18013 V CRBS18013 V UU CRBS18013 V U
CRBS18013 V T1 CRBS18013 V UU T1 CRBS18013 V U T1
CRBS18013 V C1 CRBS18013 V UU C1 CRBS18013 V U C1



How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

CRBS 18013 V UU IKO CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing CRBS 18013 V UU

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post CRBS 18013 V UU CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> CRBS 17013 V UU CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/crbs-17013-v-uu-of-iko-cross-roller-bearing/ Mon, 23 Apr 2018 03:40:08 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=538 Bearing No. Boundary dim.（mm） Basic loading rates(N) Mounting dimensions(mm) Weight d D B rmin C Co da Da g CRBS 17013 VUU 170 196 13 0.6 27800 61600 176 189 675

The post CRBS 17013 V UU CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

CRBS 17013 V UU crossed roller bearing specification

  1. Model Code: CRBS…V series is slim type of crossed roller bearing with full complement.
  2. Outer Diameter: 196 (unit: mm).
  3. Bore Diameter:   170 (unit: mm).
  4. Width: 13 (unit: mm).
  5. Weight: 675 G
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides.U signifies seal on one side.)
  8. Radial internal clearance: T1,C1
  9. Accuracy class: Including P0

Radial internal clearance

Nominal bore diameter of bearing T1(μm) C1(μm) C2(μm)
mm Min. Max. Min. Max. Min. Max.
50 -8 0 0 15 30 56
60 -8 0 0 15 30 56
70 -8 0 0 15 30 56
80 -8 0 0 15 41 66
90 -8 0 0 15 41 66
100 -8 0 0 15 41 66
110 -8 0 0 15 41 66
120 -8 0 0 15 51 76
130 -8 0 0 15 51 76
140 -8 0 0 15 51 76
150 -8 0 0 15 51 76
160 -10 0 0 20 51 76
170 -10 0 0 20 51 76
180 -10 0 0 20 61 86
190 -10 0 0 20 61 86
200 -10 0 0 20 61 86

Similar products of CRBS 17013 V UU crossed roller bearing

Bearing No. Bearing No. Bearing No.
CRBS17013 V CRBS17013 V UU CRBS17013 V U
CRBS17013 V T1 CRBS17013 V UU T1 CRBS17013 V U T1
CRBS17013 V C1 CRBS17013 V UU C1 CRBS17013 V U C1



How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

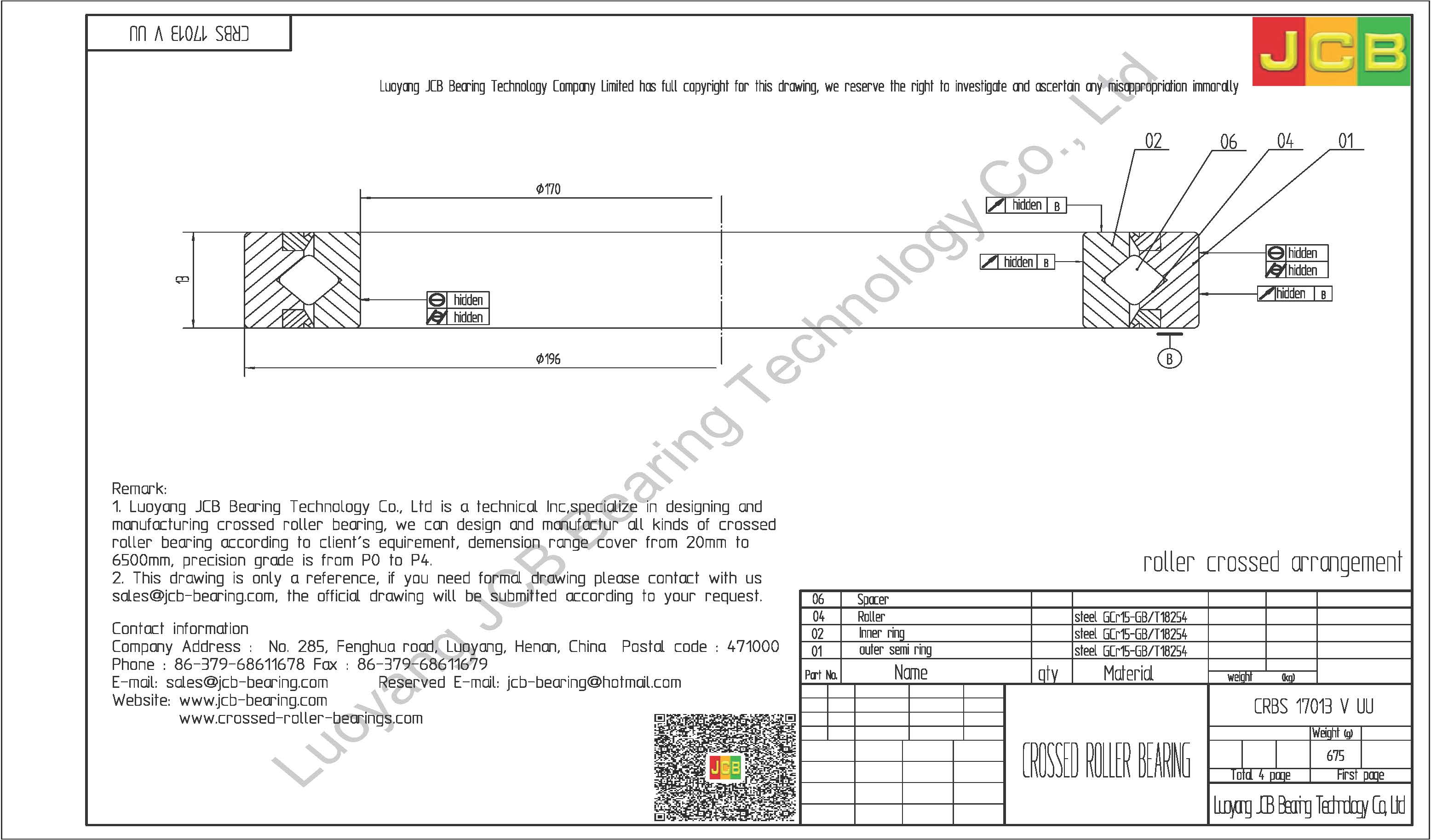

CRBS 17013 V UU IKO CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing CRBS 17013 V UU

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post CRBS 17013 V UU CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> CRBS 16013 V UU CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/crbs-16013-v-uu-of-iko-cross-roller-bearing/ Mon, 23 Apr 2018 03:39:40 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=537 Bearing No. Boundary dim.（mm） Basic loading rates(N) Mounting dimensions(mm) Weight d D B rmin C Co da Da g CRBS 16013 VUU 160 186 13 0.6 26900 58200 166 179 620

The post CRBS 16013 V UU CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

CRBS 16013 V UU crossed roller bearing specification

  1. Model Code: CRBS…V series is slim type of crossed roller bearing with full complement.
  2. Outer Diameter: 186 (unit: mm).
  3. Bore Diameter:   160 (unit: mm).
  4. Width: 13 (unit: mm).
  5. Weight: 620 G
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides.U signifies seal on one side.)
  8. Radial internal clearance: T1,C1
  9. Accuracy class: Including P0

Radial internal clearance

Nominal bore diameter of bearing T1(μm) C1(μm) C2(μm)
mm Min. Max. Min. Max. Min. Max.
50 -8 0 0 15 30 56
60 -8 0 0 15 30 56
70 -8 0 0 15 30 56
80 -8 0 0 15 41 66
90 -8 0 0 15 41 66
100 -8 0 0 15 41 66
110 -8 0 0 15 41 66
120 -8 0 0 15 51 76
130 -8 0 0 15 51 76
140 -8 0 0 15 51 76
150 -8 0 0 15 51 76
160 -10 0 0 20 51 76
170 -10 0 0 20 51 76
180 -10 0 0 20 61 86
190 -10 0 0 20 61 86
200 -10 0 0 20 61 86

Similar products of CRBS 16013 V UU crossed roller bearing

Bearing No. Bearing No. Bearing No.
CRBS16013 V CRBS16013 V UU CRBS16013 V U
CRBS16013 V T1 CRBS16013 V UU T1 CRBS16013 V U T1
CRBS16013 V C1 CRBS16013 V UU C1 CRBS16013 V U C1



How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

CRBS 16013 V UU IKO CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing CRBS 16013 V UU

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post CRBS 16013 V UU CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> CRBS 1508 V UU CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/crbs-1508-v-uu-of-iko-cross-roller-bearing/ Mon, 23 Apr 2018 03:39:11 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=536 Bearing No. Boundary dim.（mm） Basic loading rates(N) Mounting dimensions(mm) Weight d D B rmin C Co da Da g CRBS 1508VUU 150 166 8 0.4 12100 28700 154 161 220

The post CRBS 1508 V UU CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

CRBS 1508 V UU crossed roller bearing specification

  1. Model Code: CRBS…V series is slim type of crossed roller bearing with full complement.
  2. Outer Diameter: 166 (unit: mm).
  3. Bore Diameter:   150 (unit: mm).
  4. Width: 8 (unit: mm).
  5. Weight: 220 G
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides.U signifies seal on one side.)
  8. Radial internal clearance: T1,C1
  9. Accuracy class: Including P0

Radial internal clearance

Nominal bore diameter of bearing T1(μm) C1(μm) C2(μm)
mm Min. Max. Min. Max. Min. Max.
50 -8 0 0 15 30 56
60 -8 0 0 15 30 56
70 -8 0 0 15 30 56
80 -8 0 0 15 41 66
90 -8 0 0 15 41 66
100 -8 0 0 15 41 66
110 -8 0 0 15 41 66
120 -8 0 0 15 51 76
130 -8 0 0 15 51 76
140 -8 0 0 15 51 76
150 -8 0 0 15 51 76
160 -10 0 0 20 51 76
170 -10 0 0 20 51 76
180 -10 0 0 20 61 86
190 -10 0 0 20 61 86
200 -10 0 0 20 61 86

Similar products of CRBS 1508 V UU crossed roller bearing

Bearing No. Bearing No. Bearing No.
CRBS1508 V CRBS1508 V UU CRBS1508 V U
CRBS1508 V T1 CRBS1508 V UU T1 CRBS1508 V U T1
CRBS1508 V C1 CRBS1508 V UU C1 CRBS1508 V U C1



How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

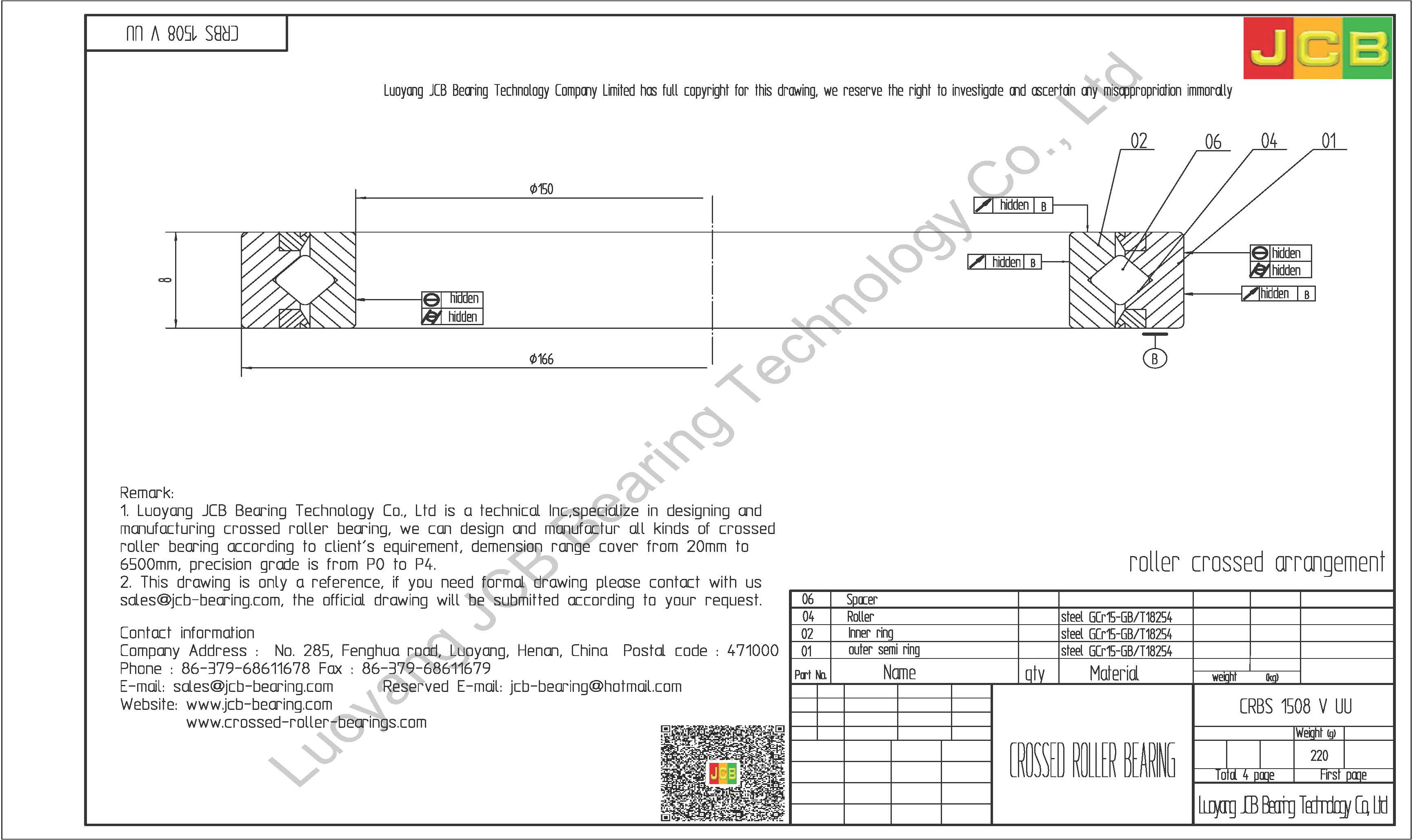

CRBS 1508 V UU IKO CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing CRBS 1508 V UU

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post CRBS 1508 V UU CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> CRBS 1408 V UU CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/crbs-1408-v-uu-of-iko-cross-roller-bearing/ Mon, 23 Apr 2018 03:38:48 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=535 Bearing No. Boundary dim.（mm） Basic loading rates(N) Mounting dimensions(mm) Weight d D B rmin C Co da Da g CRBS 1408 VUU 140 156 8 0.4 11700 26800 144 151 205

The post CRBS 1408 V UU CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

CRBS 1408 V UU crossed roller bearing specification

  1. Model Code: CRBS…V series is slim type of crossed roller bearing with full complement.
  2. Outer Diameter: 156 (unit: mm).
  3. Bore Diameter:   140 (unit: mm).
  4. Width: 8 (unit: mm).
  5. Weight: 205 G
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides.U signifies seal on one side.)
  8. Radial internal clearance: T1,C1
  9. Accuracy class: Including P0

Radial internal clearance

Nominal bore diameter of bearing T1(μm) C1(μm) C2(μm)
mm Min. Max. Min. Max. Min. Max.
50 -8 0 0 15 30 56
60 -8 0 0 15 30 56
70 -8 0 0 15 30 56
80 -8 0 0 15 41 66
90 -8 0 0 15 41 66
100 -8 0 0 15 41 66
110 -8 0 0 15 41 66
120 -8 0 0 15 51 76
130 -8 0 0 15 51 76
140 -8 0 0 15 51 76
150 -8 0 0 15 51 76
160 -10 0 0 20 51 76
170 -10 0 0 20 51 76
180 -10 0 0 20 61 86
190 -10 0 0 20 61 86
200 -10 0 0 20 61 86

Similar products of CRBS 1408 V UU crossed roller bearing

Bearing No. Bearing No. Bearing No.
CRBS1408 V CRBS1408 V UU CRBS1408 V U
CRBS1408 V T1 CRBS1408 V UU T1 CRBS1408 V U T1
CRBS1408 V C1 CRBS1408 V UU C1 CRBS1408 V U C1



How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

CRBS 1408 V UU IKO CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing CRBS 1408 V UU

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post CRBS 1408 V UU CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> CRBS 1308 V UU CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/crbs-1308-v-uu-of-iko-cross-roller-bearing/ Mon, 23 Apr 2018 03:38:22 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=534 Bearing No. Boundary dim.（mm） Basic loading rates(N) Mounting dimensions(mm) Weight d D B rmin C Co da Da g CRBS 1308 VUU 130 146 8 0.4 11200 24600 134 141 199

The post CRBS 1308 V UU CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

CRBS 1308 V UU crossed roller bearing specification

  1. Model Code: CRBS…V is series slim type of crossed roller bearing with full complement.
  2. Outer Diameter: 146 (unit: mm).
  3. Bore Diameter:   130 (unit: mm).
  4. Width: 8 (unit: mm).
  5. Weight: 199 G
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.(UU signifies seals on both sides.U signifies seal on one side.)
  8. Radial internal clearance: T1,C1
  9. Accuracy class: Including P0

Radial internal clearance

Nominal bore diameter of bearing T1(μm) C1(μm) C2(μm)
mm Min. Max. Min. Max. Min. Max.
50 -8 0 0 15 30 56
60 -8 0 0 15 30 56
70 -8 0 0 15 30 56
80 -8 0 0 15 41 66
90 -8 0 0 15 41 66
100 -8 0 0 15 41 66
110 -8 0 0 15 41 66
120 -8 0 0 15 51 76
130 -8 0 0 15 51 76
140 -8 0 0 15 51 76
150 -8 0 0 15 51 76
160 -10 0 0 20 51 76
170 -10 0 0 20 51 76
180 -10 0 0 20 61 86
190 -10 0 0 20 61 86
200 -10 0 0 20 61 86

Similar products of CRBS 1308 V UU crossed roller bearing

Bearing No. Bearing No. Bearing No.
CRBS1308 V CRBS1308 V UU CRBS1308 V U
CRBS1308 V T1 CRBS1308 V UU T1 CRBS1308 V U T1
CRBS1308 V C1 CRBS1308 V UU C1 CRBS1308 V U C1



How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

CRBS 1308 V UU IKO CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing CRBS 1308 V UU

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post CRBS 1308 V UU CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> CRBS 1208 V UU CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/crbs-1208-v-uu-of-iko-cross-roller-bearing/ Mon, 23 Apr 2018 03:37:58 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=533 Bearing No. Boundary dim.（mm） Basic loading rates(N) Mounting dimensions(mm) Weight d D B rmin C Co da Da g CRBS 1208 VUU 120 136 8 0.4 10900 23000 124 131 184

The post CRBS 1208 V UU CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

CRBS 1208 V UU crossed roller bearing specification

  1. Model Code: CRBS…V series is slim type of crossed roller bearing with full complement.
  2. Outer Diameter: 136 (unit: mm).
  3. Bore Diameter:   120 (unit: mm).
  4. Width: 8 (unit: mm).
  5. Weight: 184 G
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: UU signifies seals on both sides.(U signifies seal on one side.)
  8. Radial internal clearance: T1,C1
  9. Accuracy class: Including P0

Radial internal clearance

Nominal bore diameter of bearing T1(μm) C1(μm) C2(μm)
mm Min. Max. Min. Max. Min. Max.
50 -8 0 0 15 30 56
60 -8 0 0 15 30 56
70 -8 0 0 15 30 56
80 -8 0 0 15 41 66
90 -8 0 0 15 41 66
100 -8 0 0 15 41 66
110 -8 0 0 15 41 66
120 -8 0 0 15 51 76
130 -8 0 0 15 51 76
140 -8 0 0 15 51 76
150 -8 0 0 15 51 76
160 -10 0 0 20 51 76
170 -10 0 0 20 51 76
180 -10 0 0 20 61 86
190 -10 0 0 20 61 86
200 -10 0 0 20 61 86

Similar products of CRBS 1208 V UU crossed roller bearing

Bearing No. Bearing No. Bearing No.
CRBS1208 V CRBS1208 V UU CRBS1208 V U
CRBS1208 V T1 CRBS1208 V UU T1 CRBS1208 V U T1
CRBS1208 V C1 CRBS1208 V UU C1 CRBS1208 V U C1

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

CRBS 1208 V UU IKO CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing CRBS 1208 V UU

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post CRBS 1208 V UU CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> CRBS 1108 V UU CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/crbs-1108-v-uu-of-iko-cross-roller-bearing/ Mon, 23 Apr 2018 03:37:34 +0000 http://www.cross-roller-bearing.com/?post_type=product&p=532 Bearing No. Boundary dim.（mm） Basic loading rates(N) Mounting dimensions(mm) Weight d D B rmin C Co da Da g CRBS 1108 VUU 110 126 8 0.4 10300 21200 114 121 163

The post CRBS 1108 V UU CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

CRBS 1108 V UU crossed roller bearing specification

  1. Model Code: CRBS…V series is slim type of crossed roller bearing with full complement.
  2. Outer Diameter: 126 (unit: mm).
  3. Bore Diameter:   110 (unit: mm).
  4. Width: 8 (unit: mm).
  5. Weight: 163 G
  6. Mounting Holes: without mounting holes.
  7. Seal Symbol: No symbol signifies the open type without seals.
  8. Radial internal clearance: T1,C1,
  9. Accuracy class: Including P0

Radial internal clearance

Nominal bore diameter of bearing T1(μm) C1(μm) C2(μm)
mm Min. Max. Min. Max. Min. Max.
50 -8 0 0 15 30 56
60 -8 0 0 15 30 56
70 -8 0 0 15 30 56
80 -8 0 0 15 41 66
90 -8 0 0 15 41 66
100 -8 0 0 15 41 66
110 -8 0 0 15 41 66
120 -8 0 0 15 51 76
130 -8 0 0 15 51 76
140 -8 0 0 15 51 76
150 -8 0 0 15 51 76
160 -10 0 0 20 51 76
170 -10 0 0 20 51 76
180 -10 0 0 20 61 86
190 -10 0 0 20 61 86
200 -10 0 0 20 61 86

Similar products of CRBS 1108 V UU crossed roller bearing

Bearing No. Bearing No. Bearing No.
CRBS1108 V CRBS1108 V UU CRBS1108 V U
CRBS1108 V T1 CRBS1108 V UU T1 CRBS1108 V U T1
CRBS1108 V C1 CRBS1108 V UU C1 CRBS1108 V U C1



How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

CRBS 1108 V UU IKO CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing CRBS 1108 V UU

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post CRBS 1108 V UU CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]>
