CRBF SERIES OF JCB CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product-category/iko-cross-roller-bearing/crbf-series/ MANUFACTURER OF QUALITY CROSS ROLLER BEARING Tue, 24 Oct 2023 05:53:50 +0000 en-US hourly 1 https://www.cross-roller-bearing.com/wp-content/uploads/2018/05/cropped-JCB-标识4-32x32.jpg CRBF SERIES OF JCB CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product-category/iko-cross-roller-bearing/crbf-series/ 32 32 CRBF 11528 AD CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/crbf-11528-ad-crossed-roller-bearing/ Wed, 18 Jan 2023 02:48:05 +0000 https://www.cross-roller-bearing.com/?post_type=product&p=3539 Bearing No. Boundary dim.（mm） Basic loading rates(N) Abutment and fillet dim.(mm) Weight d D B.T rmin doh C Co da Da kg CRBF11528 AD 115 240 28 1.5 1.5 84300 138000 198 198 6.63

The post CRBF 11528 AD CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

 CRBF 11528 AD crossed roller bearing specification

  1. Model Code: CRBF…A series is mounting holed type high rigidity of crossed roller bearing with separator.
  2. Outer Diameter: 240 (unit: mm).
  3. Bore Diameter:   115 (unit: mm).
  4. Width: 28 (unit: mm).
  5. Weight: 6.63 KG
  6. Mounting Holes: (a)Inner rings/PCD 139mm,mounting holes 12-φ9 through φ14 counter bore depth 13.5mm. (b)Outer rings/PCD 217mm,mounting holes 12-φ9 through φ14 counter bore depth 13.5mm.
  7. Seal Symbol: No symbol signifies the open type without seals.( UU signifies seals on both sides. U signifies seal on one side.UD signifies seal on one side  in the opposite direction to counter bored mounting holes on outer ring.)
  8. Axial internal clearance: T1,C1,C2
  9. Accuracy class: Including P6,P5, P4, P2

Radial internal clearance

Nominal bore diameter of bearing(mm) T1(μm) C1(μm) C2(μm)
over incl. Min. Max. Min. Max. Min. Max.
– 30 -10 0 0 10 10 20
30 40 -10 0 0 10 10 20
40 50 -10 0 0 10 10 25
50 65 -10 0 0 10 10 25
65 50 -10 0 0 15 15 30
80 100 -10 0 0 15 15 35
100 120 -15 0 0 15 15 35
120 140 -15 0 0 20 20 45
140 160 -15 0 0 20 20 50
160 200 -15 0 0 20 20 50
200 215 -20 0 0 25 25 60
250 315 -20 0 0 25 25 60
315 400 -25 0 0 30 30 70
400 500 -30 0 0 40 40 85
500 630 -30 0 0 50 50 100
630 710 -30 0 0 60 60 120
710 800 -40 0 0 70 70 140

Similar products of CRBF 11528 AD crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
CRBF11528 AD T1 CRBF11528 AD T1 P6 CRBF11528 AD T1 P5 CRBF11528 AD T1 P4 CRBF11528 AD T1 P2
CRBF11528 AD C1 CRBF11528 AD C1 P6 CRBF11528 AD C1 P5 CRBF11528 AD C1 P4 CRBF11528 AD C1 P2
CRBF11528 AD C2 CRBF11528 AD C2 P6 CRBF11528 AD C2 P5 CRBF11528 AD C2 P4 CRBF11528 AD C2 P2
CRBF11528 AD UU T1 CRBF11528 AD UU T1 P6 CRBF11528 AD UU T1 P5 CRBF11528 AD UU T1 P4 CRBF11528 AD UU T1 P2
CRBF11528 AD UU C1 CRBF11528 AD UU C1 P6 CRBF11528 AD UU C1 P5 CRBF11528 AD UU C1 P4 CRBF11528 AD UU C1 P2
CRBF11528 AD UU C2 CRBF11528 AD UU C2 P6 CRBF11528 AD UU C2 P5 CRBF11528 AD UU C2 P4 CRBF11528 AD UU C2 P2
CRBF11528 AD UD T1 CRBF11528 AD UD T1 P6 CRBF11528 AD UD T1 P5 CRBF11528 AD UD T1 P4 CRBF11528 AD UD T1 P2
CRBF11528 AD UD C1 CRBF11528 AD UD C1 P6 CRBF11528 AD UD C1 P5 CRBF11528 AD UD C1 P4 CRBF11528 AD UD C1 P2
CRBF11528 AD UD C2 CRBF11528 AD UD C2 P6 CRBF11528 AD UD C2 P5 CRBF11528 AD UD C2 P4 CRBF11528 AD UD C2 P2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

CRBF 11528 AD IKO CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing CRBF 11528 AD

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post CRBF 11528 AD CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> CRBF 11528 A CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/crbf-11528-a-crossed-roller-bearing/ Wed, 18 Jan 2023 02:38:28 +0000 https://www.cross-roller-bearing.com/?post_type=product&p=3538 Bearing No. Boundary dim.（mm） Basic loading rates(N) Abutment and fillet dim.(mm) Weight d D B.T rmin doh C Co da Da kg CRBF11528 A 115 240 28 1.5 1.5 84300 138000 198 198 6.63

The post CRBF 11528 A CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

CRBF 11528 A crossed roller bearing specification

  1. Model Code: CRBF…A series is mounting holed type high rigidity of crossed roller bearing with separator.
  2. Outer Diameter: 240 (unit: mm).
  3. Bore Diameter:   115 (unit: mm).
  4. Width: 28 (unit: mm).
  5. Weight: 6.63 KG
  6. Mounting Holes: (a)Inner rings/PCD 139mm,mounting holes 12-φ9 through φ14 counter bore depth 13.5mm. (b)Outer rings/PCD 217mm,mounting holes 12-φ9 through φ14 counter bore depth 13.5mm.
  7. Seal Symbol: No symbol signifies the open type without seals.( UU signifies seals on both sides. U signifies seal on one side.UD signifies seal on one side  in the opposite direction to counter bored mounting holes on outer ring.)
  8. Axial internal clearance: T1,C1,C2
  9. Accuracy class: Including P6,P5, P4, P2

Radial internal clearance

Nominal bore diameter of bearing(mm) T1(μm) C1(μm) C2(μm)
over incl. Min. Max. Min. Max. Min. Max.
– 30 -10 0 0 10 10 20
30 40 -10 0 0 10 10 20
40 50 -10 0 0 10 10 25
50 65 -10 0 0 10 10 25
65 50 -10 0 0 15 15 30
80 100 -10 0 0 15 15 35
100 120 -15 0 0 15 15 35
120 140 -15 0 0 20 20 45
140 160 -15 0 0 20 20 50
160 200 -15 0 0 20 20 50
200 215 -20 0 0 25 25 60
250 315 -20 0 0 25 25 60
315 400 -25 0 0 30 30 70
400 500 -30 0 0 40 40 85
500 630 -30 0 0 50 50 100
630 710 -30 0 0 60 60 120
710 800 -40 0 0 70 70 140

Similar products of CRBF 11528 A crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
CRBF11528 A T1 CRBF11528 A T1 P6 CRBF11528 A T1 P5 CRBF11528 A T1 P4 CRBF11528 A T1 P2
CRBF11528 A C1 CRBF11528 A C1 P6 CRBF11528 A C1 P5 CRBF11528 A C1 P4 CRBF11528 A C1 P2
CRBF11528 A C2 CRBF11528 A C2 P6 CRBF11528 A C2 P5 CRBF11528 A C2 P4 CRBF11528 A C2 P2
CRBF11528 A UU T1 CRBF11528 A UU T1 P6 CRBF11528 A UU T1 P5 CRBF11528 A UU T1 P4 CRBF11528 A UU T1 P2
CRBF11528 A UU C1 CRBF11528 A UU C1 P6 CRBF11528 A UU C1 P5 CRBF11528 A UU C1 P4 CRBF11528 A UU C1 P2
CRBF11528 A UU C2 CRBF11528 A UU C2 P6 CRBF11528 A UU C2 P5 CRBF11528 A UU C2 P4 CRBF11528 A UU C2 P2
CRBF11528 A UD T1 CRBF11528 A UD T1 P6 CRBF11528 A UD T1 P5 CRBF11528 A UD T1 P4 CRBF11528 A UD T1 P2
CRBF11528 A UD C1 CRBF11528 A UD C1 P6 CRBF11528 A UD C1 P5 CRBF11528 A UD C1 P4 CRBF11528 A UD C1 P2
CRBF11528 A UD C2 CRBF11528 A UD C2 P6 CRBF11528 A UD C2 P5 CRBF11528 A UD C2 P4 CRBF11528 A UD C2 P2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

CRBF 11528 A IKO CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing CRBF 11528 A

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post CRBF 11528 A CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> CRBF 11528 AT CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/crbf-11528-at-crossed-roller-bearing/ Wed, 18 Jan 2023 02:33:43 +0000 https://www.cross-roller-bearing.com/?post_type=product&p=3537 Bearing No. Boundary dim.（mm） Basic loading rates(N) Abutment and fillet dim.(mm) Weight d D B.T rmin doh C Co da Da kg CRBF11528 AT 115 240 28 1.5 1.5 84300 138000 198 198 6.81

The post CRBF 11528 AT CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

CRBF 11528 AT crossed roller bearing specification

  1. Model Code: CRBF…A series is mounting holed type high rigidity of crossed roller bearing with separator.
  2. Outer Diameter: 240 (unit: mm).
  3. Bore Diameter:   115 (unit: mm).
  4. Width: 28 (unit: mm).
  5. Weight: 6.81 KG
  6. Mounting Holes: (a)Inner rings/PCD 139mm,mounting holes 12-M8 through. (b)Outer rings/PCD 217mm,mounting holes 12-φ9 through φ14 counter bore depth 13.5mm.
  7. Seal Symbol: No symbol signifies the open type without seals.( UU signifies seals on both sides. U signifies seal on one side.UD signifies seal on one side  in the opposite direction to counter bored mounting holes on outer ring.)
  8. Axial internal clearance: T1,C1,C2
  9. Accuracy class: Including P6,P5, P4, P2

Radial internal clearance

Nominal bore diameter of bearing(mm) T1(μm) C1(μm) C2(μm)
over incl. Min. Max. Min. Max. Min. Max.
– 30 -10 0 0 10 10 20
30 40 -10 0 0 10 10 20
40 50 -10 0 0 10 10 25
50 65 -10 0 0 10 10 25
65 50 -10 0 0 15 15 30
80 100 -10 0 0 15 15 35
100 120 -15 0 0 15 15 35
120 140 -15 0 0 20 20 45
140 160 -15 0 0 20 20 50
160 200 -15 0 0 20 20 50
200 215 -20 0 0 25 25 60
250 315 -20 0 0 25 25 60
315 400 -25 0 0 30 30 70
400 500 -30 0 0 40 40 85
500 630 -30 0 0 50 50 100
630 710 -30 0 0 60 60 120
710 800 -40 0 0 70 70 140

Similar products of CRBF 11528 AT crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
CRBF11528 AT T1 CRBF11528 AT T1 P6 CRBF11528 AT T1 P5 CRBF11528 AT T1 P4 CRBF11528 AT T1 P2
CRBF11528 AT C1 CRBF11528 AT C1 P6 CRBF11528 AT C1 P5 CRBF11528 AT C1 P4 CRBF11528 AT C1 P2
CRBF11528 AT C2 CRBF11528 AT C2 P6 CRBF11528 AT C2 P5 CRBF11528 AT C2 P4 CRBF11528 AT C2 P2
CRBF11528 AT UU T1 CRBF11528 AT UU T1 P6 CRBF11528 AT UU T1 P5 CRBF11528 AT UU T1 P4 CRBF11528 AT UU T1 P2
CRBF11528 AT UU C1 CRBF11528 AT UU C1 P6 CRBF11528 AT UU C1 P5 CRBF11528 AT UU C1 P4 CRBF11528 AT UU C1 P2
CRBF11528 AT UU C2 CRBF11528 AT UU C2 P6 CRBF11528 AT UU C2 P5 CRBF11528 AT UU C2 P4 CRBF11528 AT UU C2 P2
CRBF11528 AT UD T1 CRBF11528 AT UD T1 P6 CRBF11528 AT UD T1 P5 CRBF11528 AT UD T1 P4 CRBF11528 AT UD T1 P2
CRBF11528 AT UD C1 CRBF11528 AT UD C1 P6 CRBF11528 AT UD C1 P5 CRBF11528 AT UD C1 P4 CRBF11528 AT UD C1 P2
CRBF11528 AT UD C2 CRBF11528 AT UD C2 P6 CRBF11528 AT UD C2 P5 CRBF11528 AT UD C2 P4 CRBF11528 AT UD C2 P2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

CRBF 11528 AT IKO CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing CRBF 11528 AT

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post CRBF 11528 AT CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> CRBF 9025 AD CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/crbf-9025-ad-crossed-roller-bearing/ Wed, 18 Jan 2023 02:29:14 +0000 https://www.cross-roller-bearing.com/?post_type=product&p=3535 Bearing No. Boundary dim.（mm） Basic loading rates(N) Abutment and fillet dim.(mm) Weight d D B.T rmin doh C Co da Da kg CRBF9025 AD 90 210 25 1.5 1.5 73400 108000 132 168 4.67

The post CRBF 9025 AD CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

CRBF 9025 AD crossed roller bearing specification

  1. Model Code: CRBF…A series is mounting holed type high rigidity of crossed roller bearing with separator.
  2. Outer Diameter: 210 (unit: mm).
  3. Bore Diameter:   90 (unit: mm).
  4. Width: 25 (unit: mm).
  5. Weight: 4.67 KG
  6. Mounting Holes: (a)Inner rings/PCD 112mm,mounting holes 12-φ9 through φ14 counter bore depth 12mm. (b)Outer rings/PCD 187mm,mounting holes 12-φ9 through φ14 counter bore depth 12mm.
  7. Seal Symbol: No symbol signifies the open type without seals.( UU signifies seals on both sides. U signifies seal on one side.UD signifies seal on one side  in the opposite direction to counter bored mounting holes on outer ring.)
  8. Axial internal clearance: T1,C1,C2
  9. Accuracy class: Including P6,P5, P4, P2

Radial internal clearance

Nominal bore diameter of bearing(mm) T1(μm) C1(μm) C2(μm)
over incl. Min. Max. Min. Max. Min. Max.
– 30 -10 0 0 10 10 20
30 40 -10 0 0 10 10 20
40 50 -10 0 0 10 10 25
50 65 -10 0 0 10 10 25
65 50 -10 0 0 15 15 30
80 100 -10 0 0 15 15 35
100 120 -15 0 0 15 15 35
120 140 -15 0 0 20 20 45
140 160 -15 0 0 20 20 50
160 200 -15 0 0 20 20 50
200 215 -20 0 0 25 25 60
250 315 -20 0 0 25 25 60
315 400 -25 0 0 30 30 70
400 500 -30 0 0 40 40 85
500 630 -30 0 0 50 50 100
630 710 -30 0 0 60 60 120
710 800 -40 0 0 70 70 140

Similar products of CRBF 9025 AD crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
CRBF9025 AD T1 CRBF9025 AD T1 P6 CRBF9025 AD T1 P5 CRBF9025 AD T1 P4 CRBF9025 AD T1 P2
CRBF9025 AD C1 CRBF9025 AD C1 P6 CRBF9025 AD C1 P5 CRBF9025 AD C1 P4 CRBF9025 AD C1 P2
CRBF9025 AD C2 CRBF9025 AD C2 P6 CRBF9025 AD C2 P5 CRBF9025 AD C2 P4 CRBF9025 AD C2 P2
CRBF9025 AD UU T1 CRBF9025 AD UU T1 P6 CRBF9025 AD UU T1 P5 CRBF9025 AD UU T1 P4 CRBF9025 AD UU T1 P2
CRBF9025 AD UU C1 CRBF9025 AD UU C1 P6 CRBF9025 AD UU C1 P5 CRBF9025 AD UU C1 P4 CRBF9025 AD UU C1 P2
CRBF9025 AD UU C2 CRBF9025 AD UU C2 P6 CRBF9025 AD UU C2 P5 CRBF9025 AD UU C2 P4 CRBF9025 AD UU C2 P2
CRBF9025 AD UD T1 CRBF9025 AD UD T1 P6 CRBF9025 AD UD T1 P5 CRBF9025 AD UD T1 P4 CRBF9025 AD UD T1 P2
CRBF9025 AD UD C1 CRBF9025 AD UD C1 P6 CRBF9025 AD UD C1 P5 CRBF9025 AD UD C1 P4 CRBF9025 AD UD C1 P2
CRBF9025 AD UD C2 CRBF9025 AD UD C2 P6 CRBF9025 AD UD C2 P5 CRBF9025 AD UD C2 P4 CRBF9025 AD UD C2 P2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

CRBF 9025 AD IKO CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing CRBF 9025 AD

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post CRBF 9025 AD CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> CRBF 9025 A CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/crbf-9025-a-crossed-roller-bearing/ Wed, 18 Jan 2023 02:25:55 +0000 https://www.cross-roller-bearing.com/?post_type=product&p=3534 Bearing No. Boundary dim.（mm） Basic loading rates(N) Abutment and fillet dim.(mm) Weight d D B.T rmin doh C Co da Da kg CRBF9025 A 90 210 25 1.5 1.5 73400 108000 132 168 4.67

The post CRBF 9025 A CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

CRBF 9025 A crossed roller bearing specification

  1. Model Code: CRBF…A series is mounting holed type high rigidity of crossed roller bearing with separator.
  2. Outer Diameter: 210 (unit: mm).
  3. Bore Diameter:   90 (unit: mm).
  4. Width: 25 (unit: mm).
  5. Weight: 4.67 KG
  6. Mounting Holes: (a)Inner rings/PCD 112mm,mounting holes 12-φ9 through φ14 counter bore depth 12mm. (b)Outer rings/PCD 187mm,mounting holes 12-φ9 through φ14 counter bore depth 12mm.
  7. Seal Symbol: No symbol signifies the open type without seals.( UU signifies seals on both sides. U signifies seal on one side.UD signifies seal on one side  in the opposite direction to counter bored mounting holes on outer ring.)
  8. Axial internal clearance: T1,C1,C2
  9. Accuracy class: Including P6,P5, P4, P2

Radial internal clearance

Nominal bore diameter of bearing(mm) T1(μm) C1(μm) C2(μm)
over incl. Min. Max. Min. Max. Min. Max.
– 30 -10 0 0 10 10 20
30 40 -10 0 0 10 10 20
40 50 -10 0 0 10 10 25
50 65 -10 0 0 10 10 25
65 50 -10 0 0 15 15 30
80 100 -10 0 0 15 15 35
100 120 -15 0 0 15 15 35
120 140 -15 0 0 20 20 45
140 160 -15 0 0 20 20 50
160 200 -15 0 0 20 20 50
200 215 -20 0 0 25 25 60
250 315 -20 0 0 25 25 60
315 400 -25 0 0 30 30 70
400 500 -30 0 0 40 40 85
500 630 -30 0 0 50 50 100
630 710 -30 0 0 60 60 120
710 800 -40 0 0 70 70 140

Similar products of CRBF 9025 A crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
CRBF9025 A T1 CRBF9025 A T1 P6 CRBF9025 A T1 P5 CRBF9025 A T1 P4 CRBF9025 A T1 P2
CRBF9025 A C1 CRBF9025 A C1 P6 CRBF9025 A C1 P5 CRBF9025 A C1 P4 CRBF9025 A C1 P2
CRBF9025 A C2 CRBF9025 A C2 P6 CRBF9025 A C2 P5 CRBF9025 A C2 P4 CRBF9025 A C2 P2
CRBF9025 A UU T1 CRBF9025 A UU T1 P6 CRBF9025 A UU T1 P5 CRBF9025 A UU T1 P4 CRBF9025 A UU T1 P2
CRBF9025 A UU C1 CRBF9025 A UU C1 P6 CRBF9025 A UU C1 P5 CRBF9025 A UU C1 P4 CRBF9025 A UU C1 P2
CRBF9025 A UU C2 CRBF9025 A UU C2 P6 CRBF9025 A UU C2 P5 CRBF9025 A UU C2 P4 CRBF9025 A UU C2 P2
CRBF9025 A UD T1 CRBF9025 A UD T1 P6 CRBF9025 A UD T1 P5 CRBF9025 A UD T1 P4 CRBF9025 A UD T1 P2
CRBF9025 A UD C1 CRBF9025 A UD C1 P6 CRBF9025 A UD C1 P5 CRBF9025 A UD C1 P4 CRBF9025 A UD C1 P2
CRBF9025 A UD C2 CRBF9025 A UD C2 P6 CRBF9025 A UD C2 P5 CRBF9025 A UD C2 P4 CRBF9025 A UD C2 P2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

CRBF 9025 A IKO CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing CRBF 9025 A

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post CRBF 9025 A CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> CRBF 9025 AT CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/crbf-9025-at-crossed-roller-bearing/ Wed, 18 Jan 2023 02:22:06 +0000 https://www.cross-roller-bearing.com/?post_type=product&p=3532 Bearing No. Boundary dim.（mm） Basic loading rates(N) Abutment and fillet dim.(mm) Weight d D B.T rmin doh C Co da Da kg CRBF9025 AT 90 210 25 1.5 1.5 73400 108000 132 168 4.83

The post CRBF 9025 AT CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

CRBF 9025 AT crossed roller bearing specification

  1. Model Code: CRBF…A series is mounting holed type high rigidity of crossed roller bearing with separator.
  2. Outer Diameter: 210 (unit: mm).
  3. Bore Diameter:   90 (unit: mm).
  4. Width: 25 (unit: mm).
  5. Weight: 4.83 KG
  6. Mounting Holes: (a)Inner rings/PCD 112mm,mounting holes 12-M8 through. (b)Outer rings/PCD 187mm,mounting holes 12-φ9 through φ14 counter bore depth 12mm.
  7. Seal Symbol: No symbol signifies the open type without seals.( UU signifies seals on both sides. U signifies seal on one side.UD signifies seal on one side  in the opposite direction to counter bored mounting holes on outer ring.)
  8. Axial internal clearance: T1,C1,C2
  9. Accuracy class: Including P6,P5, P4, P2

Radial internal clearance

Nominal bore diameter of bearing(mm) T1(μm) C1(μm) C2(μm)
over incl. Min. Max. Min. Max. Min. Max.
– 30 -10 0 0 10 10 20
30 40 -10 0 0 10 10 20
40 50 -10 0 0 10 10 25
50 65 -10 0 0 10 10 25
65 50 -10 0 0 15 15 30
80 100 -10 0 0 15 15 35
100 120 -15 0 0 15 15 35
120 140 -15 0 0 20 20 45
140 160 -15 0 0 20 20 50
160 200 -15 0 0 20 20 50
200 215 -20 0 0 25 25 60
250 315 -20 0 0 25 25 60
315 400 -25 0 0 30 30 70
400 500 -30 0 0 40 40 85
500 630 -30 0 0 50 50 100
630 710 -30 0 0 60 60 120
710 800 -40 0 0 70 70 140

Similar products of CRBF 9025 AT crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
CRBF9025 AT T1 CRBF9025 AT T1 P6 CRBF9025 AT T1 P5 CRBF9025 AT T1 P4 CRBF9025 AT T1 P2
CRBF9025 AT C1 CRBF9025 AT C1 P6 CRBF9025 AT C1 P5 CRBF9025 AT C1 P4 CRBF9025 AT C1 P2
CRBF9025 AT C2 CRBF9025 AT C2 P6 CRBF9025 AT C2 P5 CRBF9025 AT C2 P4 CRBF9025 AT C2 P2
CRBF9025 AT UU T1 CRBF9025 AT UU T1 P6 CRBF9025 AT UU T1 P5 CRBF9025 AT UU T1 P4 CRBF9025 AT UU T1 P2
CRBF9025 AT UU C1 CRBF9025 AT UU C1 P6 CRBF9025 AT UU C1 P5 CRBF9025 AT UU C1 P4 CRBF9025 AT UU C1 P2
CRBF9025 AT UU C2 CRBF9025 AT UU C2 P6 CRBF9025 AT UU C2 P5 CRBF9025 AT UU C2 P4 CRBF9025 AT UU C2 P2
CRBF9025 AT UD T1 CRBF9025 AT UD T1 P6 CRBF9025 AT UD T1 P5 CRBF9025 AT UD T1 P4 CRBF9025 AT UD T1 P2
CRBF9025 AT UD C1 CRBF9025 AT UD C1 P6 CRBF9025 AT UD C1 P5 CRBF9025 AT UD C1 P4 CRBF9025 AT UD C1 P2
CRBF9025 AT UD C2 CRBF9025 AT UD C2 P6 CRBF9025 AT UD C2 P5 CRBF9025 AT UD C2 P4 CRBF9025 AT UD C2 P2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

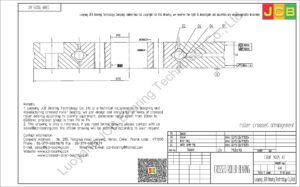

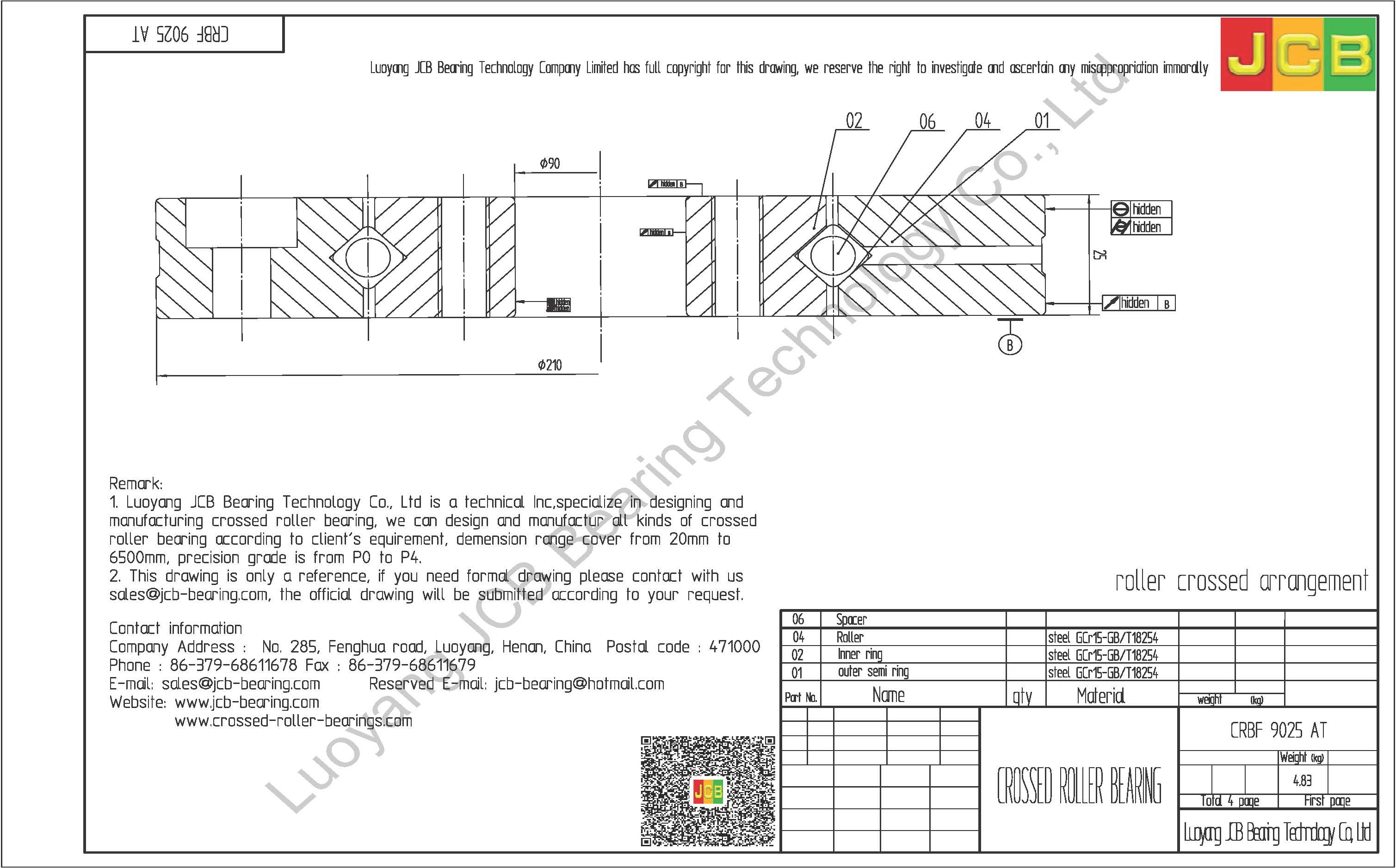

CRBF 9025 AT IKO CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing CRBF 9025 AT

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post CRBF 9025 AT CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> CRBF 8022 AD CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/crbf-8022-ad-crossed-roller-bearing/ Wed, 18 Jan 2023 02:19:08 +0000 https://www.cross-roller-bearing.com/?post_type=product&p=3531 Bearing No. Boundary dim.（mm） Basic loading rates(N) Abutment and fillet dim.(mm) Weight d D B.T rmin doh C Co da Da kg CRBF8022 AD 80 165 22 0.6 1 51100 72000 107 137 2.6

The post CRBF 8022 AD CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

CRBF 8022 AD crossed roller bearing specification

  1. Model Code: CRBF…A series is mounting holed type high rigidity of crossed roller bearing with separator.
  2. Outer Diameter: 165 (unit: mm).
  3. Bore Diameter:   80 (unit: mm).
  4. Width: 22 (unit: mm).
  5. Weight: 2.6 KG
  6. Mounting Holes: (a)Inner rings/PCD 97mm,mounting holes 10-φ5.5 through φ9.5 counter bore depth 5.4mm. (b)Outer rings/PCD 148mm,mounting holes 10-φ5.5 through φ9.5 counter bore depth 5.4mm.
  7. Seal Symbol: No symbol signifies the open type without seals.( UU signifies seals on both sides. U signifies seal on one side.UD signifies seal on one side  in the opposite direction to counter bored mounting holes on outer ring.)
  8. Axial internal clearance: T1,C1,C2
  9. Accuracy class: Including P6,P5, P4, P2

Radial internal clearance

Nominal bore diameter of bearing(mm) T1(μm) C1(μm) C2(μm)
over incl. Min. Max. Min. Max. Min. Max.
– 30 -10 0 0 10 10 20
30 40 -10 0 0 10 10 20
40 50 -10 0 0 10 10 25
50 65 -10 0 0 10 10 25
65 50 -10 0 0 15 15 30
80 100 -10 0 0 15 15 35
100 120 -15 0 0 15 15 35
120 140 -15 0 0 20 20 45
140 160 -15 0 0 20 20 50
160 200 -15 0 0 20 20 50
200 215 -20 0 0 25 25 60
250 315 -20 0 0 25 25 60
315 400 -25 0 0 30 30 70
400 500 -30 0 0 40 40 85
500 630 -30 0 0 50 50 100
630 710 -30 0 0 60 60 120
710 800 -40 0 0 70 70 140

Similar products of CRBF 8022 AD crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
CRBF8022 AD T1 CRBF8022 AD T1 P6 CRBF8022 AD T1 P5 CRBF8022 AD T1 P4 CRBF8022 AD T1 P2
CRBF8022 AD C1 CRBF8022 AD C1 P6 CRBF8022 AD C1 P5 CRBF8022 AD C1 P4 CRBF8022 AD C1 P2
CRBF8022 AD C2 CRBF8022 AD C2 P6 CRBF8022 AD C2 P5 CRBF8022 AD C2 P4 CRBF8022 AD C2 P2
CRBF8022 AD UU T1 CRBF8022 AD UU T1 P6 CRBF8022 AD UU T1 P5 CRBF8022 AD UU T1 P4 CRBF8022 AD UU T1 P2
CRBF8022 AD UU C1 CRBF8022 AD UU C1 P6 CRBF8022 AD UU C1 P5 CRBF8022 AD UU C1 P4 CRBF8022 AD UU C1 P2
CRBF8022 AD UU C2 CRBF8022 AD UU C2 P6 CRBF8022 AD UU C2 P5 CRBF8022 AD UU C2 P4 CRBF8022 AD UU C2 P2
CRBF8022 AD UD T1 CRBF8022 AD UD T1 P6 CRBF8022 AD UD T1 P5 CRBF8022 AD UD T1 P4 CRBF8022 AD UD T1 P2
CRBF8022 AD UD C1 CRBF8022 AD UD C1 P6 CRBF8022 AD UD C1 P5 CRBF8022 AD UD C1 P4 CRBF8022 AD UD C1 P2
CRBF8022 AD UD C2 CRBF8022 AD UD C2 P6 CRBF8022 AD UD C2 P5 CRBF8022 AD UD C2 P4 CRBF8022 AD UD C2 P2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

CRBF 8022 AD IKO CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing CRBF 8022 AD

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post CRBF 8022 AD CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> CRBF 8022 A CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/crbf-8022-a-crossed-roller-bearing/ Wed, 18 Jan 2023 02:16:37 +0000 https://www.cross-roller-bearing.com/?post_type=product&p=3530 Bearing No. Boundary dim.（mm） Basic loading rates(N) Abutment and fillet dim.(mm) Weight d D B.T rmin doh C Co da Da kg CRBF8022 A 80 165 22 0.6 1 51100 72000 107 137 2.6

The post CRBF 8022 A CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

CRBF 8022 A crossed roller bearing specification

  1. Model Code: CRBF…A series is mounting holed type high rigidity of crossed roller bearing with separator.
  2. Outer Diameter: 165 (unit: mm).
  3. Bore Diameter:   80 (unit: mm).
  4. Width: 22 (unit: mm).
  5. Weight: 2.6 KG
  6. Mounting Holes: (a)Inner rings/PCD 97mm,mounting holes 10-φ5.5 through φ9.5 counter bore depth 5.4mm. (b)Outer rings/PCD 148mm,mounting holes 10-φ5.5 through φ9.5 counter bore depth 5.4mm.
  7. Seal Symbol: No symbol signifies the open type without seals.( UU signifies seals on both sides. U signifies seal on one side.UD signifies seal on one side  in the opposite direction to counter bored mounting holes on outer ring.)
  8. Axial internal clearance: T1,C1,C2
  9. Accuracy class: Including P6,P5, P4, P2

Radial internal clearance

Nominal bore diameter of bearing(mm) T1(μm) C1(μm) C2(μm)
over incl. Min. Max. Min. Max. Min. Max.
– 30 -10 0 0 10 10 20
30 40 -10 0 0 10 10 20
40 50 -10 0 0 10 10 25
50 65 -10 0 0 10 10 25
65 50 -10 0 0 15 15 30
80 100 -10 0 0 15 15 35
100 120 -15 0 0 15 15 35
120 140 -15 0 0 20 20 45
140 160 -15 0 0 20 20 50
160 200 -15 0 0 20 20 50
200 215 -20 0 0 25 25 60
250 315 -20 0 0 25 25 60
315 400 -25 0 0 30 30 70
400 500 -30 0 0 40 40 85
500 630 -30 0 0 50 50 100
630 710 -30 0 0 60 60 120
710 800 -40 0 0 70 70 140

Similar products of CRBF 8022 A crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
CRBF8022 A T1 CRBF8022 A T1 P6 CRBF8022 A T1 P5 CRBF8022 A T1 P4 CRBF8022 A T1 P2
CRBF8022 A C1 CRBF8022 A C1 P6 CRBF8022 A C1 P5 CRBF8022 A C1 P4 CRBF8022 A C1 P2
CRBF8022 A C2 CRBF8022 A C2 P6 CRBF8022 A C2 P5 CRBF8022 A C2 P4 CRBF8022 A C2 P2
CRBF8022 A UU T1 CRBF8022 A UU T1 P6 CRBF8022 A UU T1 P5 CRBF8022 A UU T1 P4 CRBF8022 A UU T1 P2
CRBF8022 A UU C1 CRBF8022 A UU C1 P6 CRBF8022 A UU C1 P5 CRBF8022 A UU C1 P4 CRBF8022 A UU C1 P2
CRBF8022 A UU C2 CRBF8022 A UU C2 P6 CRBF8022 A UU C2 P5 CRBF8022 A UU C2 P4 CRBF8022 A UU C2 P2
CRBF8022 A UD T1 CRBF8022 A UD T1 P6 CRBF8022 A UD T1 P5 CRBF8022 A UD T1 P4 CRBF8022 A UD T1 P2
CRBF8022 A UD C1 CRBF8022 A UD C1 P6 CRBF8022 A UD C1 P5 CRBF8022 A UD C1 P4 CRBF8022 A UD C1 P2
CRBF8022 A UD C2 CRBF8022 A UD C2 P6 CRBF8022 A UD C2 P5 CRBF8022 A UD C2 P4 CRBF8022 A UD C2 P2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

CRBF 8022 A IKO CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing CRBF 8022 A

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post CRBF 8022 A CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> CRBF 8022 AT CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/crbf-8022-at-crossed-roller-bearing/ Wed, 18 Jan 2023 02:13:13 +0000 https://www.cross-roller-bearing.com/?post_type=product&p=3529 Bearing No. Boundary dim.（mm） Basic loading rates(N) Abutment and fillet dim.(mm) Weight d D B.T rmin doh C Co da Da kg CRBF8022 AT 80 165 22 0.6 1 51100 72000 107 137 2.63

The post CRBF 8022 AT CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

CRBF 8022 AT crossed roller bearing specification

  1. Model Code: CRBF…A series is mounting holed type high rigidity of crossed roller bearing with separator.
  2. Outer Diameter: 165 (unit: mm).
  3. Bore Diameter:   80 (unit: mm).
  4. Width: 22 (unit: mm).
  5. Weight: 2.63 KG
  6. Mounting Holes: (a)Inner rings/PCD 97mm,mounting holes 10-M5 through. (b)Outer rings/PCD 148mm,mounting holes 10-φ5.5 through φ9.5 counter bore depth 5.4mm.
  7. Seal Symbol: No symbol signifies the open type without seals.( UU signifies seals on both sides. U signifies seal on one side.UD signifies seal on one side  in the opposite direction to counter bored mounting holes on outer ring.)
  8. Axial internal clearance: T1,C1,C2
  9. Accuracy class: Including P6,P5, P4, P2

Radial internal clearance

Nominal bore diameter of bearing(mm) T1(μm) C1(μm) C2(μm)
over incl. Min. Max. Min. Max. Min. Max.
– 30 -10 0 0 10 10 20
30 40 -10 0 0 10 10 20
40 50 -10 0 0 10 10 25
50 65 -10 0 0 10 10 25
65 50 -10 0 0 15 15 30
80 100 -10 0 0 15 15 35
100 120 -15 0 0 15 15 35
120 140 -15 0 0 20 20 45
140 160 -15 0 0 20 20 50
160 200 -15 0 0 20 20 50
200 215 -20 0 0 25 25 60
250 315 -20 0 0 25 25 60
315 400 -25 0 0 30 30 70
400 500 -30 0 0 40 40 85
500 630 -30 0 0 50 50 100
630 710 -30 0 0 60 60 120
710 800 -40 0 0 70 70 140

Similar products of CRBF 8022 AT crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
CRBF8022 AT T1 CRBF8022 AT T1 P6 CRBF8022 AT T1 P5 CRBF8022 AT T1 P4 CRBF8022 AT T1 P2
CRBF8022 AT C1 CRBF8022 AT C1 P6 CRBF8022 AT C1 P5 CRBF8022 AT C1 P4 CRBF8022 AT C1 P2
CRBF8022 AT C2 CRBF8022 AT C2 P6 CRBF8022 AT C2 P5 CRBF8022 AT C2 P4 CRBF8022 AT C2 P2
CRBF8022 AT UU T1 CRBF8022 AT UU T1 P6 CRBF8022 AT UU T1 P5 CRBF8022 AT UU T1 P4 CRBF8022 AT UU T1 P2
CRBF8022 AT UU C1 CRBF8022 AT UU C1 P6 CRBF8022 AT UU C1 P5 CRBF8022 AT UU C1 P4 CRBF8022 AT UU C1 P2
CRBF8022 AT UU C2 CRBF8022 AT UU C2 P6 CRBF8022 AT UU C2 P5 CRBF8022 AT UU C2 P4 CRBF8022 AT UU C2 P2
CRBF8022 AT UD T1 CRBF8022 AT UD T1 P6 CRBF8022 AT UD T1 P5 CRBF8022 AT UD T1 P4 CRBF8022 AT UD T1 P2
CRBF8022 AT UD C1 CRBF8022 AT UD C1 P6 CRBF8022 AT UD C1 P5 CRBF8022 AT UD C1 P4 CRBF8022 AT UD C1 P2
CRBF8022 AT UD C2 CRBF8022 AT UD C2 P6 CRBF8022 AT UD C2 P5 CRBF8022 AT UD C2 P4 CRBF8022 AT UD C2 P2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

CRBF 8022 AT IKO CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing CRBF 8022 AT

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post CRBF 8022 AT CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> CRBF 5515 AT CROSSED ROLLER BEARING https://www.cross-roller-bearing.com/product/crbf-5515-at-crossed-roller-bearing/ Wed, 18 Jan 2023 02:06:22 +0000 https://www.cross-roller-bearing.com/?post_type=product&p=3528 Bearing No. Boundary dim.（mm） Basic loading rates(N) Abutment and fillet dim.(mm) Weight d D B.T rmin doh C Co da Da kg CRBF5515 AT 55 120 15 0.6 0.6 20100 27700 76 94 0.96

The post CRBF 5515 AT CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]> As a professional manufacturer of crossed roller bearing, we are committed to providing customers with high-quality products and perfect technical support.

CRBF 5515 AT crossed roller bearing specification

  1. Model Code: CRBF…A series is mounting holed type high rigidity of crossed roller bearing with separator.
  2. Outer Diameter: 120 (unit: mm).
  3. Bore Diameter:   55(unit: mm).
  4. Width: 15 (unit: mm).
  5. Weight: 0.96 KG
  6. Mounting Holes: (a)Inner rings/PCD 65mm,mounting holes 8-M5 through. (b)Outer rings/PCD 105mm,mounting holes 8-φ5.5 through φ9.5 counter bore depth 5.4mm.
  7. Seal Symbol: No symbol signifies the open type without seals.( UU signifies seals on both sides. U signifies seal on one side.UD signifies seal on one side  in the opposite direction to counter bored mounting holes on outer ring.)
  8. Axial internal clearance: T1,C1,C2
  9. Accuracy class: Including P6,P5, P4, P2

Radial internal clearance

Nominal bore diameter of bearing(mm) T1(μm) C1(μm) C2(μm)
over incl. Min. Max. Min. Max. Min. Max.
– 30 -10 0 0 10 10 20
30 40 -10 0 0 10 10 20
40 50 -10 0 0 10 10 25
50 65 -10 0 0 10 10 25
65 50 -10 0 0 15 15 30
80 100 -10 0 0 15 15 35
100 120 -15 0 0 15 15 35
120 140 -15 0 0 20 20 45
140 160 -15 0 0 20 20 50
160 200 -15 0 0 20 20 50
200 215 -20 0 0 25 25 60
250 315 -20 0 0 25 25 60
315 400 -25 0 0 30 30 70
400 500 -30 0 0 40 40 85
500 630 -30 0 0 50 50 100
630 710 -30 0 0 60 60 120
710 800 -40 0 0 70 70 140

Similar products of CRBF 5515 AT crossed roller bearing

Bearing No. Bearing No. Bearing No. Bearing No. Bearing No.
CRBF5515 AT T1 CRBF5515 AT T1 P6 CRBF5515 AT T1 P5 CRBF5515 AT T1 P4 CRBF5515 AT T1 P2
CRBF5515 AT C1 CRBF5515 AT C1 P6 CRBF5515 AT C1 P5 CRBF5515 AT C1 P4 CRBF5515 AT C1 P2
CRBF5515 AT C2 CRBF5515 AT C2 P6 CRBF5515 AT C2 P5 CRBF5515 AT C2 P4 CRBF5515 AT C2 P2
CRBF5515 AT UU T1 CRBF5515 AT UU T1 P6 CRBF5515 AT UU T1 P5 CRBF5515 AT UU T1 P4 CRBF5515 AT UU T1 P2
CRBF5515 AT UU C1 CRBF5515 AT UU C1 P6 CRBF5515 AT UU C1 P5 CRBF5515 AT UU C1 P4 CRBF5515 AT UU C1 P2
CRBF5515 AT UU C2 CRBF5515 AT UU C2 P6 CRBF5515 AT UU C2 P5 CRBF5515 AT UU C2 P4 CRBF5515 AT UU C2 P2
CRBF5515 AT UD T1 CRBF5515 AT UD T1 P6 CRBF5515 AT UD T1 P5 CRBF5515 AT UD T1 P4 CRBF5515 AT UD T1 P2
CRBF5515 AT UD C1 CRBF5515 AT UD C1 P6 CRBF5515 AT UD C1 P5 CRBF5515 AT UD C1 P4 CRBF5515 AT UD C1 P2
CRBF5515 AT UD C2 CRBF5515 AT UD C2 P6 CRBF5515 AT UD C2 P5 CRBF5515 AT UD C2 P4 CRBF5515 AT UD C2 P2

How to ensure quality of  crossed roller bearing

–Advanced design

From the beginning of design stage, we make a modeling to design crossed roller bearing by advanced design software, then use method of finite element analysis to verify the results.

–Advanced equipment

Base on advanced equipment to ensure product quality, we possess advance processing equipment for key production process, for example, CNC machining center, CNC heat treatment equipment …etc.

–Reliable raw materials

The most important part of ensuring the product quality is raw materials manufacturing, therefore we choose the reliable raw materials to use for element of crossed roller bearing, such as bearing ring and roller etc, we also could provide customize crossed roller bearing with special material.

–Perfect management system

We established perfect management system so to ensure product quality, we passed to certificate ISO9001 quality management system as well as obtain ISO9001 certification, and carry out quality manufacture system strictly for whole process of production from beginning to the end.

–Perfect testing method

We organized a professional and strong testing and inspecting team with advanced test equipment by perfect testing method to guarantee product quality and set up special testing machine and test bed for crossed roller bearing.

CRBF 5515 AT IKO CROSSED ROLLER BEARING

Download : drawing of crossed roller bearing CRBF 5515 AT

If you need formal drawing , please contact with us

Contact information

Luoyang JCB Bearing Technology Company Limited

Company Address: No. 285, Fenghua Road, High-tech Development Zone, Luoyang Area, (Henan) Free Trade Zone of China.

Postal code : 471000

Phone : 0086-379-6861-1678 Fax : 0086-379-6861-1679

WhatsApp：+8618603795853

E-mail:   sales@jcb-bearing.com  

Reserved E-mail:  jcb-bearing@hotmail.com 

www.cross-roller-bearing.com

The post CRBF 5515 AT CROSSED ROLLER BEARING appeared first on CROSSED ROLLER BEARING.

]]>
